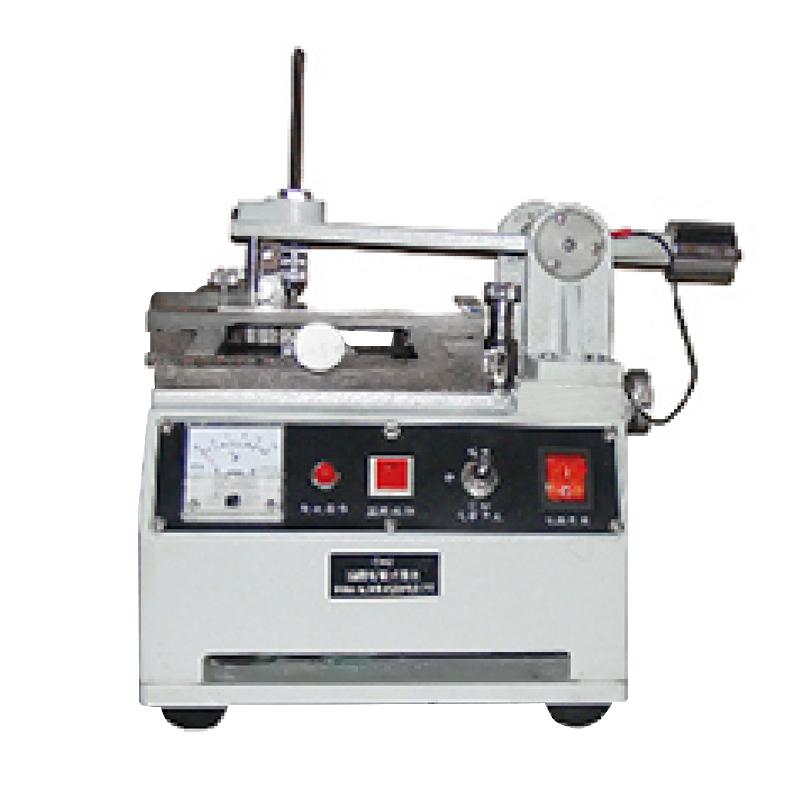

YONGLIDA QHZ film scratch test instrument, according to GB/T9279

Used to evaluate the penetration resistance of coatings, to help test the strength, hardness and adhesion of coatings. In line with GB/T9279 standards, with accurate load adjustment range (0~2000g) and stable scribing traverse speed, suitable for all kinds of Coatings performance evaluation.

$475.00/set

PromotionLoading...

Coupon

Model：

Certificate

YongLiDa

Manufacturer authorization

Contact

Details SPEC Con CAT

YongLiDa QHZ Film scratch test instrumentSPEC

YongLiDa QHZ Film scratch test instrumentDetails

YongLiDa QHZ Film scratch test instrumentPacking list

SKU: NB018169

Scribing needle length: 60mm

Scribing traverse speed: 20~40mm/s

Scribe steel ball diameter: 1mm

Load (loading) range: 0~2000g

Scribing needle and test template angle: 10~15°

minimum increment: 50g

Motor power: 15W

Power: 220V 50Hz

Overall Dimensions: 180*230*280mm

Instrument Weight: 10kg

QHZ

Film scratch test instrument

Introduction

QHZ Coating Film Scratch Tester is a satisfactory instrument used to evaluate the performance of coatings. That is, the strength, hardness, and adhesion of the coating are characterized by the penetration resistance of the paint film sample coating when it is scratched by a needle.

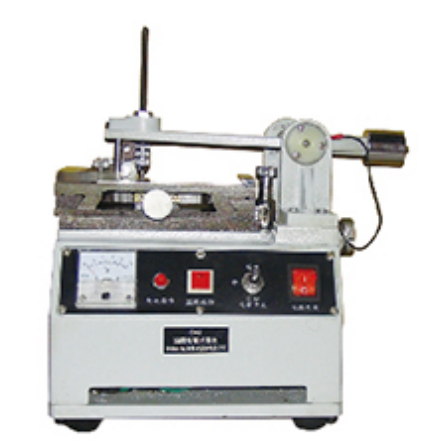

Yonglida QHZ Coating Film Scratch Tester

application standard

Comply with GB/T9279 standard.

FAQ

QI would like to ask about that scratch instrument. Is there one that conforms to the national standard GB/T 9279, 1-2015?

A This one is ok.

QWhat is the impact height of this Yonglida TCJ resilience impactor?

A Hello, the impact height is 0~ 100cm.

QWhat is the weight range of this film scratch tester?

A Hello, the range is 0~ 2000g.

QHelp me find a film scratch test instrument that meets GB/T15102 standard

A This QHZ film scratch test instrument is OK!
