PUSHEN YQH-500 Roller type WFT gauge, thickness measurement 50-450 μm

YQH-500

Wet-film Roller Thickness Gauge

Range 0~500μm, scale 25μm, shape roller type, material stainless steel, application standard GB/T 13452.2, ISO 2808.

YQH Roller Type Wet Film Thickness Gauge

Wet Film Thickness Proper coating thickness is important in coating operations.

Coatings that are too thick not only waste time and cost, but can lead to cracking of the coating during the coating curing process.

Coatings that are too thin will result in insufficient coverage of the substrate and it is necessary to measure the coating thickness while the coating is still wet.

Wet film thickness measurement is useful for substrates that can only be measured destructively.

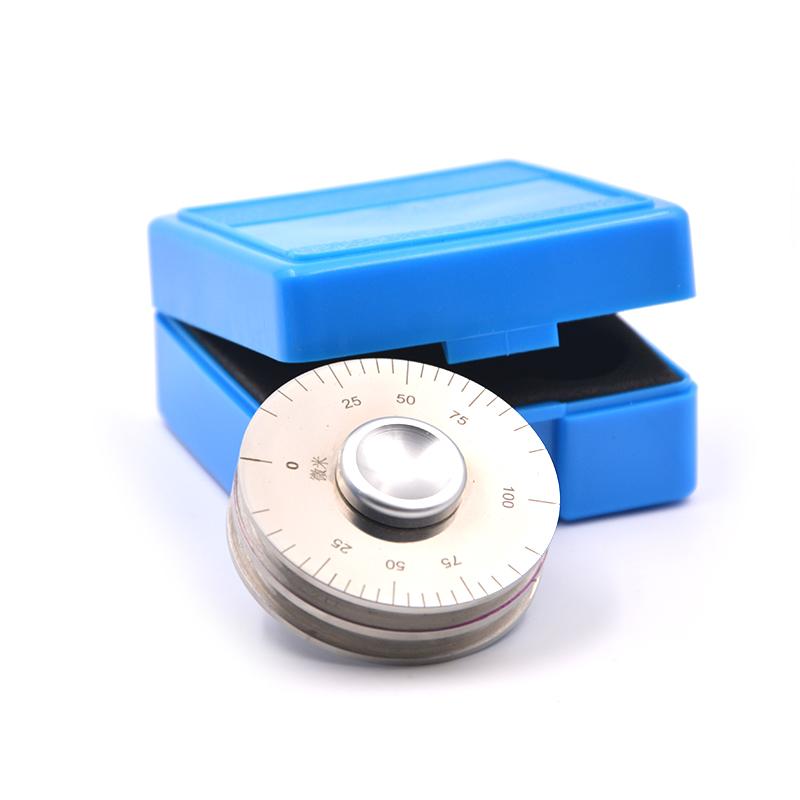

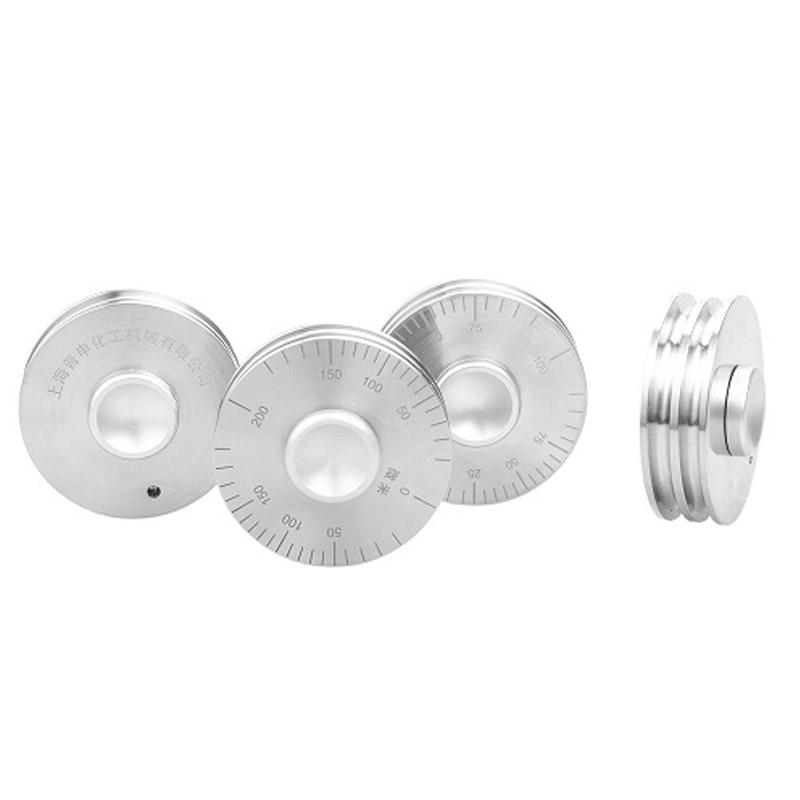

The wet film wheel is high-precision and easy to use. It consists of three wheels. The diameter of the center wheel is small, and the diameter of the two sides is larger.

Roll the wet film wheel along the wet film, the center wheel will always touch the film. The scale where the contact point is located is the wet film thickness.

Wet film wheels can be measured on both flat and curved surfaces.

Models

Standards

GB/T 13452.2

ISO 2808

Packing list：Wet film thickness gauge X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
