PUSHEN BY Combined Pencil Hardness Tester 500g/750g/1000g with Mitsubishi pencil

SE
500G/750g/1000g heavy load; 14 Mitsubishi pencils; in line with GB/T6739, ISO15184 standards.
$198.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Pushen BY Pencil Hardness TesterSPEC

Pushen BY Pencil Hardness TesterDetails

Pushen BY Pencil Hardness TesterPacking list

SKU
NB018193
Load
500g
Load
250g/500g
load error
±10g
Standard pencil
14 Mitsubishi UNI pencils
Applicable standard
GB/T 6739,ISO 15184
BY
Pencil Hardness Tester
500G/750g/1000g heavy load; 14 Mitsubishi pencils; in line with GB/T6739, ISO15184 standards.
PUSHEN BY Combined Pencil Hardness Tester 500g/750g/1000g with Mitsubishi pencil Picture

Introduction

Pencil hardness test, which uses graphite pencils with different hardness values to evaluate the hardness of the coating.

Sophisticated design ensures that the cylindrical lead remains at a constant 45° angle with constant pressure.

Two additional weights are included for three loads.

The minimum hardness value of the pencil that can leave marks on the coating determines the hardness level of the coating.

structure diagram

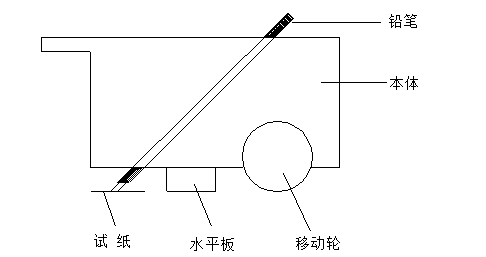

Structural diagram of Pushen PS 2673 combined pencil Hardness Tester


plan

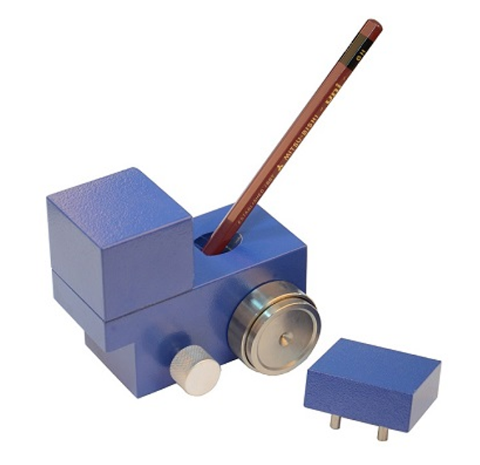

Pusheen PS 2673 Combined Pencil Hardness Tester

Standards

GB/T6739

ISO 15184

FAQ
QHardness meter, 1000g can measure 500 and 750g?
A The host itself loads 500g, the small weight 250g, and the large weight 500g.
QHow many hardness pencils does the BY Pencil hardness tester match?
A Hello, 12 sticks.
QI want to do a test about the ASTMD3794 standard. Is this combined Pencil hardness tester okay?
A Sure
QPencil hardness tester how to judge the test coating hardness is which value?
A Hello, the test hardness value of the Pencil hardness tester is just the former that does not pass the test pen. If H has no scratches, 2H has scratches, and the hardness of the test piece is H.
