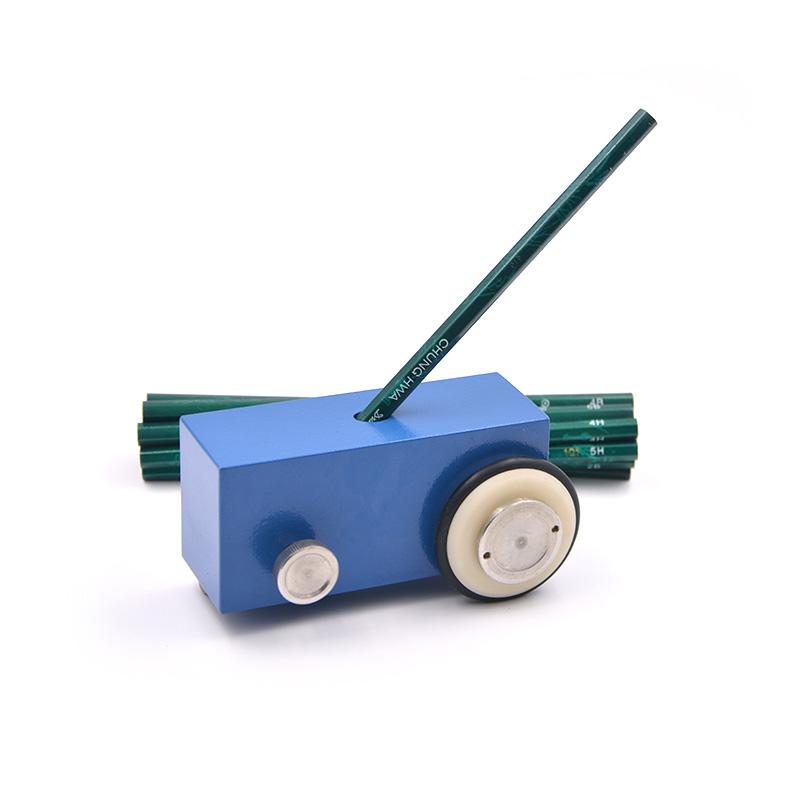

PUSHEN BY-500g Pencil Hardness Tester Load 500g

BY-500g

Pencil Hardness Tester

Load 500g, suitable for soft surface substrate coatings; in line with GB, ISO standards

Introduction

Pencil hardness test, which uses graphite pencils with different hardness values to evaluate the hardness of the coating.

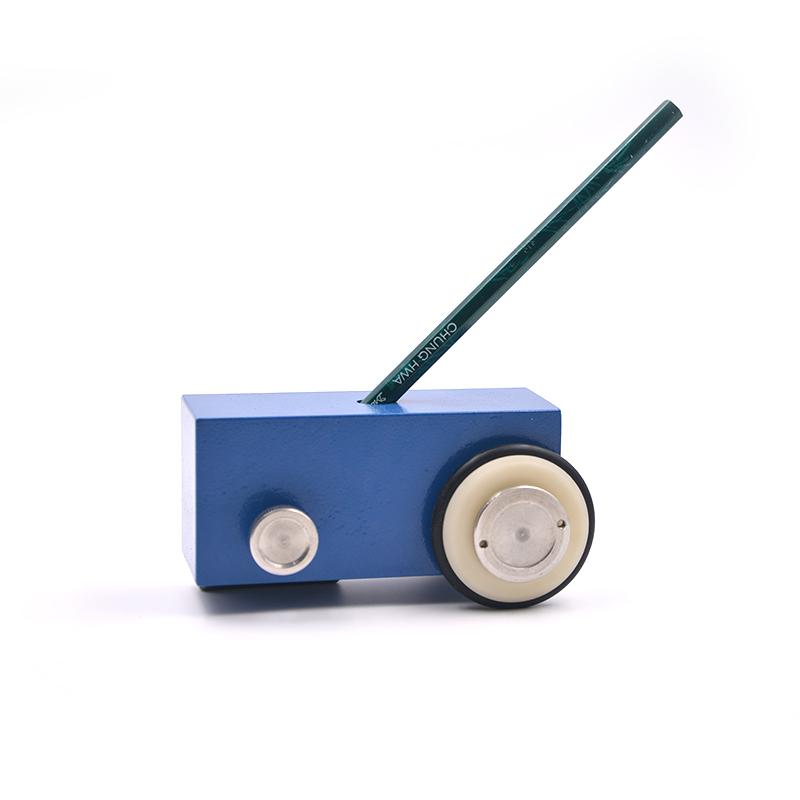

Sophisticated design ensures that the cylindrical lead remains at a constant 45° angle with constant pressure.

The minimum hardness value of the pencil that can leave marks on the coating determines the hardness level of the coating.

Standards

GB/T6739

ISO 15184

Instructions

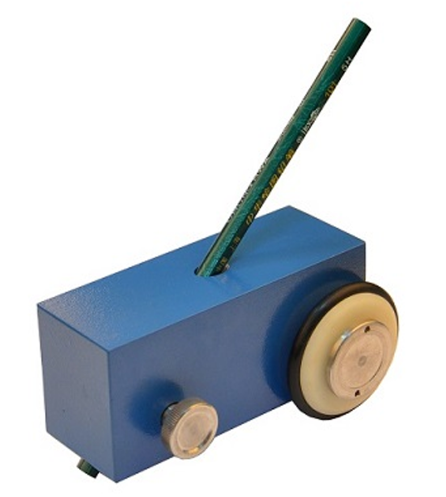

Insert the sharpened pencil into the inclined hole of the trolley, and tighten the fixing screws to keep the trolley basically level. Put the trolley on the prepared sample, pinch the center of the wheel with two fingers, push it forward at a speed of 0.5mm/s, make the tip of the pen scratch the surface of the coating film, and judge the hardness of the coating film according to pencils of different hardness. The specific judgment method is carried out according to the provisions of the GB/T6739-2006 standard.

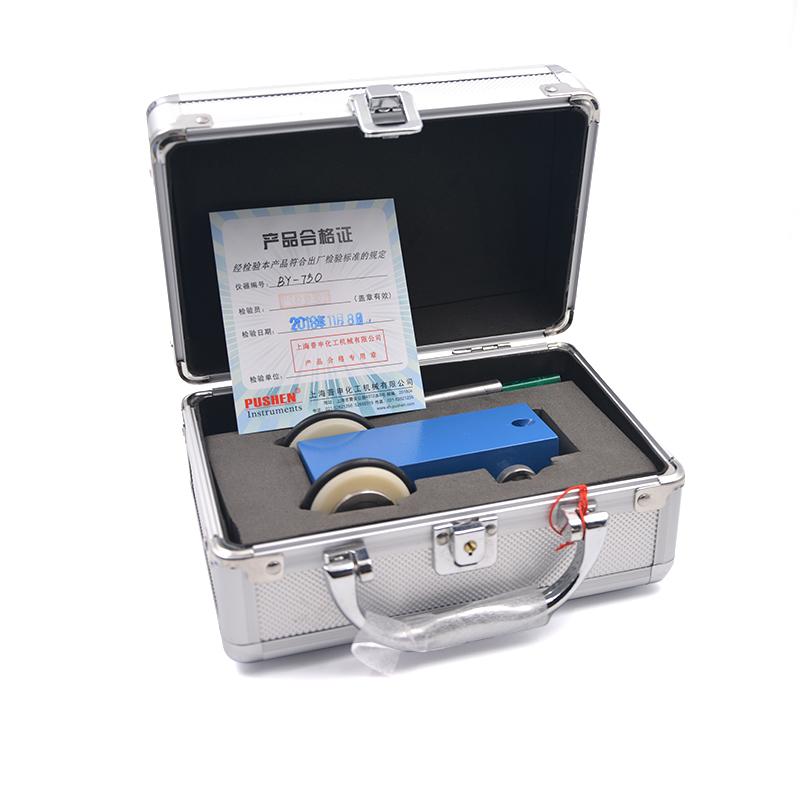

Packing list：Pencil hardness tester X1, Chinese pencil X13, equilibrating pad X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
