PUSHEN QBJ automatic cupping instrument, Striker Diameter 20mm

SE
Digital display, no need to zero steel plate, with 10 times magnifying glass, can measure 1.25mm thick plate, in line with GB, ISO standards.
$1330.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

Pushen QBJ Automatic cupping deviceSPEC

Pushen QBJ Automatic cupping deviceDetails

Pushen QBJ Automatic cupping devicePacking list

SKU
NB018202
input Voltage
220V AC 50HZ
Striker Diameter
F20mm
Maximum depth of indentation
14mm
Digital display resolution
0.01mm
indentation Accuracy
±0.05mm
Film thickness
d = 0.30-1.25mm
Test board size
70mm
Overall Dimensions
230*360*430mm
Shipment Weight
35kg
QBJ
Automatic cupping device
Digital display, no need to zero steel plate, with 10 times magnifying glass, can measure 1.25mm thick plate, in line with GB, ISO standards.

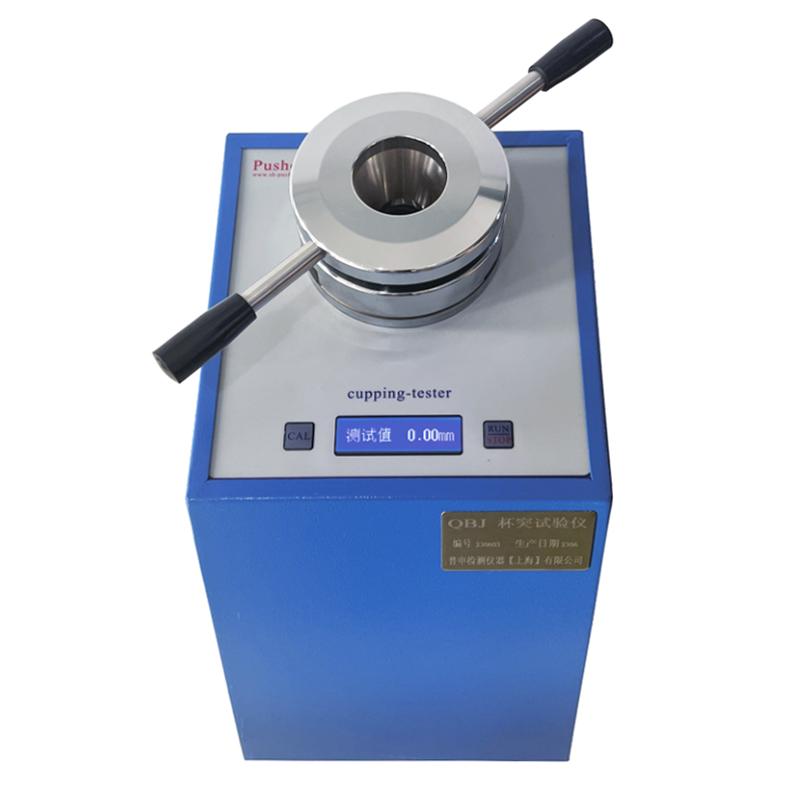

PUSHEN QBJ automatic cupping instrument, Striker Diameter 20mm Picture

Introduction

For detecting the spread and damage of single and multi-coats on substrates.

Motor driven punches are extremely reproducible.

There is no need to adjust the steel plate to zero, and it will automatically return to zero after the test without accumulative error.

Using high-precision position sensor, the indentation accuracy can reach 0.01mm.

Comes with a 10x magnifying glass with light required by the standard, which is convenient for observing and judging the experimental results.

The maximum test plate thickness of 1.25mm can be measured.

Digital display, all functions are controlled by 2 buttons.

Pusheen PS 2705 QBJ Automatic Cupping Tester

Standards

GB/T9753

ISO 1520

FAQ
QWhat are the advantages of this automatic cupping machine?
A It is easy to operate, two buttons control all functions, no need to zero steel plate, automatic zero after the test to avoid errors, but also with 10 times with light magnifying glass for easy observation, especially suitable for daily quality control.
QDo you have an automatic cupping tester? Is this Pushen's Cupping tester?
A Hello, yes, this Pushen QBJ is an automatic cupping instrument.
QPushen QBJ automatic cupping instrument can test the sample Film thickness?
A Hello, the maximum thickness of the sample plate can be measured at 1.25mm.
QThe ductility test of the film when the substrate is deformed is to use this kind of instrument, right?
A Yes!
QCan all automatic cupping machines be used for inspection in the GB/T9753 standard?
A Not necessarily, but this QBJ automatic cupping instrument can be considered.
