Elcometer 280 D280-S-KIT Pulse DC Holiday Detector Inspection Kit

D280-S-KIT

Pulse DC Holiday Detector Kit

Introduction

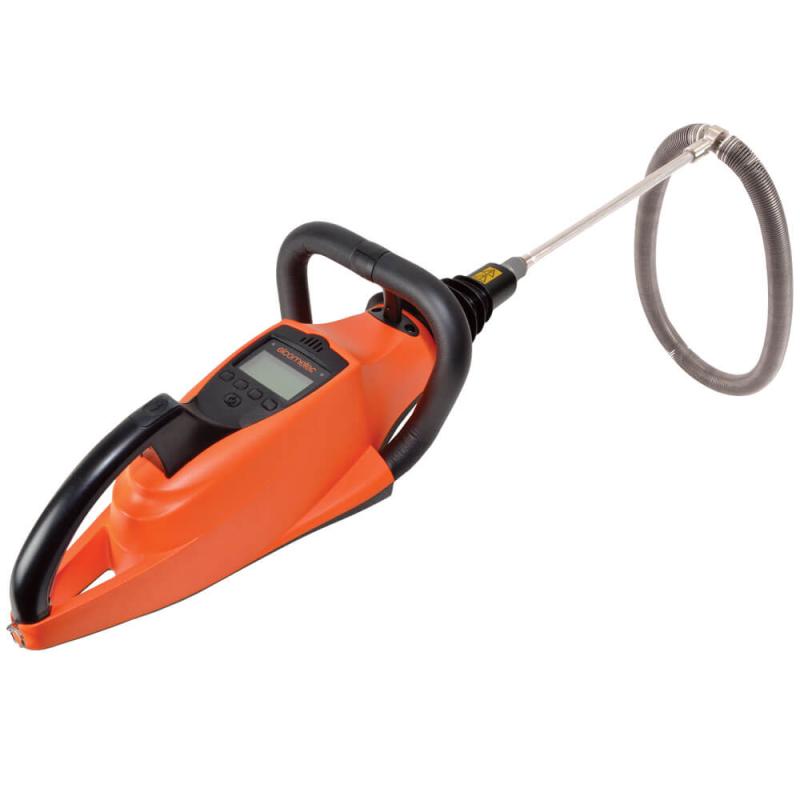

The Elcometer 280 is a "handle type" spark Detector designed to make pulsed DC high Voltage spark detection safer, more convenient and more reliable than ever before.

The Elcometer 280 utilizes specialized electronics technology to detect coatings without the need to connect ground wires to the component substrate - ideal for inspecting large surfaces and pipes.

The Elcometer 280 uses high-Voltage pulsed DC technology to detect coating pores - even if the coating is wet, dirty or slightly conductive.

The Elcometer 280 sets the standard for safety in high Voltage detection - a two-stage safety switch; bright LED display and on-screen icon display when high Voltage is activated; and extended coil threads to protect the user from sparks.

Users can use a variety of probe accessories to detect porosity/pinholes in coatings up to 25mm thick.

The rugged, shockproof and waterproof design can be used even in harsh environments.

Features

• When a pore is detected, the display will flash, the LED indicator will light up, and an alarm will sound with adjustable volume.

• 0.5-35kV range (user selectable) to detect coating pores, with measured thickness up to 25mm (1")

• Once the safety switch in the handle is released, the power supply will be cut off

• Rugged, shockproof and waterproof design ensures long service life – even in harsh environments

• The balanced design is ergonomic and comes with a shoulder strap for long-lasting use.

• A wide range of interchangeable probe accessories available – compatible with all models of Elcometer spark leak Detectors

• Ideal for inspecting clean, wet, dirty or slightly conductive coatings

• Voltage calculator automatically sets the correct Voltage based on coating thickness value (Advanced model only)

• Internal Voltage verification device ensures that the selected Voltage is the test Voltage

Structural advantages

☆ Glue-hanging auxiliary handle: Conducive to better control and balance during the inspection process.

☆  Large waterproof buttons : easy to use - no need to wear gloves.

☆  High Voltage On/Off : Separate button minimizes the risk of accidental power-on.

☆  Clear backlight LCD display : All relevant information can be displayed even in dark conditions.

☆  Shoulder strap hole : quickly clip on the shoulder strap.

☆  Specially made extended coil thread : Designed to comply with EN61010 standards, the thread provides additional protection for users.

☆  Integrated safety trigger switch : If released, turns off the high Voltage.

☆  Ground feedback wire socket : 1/4 turn lock/unlock function to ensure it does not fall off during use.

☆  Easy to disassemble battery pack : Fully charged in 4 hours, capable of continuous use for more than 30 hours.

Standards compliant

AS 3894.1, ANSI/AWWA C203, ANSI/AWWA C214, ASTM D4787, ASTM D5162, ISO 2746, ISO 29601, JIS G 3491, JIS G 3492, NACE RP0274, NACE SP0188, NACE SP0490, NACE TM0186, NACE TM0384.

plan

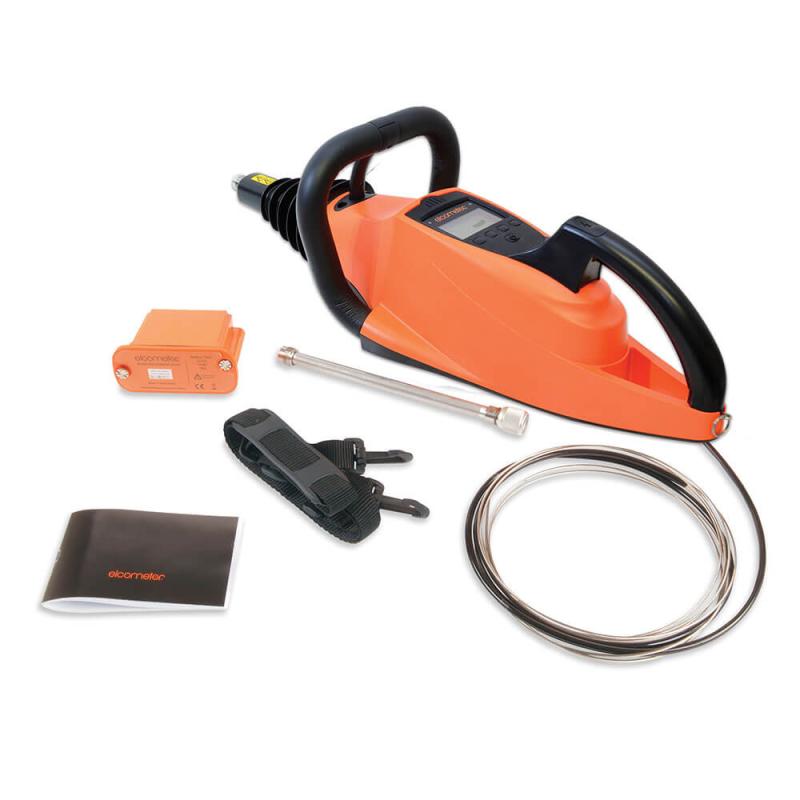

Packing list：ELCOMETER 280 Pulse DC Holiday Detector Detection Kit Host x1, 5m (16 ') signal feedback cable x1, battery pack x1, battery charger x1 (with UK, European, US and Australian plugs), 250mm probe extension shaft x1, shoulder strap x1, operation manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
