Defelsko PRB200B Ultrasonic Thickness Gauge Probe PosiTector200B

SE
The Defelsko PRB200B ultrasonic Coating Thickness Gauge probe is dedicated to the PosiTector200B ultrasonic Coating Thickness Gauge, PRB200B is used for the measurement of single polymer Coating thickness such as wood and plastic, with a range of 13~ 1000μm and an accuracy of +/- 3%.
$2504.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI

Defelsko PRB200B Coating Thickness Gauge probeSPEC

Defelsko PRB200B Coating Thickness Gauge probeDetails

Defelsko PRB200B Coating Thickness Gauge probePacking list

SKU
NB018241
Measurement principle
ultrasound
Measurement range
13~1000μm
margin of error
±3%
application
Wood, plastic and other polymer coatings
PRB200B
Coating Thickness Gauge probe
Defelsko PRB200B Ultrasonic Thickness Gauge Probe PosiTector200B Picture

Introduction

The Defelsko PRB200B-C Ultrasonic Coating Thickness Gauge Probe is a companion probe to the PosiTector 200B Ultrasonic Coating Thickness Gauge for measuring the thickness of polymeric coatings on wood and plastics.The measurement thickness range of PRB200B-C is 13~1000μm, and the accuracy is ± (2μm+3%).

Probe Dimension Drawing

Dimension drawing of the Defelsko PRB200B-C Ultrasonic Coating Thickness Gauge probe in the United States

Pictures

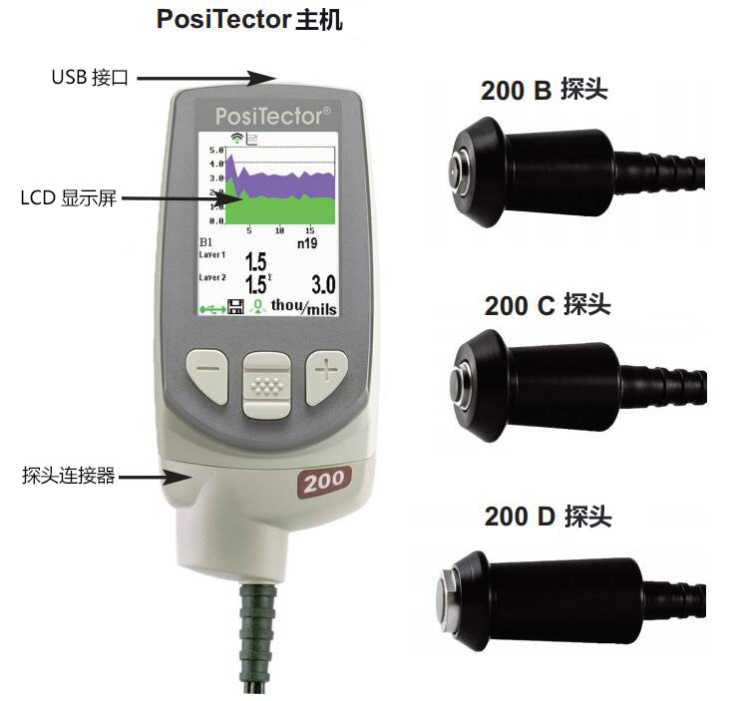

Defelsko PRB200B-C Ultrasonic Coating Thickness Gauge probe

Application diagram

Defelsko PRB200B-C ultrasonic Thickness Gauge transducer with main unit test chart


PosiTector 200 Models Selection

PRB200B

PRB200C

PRB200D

200 B200 C200 D
applyapplyapply
Polymer coatings such as wood, plastic, etcconcrete, fiberglass and other coatingsThick and soft coatings such as polyurea, bituminous neoprene, very thick polymers
Measuring rangeMeasuring rangeMeasuring range
13~1000μm50~3800μm50~7600μm
accuracyaccuracyaccuracy
± (2 μm + 3% of reading)± (2 μm + 3% of reading)± (20 μm + 3% of reading)
Certified thickness standardsCertified thickness standardsCertified thickness standards
STDA3STDP6STDP1
FAQ
QSubstrate is mainly copper; Miscellaneous materials are also available, such as FR4 fiberglass, steel, and even compositions with copper wiring and fiberglass; FR4 fiberglass is Non-metallic Inks type: epoxy resin Inks thickness: 5-100μm Accuracy requirements: +/- 2μm Size of inks area: 2 * 2mm-7 * 7mm
A You can use Defelsko's host + 2 probes, a 6000 series magnetic Induction eddy current dual-function probe, and a probe to test the principle of non-metallic substrate ultrasound
