Defelsko STDA3 calibrated coating metal plate PosiTector100/200

Defelsko STDA3 calibrated coating metal plate is coated with epoxy Resin on aluminum, suitable for PosiTector 100/200 probe calibrating, the thickness of STDA3 coated metal plate is 75μm, 125μm, 250μm, 500μm respectively.
Model：
Certificate
Contact
Details SPEC

Defelsko STDA3 Calibrated coating metal sheetSPEC

Defelsko STDA3 Calibrated coating metal sheetDetails

Defelsko STDA3 Calibrated coating metal sheetPacking list

SKU
NB018260
compatible model
PosiTector 100B、200、200B
Thickness - Block 1
75μm（3mils）
Thickness - Block 2
125μm（5mils）
Thickness - Block 3
250μm（10mils）
Thickness - Block 4
500μm（20mils）
margin of error
±0.43μm；±0.017mils
Coatings/Substrates
(Nonmagnetic) Resin on Aluminium
STDA3
Calibrated coating metal sheet

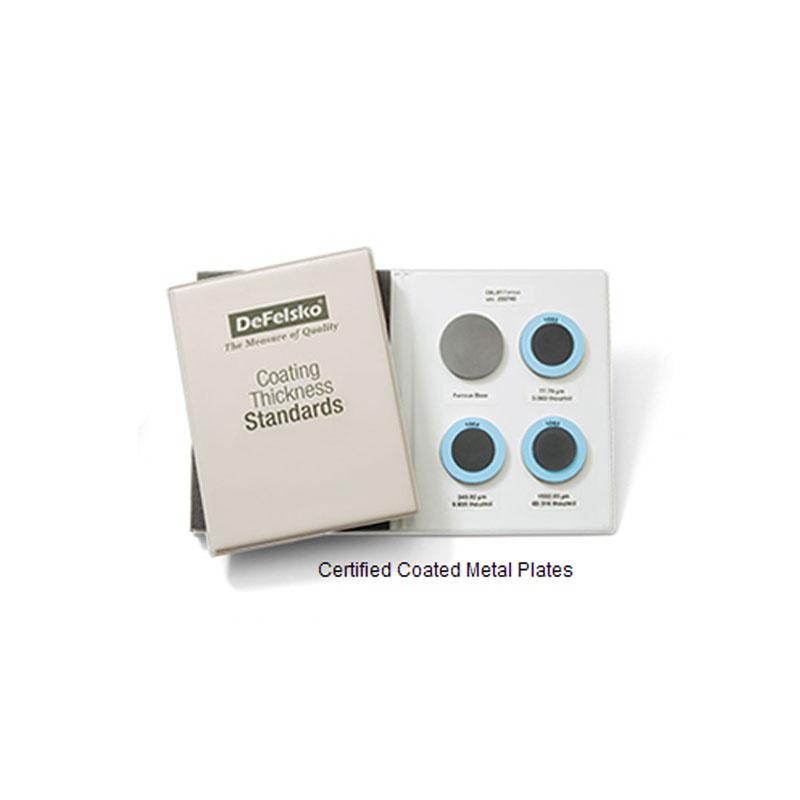

Defelsko STDA3 calibrated coating metal plate PosiTector100/200 Picture

Introduction

STDA calibrated coated sheet metal is a non-magnetic aluminum coated with an epoxy-based resin coating.

Certified sheet metal is an excellent choice for verifying the accuracy and operation of coating Thickness Gauges, and is an important part of meeting ISO and internal quality control requirements.

Many organizations require that the accuracy of the gauge be verified at the test site every time the coating Thickness Gauge is put into use, and frequently during use. DeFelsko-certified coating thickness standards with measurements traceable to national metrology institutes are ideal for this purpose.

Features

  • Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy current or ultrasonic coating Thickness Gauge

  • Suitable for calibration labs, on-site or factory floors.

  • Standards with steel or aluminum substrates consist of 4 plates mounted in a protective adhesive.

  • The polystyrene thickness standard is supplied by a sturdy acrylic storage box in 4 blocks.

  • Serialized separately to trace back to NIST or PTB - calibration certificate included.

  • Both metric and imperial units are certified and marked.

  • The zero plate can be used for certified coated metal sheets and certified polystyrene blocks.

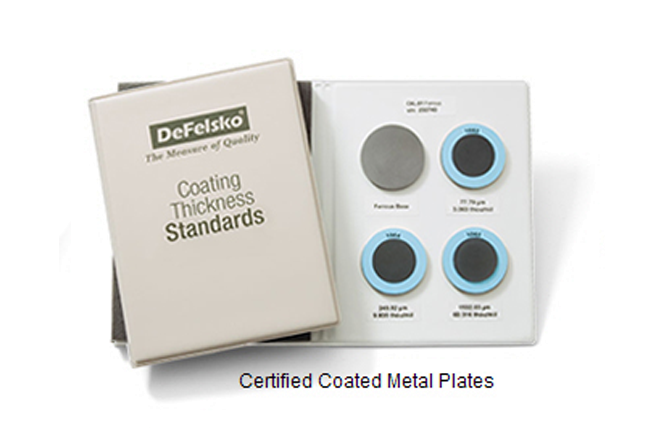

Defelsko STDA3 calibrated coated metal sheet

Calibrate the coated sheet metal series model chart

Calibrate the coated sheet metal model chart
