PHYNIX Surfix EX-FN Integrated Coating Thickness Gauge magnetic Induction + eddy Current

PHYNIX Phoenix Film Thickness Gauge Surfix EX-FN is a magnetic Induction and eddy Current dual function integrated Coating Thickness Gauge, Surfix EX-FN Coating Thickness Gauge thickness range 0~1500μm.
Contact
Details SPEC CAT

PHYNIX Surfix EX-FN Coating Thickness GaugeSPEC

PHYNIX Surfix EX-FN Coating Thickness GaugeDetails

PHYNIX Surfix EX-FN Coating Thickness GaugePacking list

SKU
NB018261
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~1500μm
margin of error
±1%
Resolution
0.1μm
probe
1.5Mm FN standard probe
Probe contact temperature
-15~50℃
Probe material
Tungsten carbide
Calibrated mode
Working calibrated, zero calibrated, single foil calibrated; zero offset
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
Interface
USB2.0
Data storage
2000 Measured values
Standards
DIN，ISO，ASTM，BS
system language
English, German, French, Italian, Spanish, Turkish, Czech and Chinese
Display screen
High resolution color display
Operating temperature
0~50℃
Protection level
IP52
Machine Weight
205g
Machine size
137*66*23mm
Surfix EX-FN
Coating Thickness Gauge

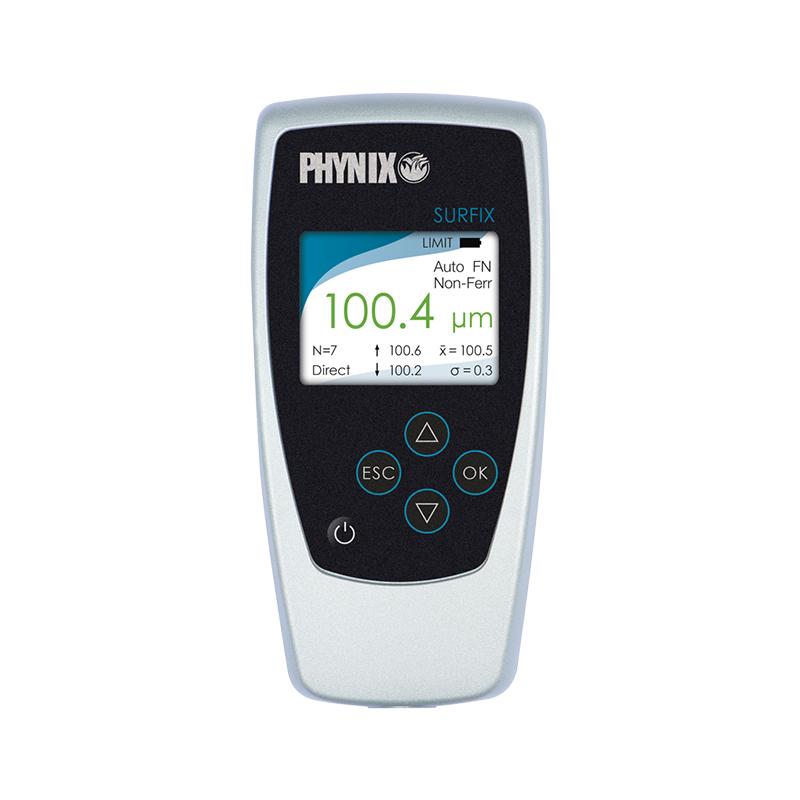

PHYNIX Surfix EX-FN Integrated Coating Thickness Gauge magnetic Induction + eddy Current Picture

PHYNIX Surfix Series Coating Thickness Gauges from Phoenix, Germany

The new PHYNIX instrument is best equipped with a beautiful color display, better content display, and multiple languages. The current version is available in English, German, French, Italian, Spanish, Turkish, Czech and Chinese.

The memory of this series has also been improved compared to the Surfix series, which can store up to 2.000 measured values. The link to the computer is very simple and is via USB2.0. PHYNIX.connect. It is a data transfer program that is compatible with all Windows systems and allows data to be easily imported into Excel. There are two products in this series: The Surfix® SX can be connected to all PHYNIX probes, ensuring maximum flexibility and allowing the instrument to meet a wide range of measurement tasks. The Surfix® EX is equipped with a fixed standard probe for mission-specific measurements. Compared to the Surfix® SX, which is equipped with a removable probe, it is easier to handle and more economical.

All of our measuring probes are equipped with a carbide highly wear-resistant tip and therefore have an almost unlimited service life.

Series classification

Series differentiationSurfix®SXSurfix®EX
specificationFor connection of replaceable individual probes (probes sold separately)Externally fixed probes
Measuring rangeDepends on the probe0 -   1,500μm
accuracyDepends on the probe+/- (1 μm + 1% of reading)
resolution0.1 μm or <0.2% of reading (using standard probes)0.1 μm or <0.2% of reading (using standard probes)
Calibration methodWorking calibration, zero calibration, single foil calibration; Zero offsetWorking calibration, zero calibration, single foil calibration; Zero offset
statisticsThe number of measurements, the mean, the standard deviation, the minimum and maximum measurementsThe number of measurements, the mean, the standard deviation, the minimum and maximum measurements
memoryMaximum 2000 readingsMaximum 2000 readings
Data transmissionUSB 2.0USB 2.0
displayHigh-resolution color displayHigh-resolution color display
Operating temperature0 °C to +50 °C0 °C to +50 °C
Surface temperature-15°C to +60°C (standard)-15°C to +60°C (standard)
remark-15°C to +150°C or 300°C (optional high temperature foot)-15°C to +150°C or 300°C (optional high temperature foot)
Size gauges137mmx   66mmx 23mm137mmx   66mmx 23mm
weight205g (including FN 1.5 probe and battery)205g (including FN 1.5 probe and battery)
Degree of protectionIP 52 (dust and drip resistant)IP 52 (dust and drip resistant)
standardDIN，ISO，ASTM，BSDIN，ISO，ASTM，BS

Application

Our Surfix®X measuring instrument is used in the following areas:

Electroplating industry

Spraying industry

Automotive industry

chemical industry

aerospace engineering

shipbuilding

Research laboratories and universities

workshop

Consultants and assessors


Advantages

Innovative and user-friendly measurement technology

High-resolution color graphic display

USB interface

Automatic identification of substrates

Data memory for up to 2,000 measured values

Online statistics

Intuitive menu guidance

Measurement on high-temperature surfaces up to 150°C or 300°C (optional)

Manufacturer's test certificate


FAQ
QI want to do a test on the GB/T11374 standard. Is this Coating thickness gauge okay?
A Sure
Q Is the Surfix EX-FN thickness gauge with a wire probe or a built-in probe?
A Hello, it has a built-in probe.
