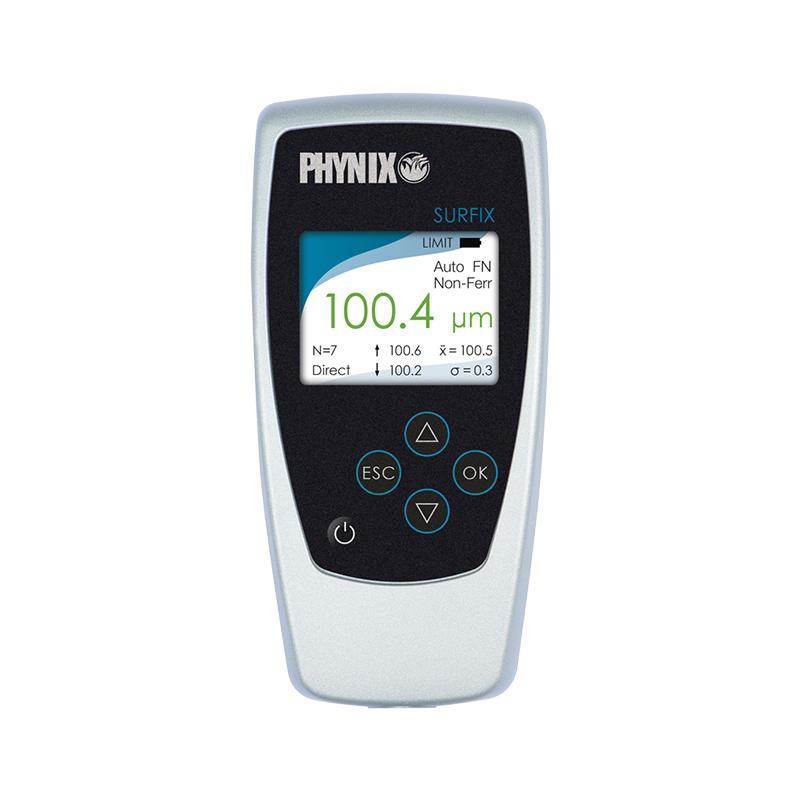

PHYNIX Surfix EX-F Integrated Coating Thickness Gauge magnetic Induction
Surfix EX-F
PHYNIX Surfix EX-F Coating Thickness GaugeSPEC
PHYNIX Surfix EX-F Coating Thickness GaugeDetails
PHYNIX Surfix EX-F Coating Thickness GaugePacking list
- SKU
- NB018262
- Measurement principle
- Magnetic Induction
- Measurement range
- 0~1500μm
- margin of error
- ±1%
- Resolution
- 0.1μm
- probe
- 1.5Mm F standard probe
- Probe contact temperature
- -15~50℃
- Probe material
- Tungsten carbide
- Calibrated mode
- Working calibrated, zero calibrated, single foil calibrated; zero offset
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- Interface
- USB2.0
- Data storage
- 2000 Measured values
- Standards
- DIN，ISO，ASTM，BS
- system language
- English, German, French, Italian, Spanish, Turkish, Czech and Chinese
- Display screen
- High resolution color display
- Operating temperature
- 0~50℃
- Protection level
- IP52
- Machine Weight
- 205g
- Machine size
- 137*66*23mm

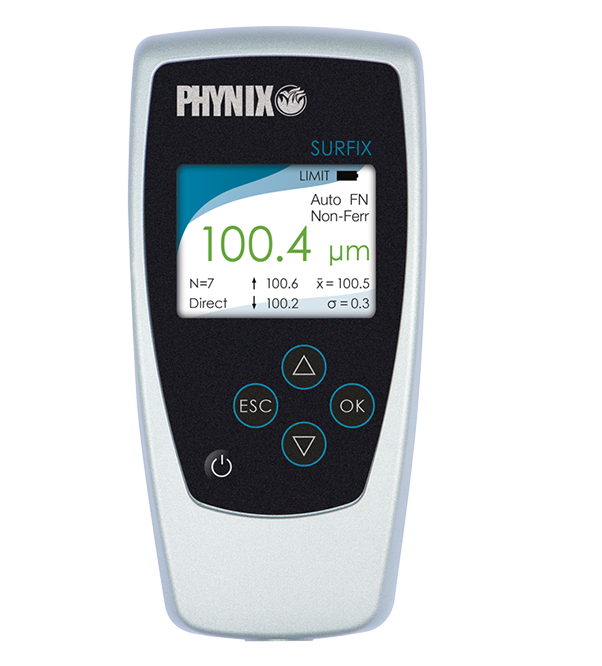

The new PHYNIX instrument is best equipped with a beautiful color display, better content display, and multiple languages. The current version is available in English, German, French, Italian, Spanish, Turkish, Czech and Chinese.
The memory of this series has also been improved compared to the Surfix series, which can store up to 2.000 measured values. The link to the computer is very simple and is via USB2.0. PHYNIX.connect. It is a data transfer program that is compatible with all Windows systems and allows data to be easily imported into Excel. There are two products in this series: The Surfix® SX can be connected to all PHYNIX probes, ensuring maximum flexibility and allowing the instrument to meet a wide range of measurement tasks. The Surfix® EX is equipped with a fixed standard probe for mission-specific measurements. Compared to the Surfix® SX, which is equipped with a removable probe, it is easier to handle and more economical.
All of our measuring probes are equipped with a carbide highly wear-resistant tip and therefore have an almost unlimited service life.
Series classification
| Series differentiation | Surfix®SX | Surfix®EX |
| specification | For connection of replaceable individual probes (probes sold separately) | Externally fixed probes |
| Measuring range | Depends on the probe | 0 - 1,500μm |
| accuracy | Depends on the probe | +/- (1 μm + 1% of reading) |
| resolution | 0.1 μm or <0.2% of reading (using standard probes) | 0.1 μm or <0.2% of reading (using standard probes) |
| Calibration method | Working calibration, zero calibration, single foil calibration; Zero offset | Working calibration, zero calibration, single foil calibration; Zero offset |
| statistics | The number of measurements, the mean, the standard deviation, the minimum and maximum measurements | The number of measurements, the mean, the standard deviation, the minimum and maximum measurements |
| memory | Maximum 2000 readings | Maximum 2000 readings |
| Data transmission | USB 2.0 | USB 2.0 |
| display | High-resolution color display | High-resolution color display |
| Operating temperature | 0 °C to +50 °C | 0 °C to +50 °C |
| Surface temperature | -15°C to +60°C (standard) | -15°C to +60°C (standard) |
| remark | -15°C to +150°C or 300°C (optional high temperature foot) | -15°C to +150°C or 300°C (optional high temperature foot) |
| Size gauges | 137mmx 66mmx 23mm | 137mmx 66mmx 23mm |
| weight | 205g (including FN 1.5 probe and battery) | 205g (including FN 1.5 probe and battery) |
| Degree of protection | IP 52 (dust and drip resistant) | IP 52 (dust and drip resistant) |
| standard | DIN，ISO，ASTM，BS | DIN，ISO，ASTM，BS |
Application
Our Surfix®X measuring instrument is used in the following areas:
Electroplating industry
Spraying industry
Automotive industry
chemical industry
aerospace engineering
shipbuilding
Research laboratories and universities
workshop
Consultants and assessors
Advantages
Innovative and user-friendly measurement technology
High-resolution color graphic display
USB interface
Automatic identification of substrates
Data memory for up to 2,000 measured values
Online statistics
Intuitive menu guidance
Measurement on high-temperature surfaces up to 150°C or 300°C (optional)
Manufacturer's test certificate
