MODERNER DM-III Abradability Tester travel 130mm

The MODERNER DM-III Abradability Tester is used to test the sanding properties of primers and putties. The friction speed of the DM-III Abradability Tester is 0 to 135 times/min, and the test stroke is 130mm.
Model：
Certificate
Contact
Details SPEC

Moderner DM-III Abradability TesterSPEC

Moderner DM-III Abradability TesterDetails

Moderner DM-III Abradability TesterPacking list

SKU
NB018292
Friction velocity
0~135cpm
Test Travel
130mm
Set number range
0~9999 (round-trip counting) Note: round-trip × 2 is one-way
friction load
570±15g
Power
220V 50Hz
Power
60W
Dimensions
300*280*380mm
Weight
About 25kg
sample specification
Tinplate 50 * 120 δ = 0.3~ 1.5mm
Additional Weight
50±3g、100±4g、200±7g
DM-III
Abradability Tester
MODERNER DM-III Abradability Tester travel 130mm Picture

Modern Environment DM-III Polishability Tester

  Shanghai Modern Environment's polishability Tester is a device used to evaluate the polishability of primers and putties. This device polishes the primer and putty samples to be measured back and forth. The number of polishing times can be directly read by the counter. According to the load weight, number of polishing times and degree of wear, the polishing resistance of the primer and putty can be evaluated. This instrument uses a magnetic suction cup to facilitate sample loading and unloading.

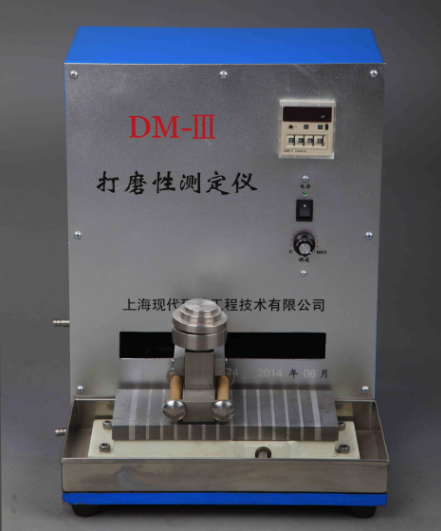

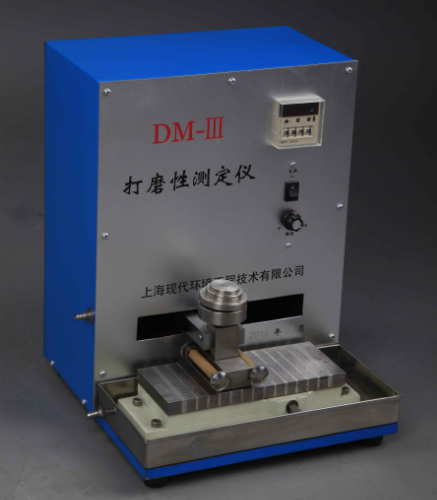

DM-III polishability Tester display diagram

Modern Environment DM-III Polishability Tester

Modern Environment DM-III Polishability Tester 1



FAQ
QDo you have the Abradability tester involved in GB/T23455?
A The DM-III Abradability tester will do
