Defelsko DOLLY10 kit 10mm PosiTestAT

SE
The size of the Defelsko DOLLY10 kit is 10mm, which is a special kit for PosiTestAT drawing adhesion instrument. The minimum pressure of the DOLLY10 kit is 2.8MPa.
Model：
Certificate
Contact
Details SPEC

Defelsko DOLLY10 KitSPEC

Defelsko DOLLY10 KitDetails

Defelsko DOLLY10 KitPacking list

SKU
NB018305
Kit diameter
10mm
Range
2.8~70MPa
quantity
10.
DOLLY10
Kit

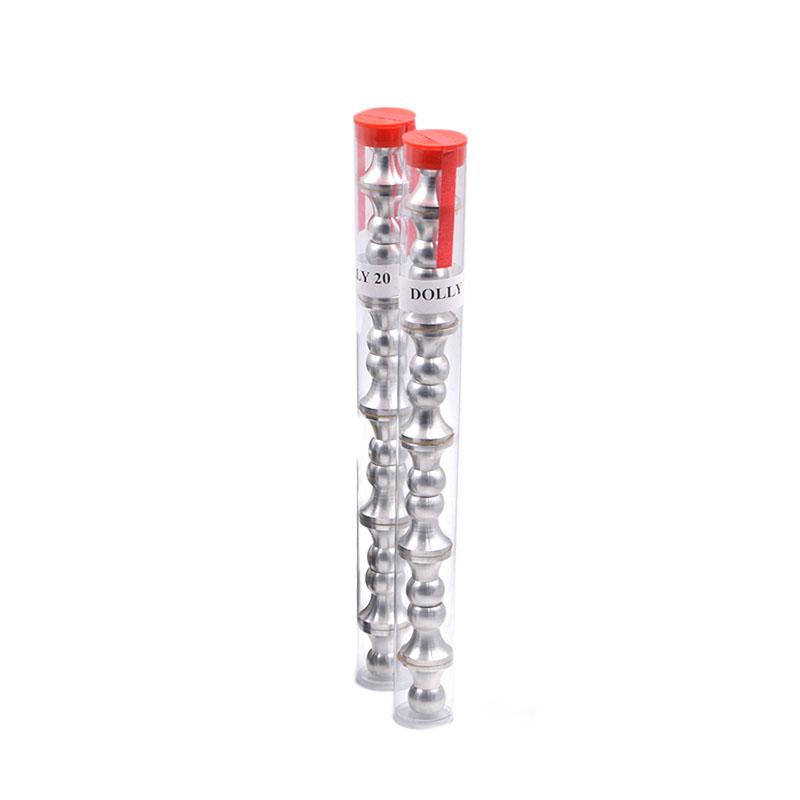

Defelsko DOLLY10 kit 10mm PosiTestAT Picture

Introduction

The spindle isAn essential accessory to the PosiTestAT Pull-Off Adhesion Tester, it is available in a variety of different sizes, each with different pull-out strengths.

The size of the Defelsko DOLLY10 spindle is 10mm, and the starting pressure is 2.8MPa.

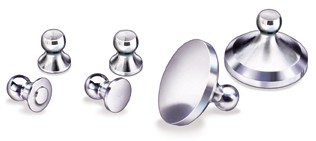

Defelsko DOLLY10 spindles

Tablet pull-out strength

Spindle size(mm)Start-up pressureMaximum pull-out pressure (AT-M)Maximum pull-out pressure (AT-A)
10mm400psi（2.8MPa）10000psi（70 MPa）14000psi（96 MPa）
14mm200psi（1.4MPa）6000psi（40 MPa）7000psi（50 MPa）
20mm100psi（0.7MPa）3000psi（20 MPa）3500psi（24 MPa）
50mm50psi（0.4MPa）500psi（3.5 MPa）560psi（3.8 MPa）
FAQ
QCan this spindle be suitable for GB/T5210?
A OK
