United States

Defelsko DOLLY20 kit 20mm PosiTestAT 10 pcs

SE
The size of the US Defelsko DOLLY20 kit is 20mm, which is a special kit for PosiTestAT drawing adhesion instrument, and the starting pressure of the DOLLY20 kit is 0.7MPa.
Model：
Certificate
Contact
Details SPEC

Defelsko DOLLY20 KitSPEC

Defelsko DOLLY20 KitDetails

Defelsko DOLLY20 KitPacking list

SKU
NB018309
Kit diameter
20mm
Range
0.7~24MPa
quantity
10.
DOLLY20
Kit

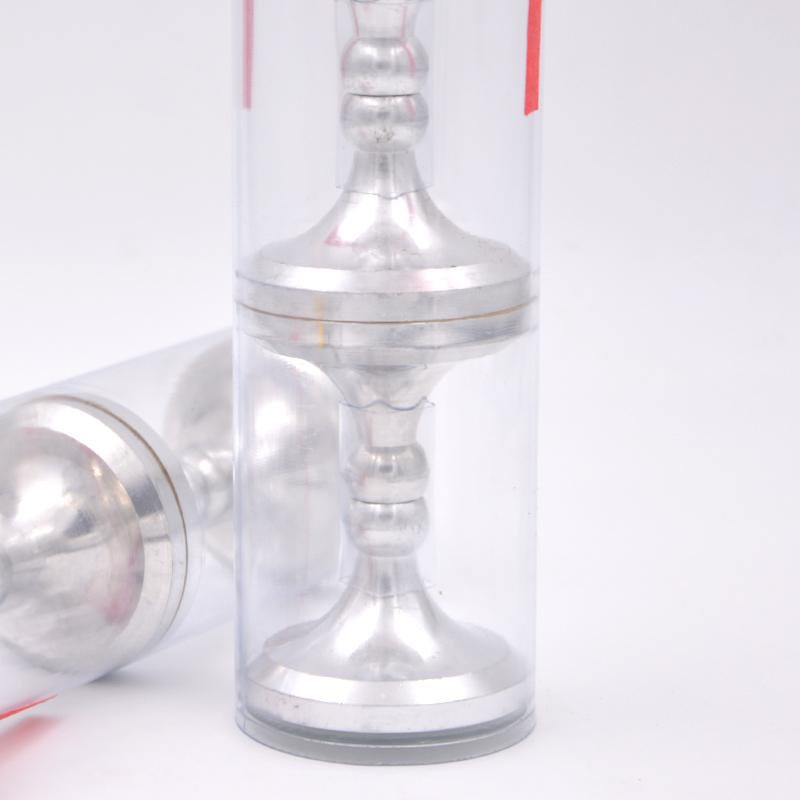

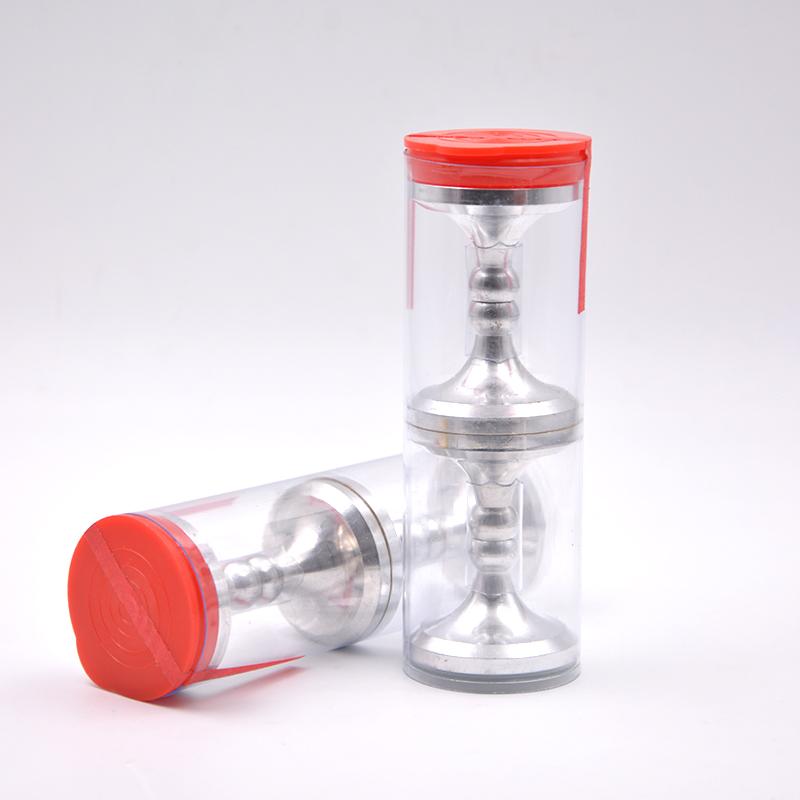

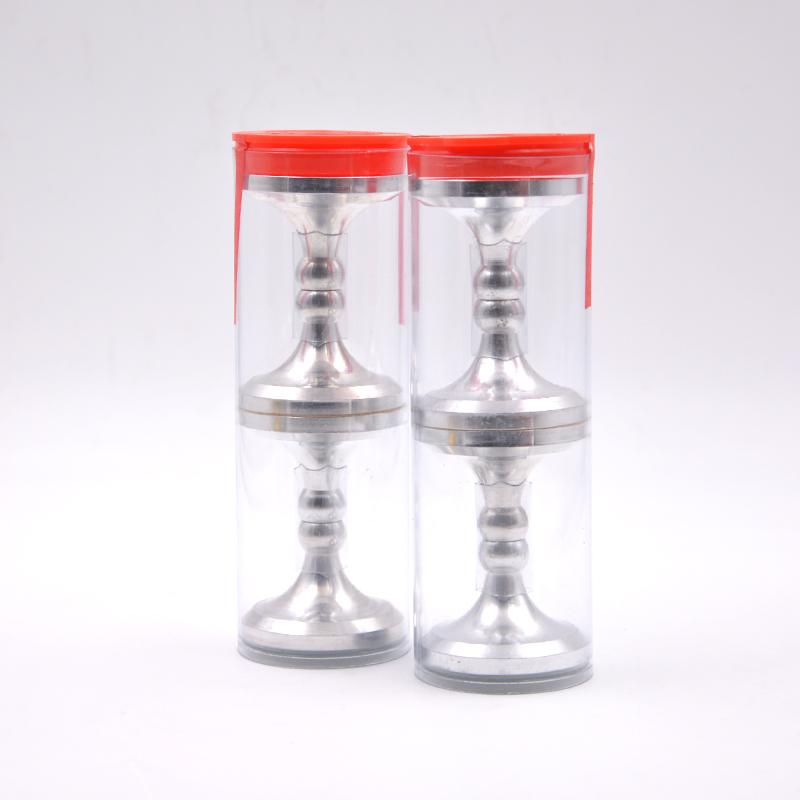

Defelsko DOLLY20 kit 20mm PosiTestAT 10 pcs Picture

Introduction

The spindle isAn essential accessory to the PosiTestAT Pull-Off Adhesion Tester, it is available in a variety of different sizes, each with different pull-out strengths.

The size of the Defelsko DOLLY20 spindle is 20mm, and the starting pressure is 0.7MPa.

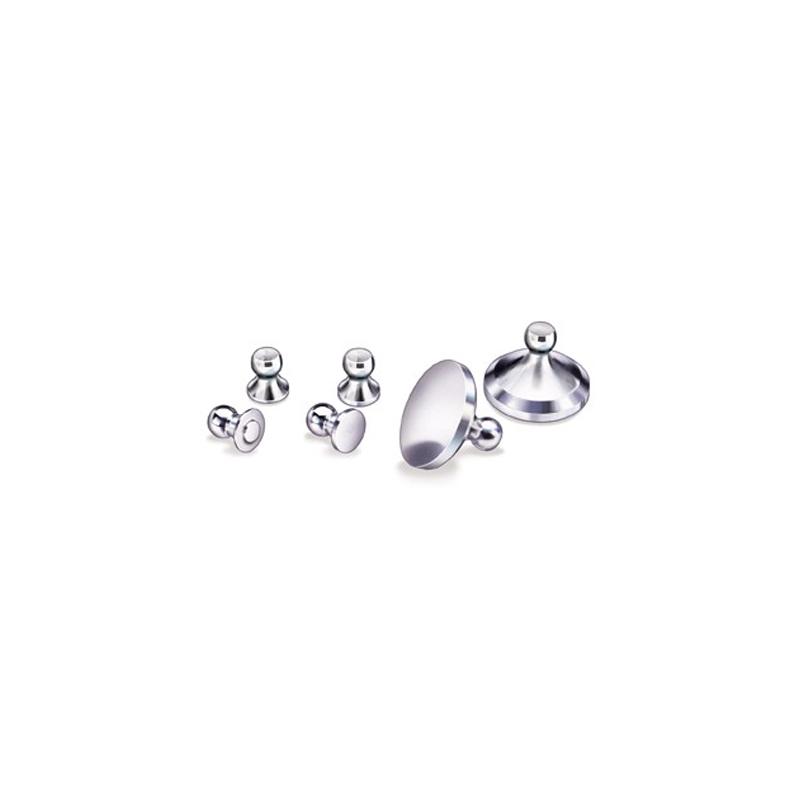

Defelsko DOLLY20 spindles

Tablet pull-out strength

Spindle size(mm)Start-up pressureMaximum pull-out pressure (AT-M)Maximum pull-out pressure (AT-A)
10mm400psi（2.8MPa）10000psi（70 MPa）14000psi（96 MPa）
14mm200psi（1.4MPa）6000psi（40 MPa）7000psi（50 MPa）
20mm100psi（0.7MPa）3000psi（20 MPa）3500psi（24 MPa）
50mm50psi（0.4MPa）500psi（3.5 MPa）560psi（3.8 MPa）
FAQ
QI want to do a test on the GB/T5210 standard. Is this spindle okay?
A Sure
