Defelsko DOLLY50 kit 50mm PosiTestAT 4 pcs

SE
The size of the US Defelsko DOLLY50 kit is 50mm, which is a special kit for PosiTestAT drawing adhesion instrument, and the starting pressure of the DOLLY50 kit is 0.4MPa.
Model：
Certificate
Contact
Details SPEC

Defelsko DOLLY50 KitSPEC

Defelsko DOLLY50 KitDetails

Defelsko DOLLY50 KitPacking list

SKU
NB018311
Kit diameter
50mm
Range
0.4~3.8MPa
quantity
Four.
DOLLY50
Kit

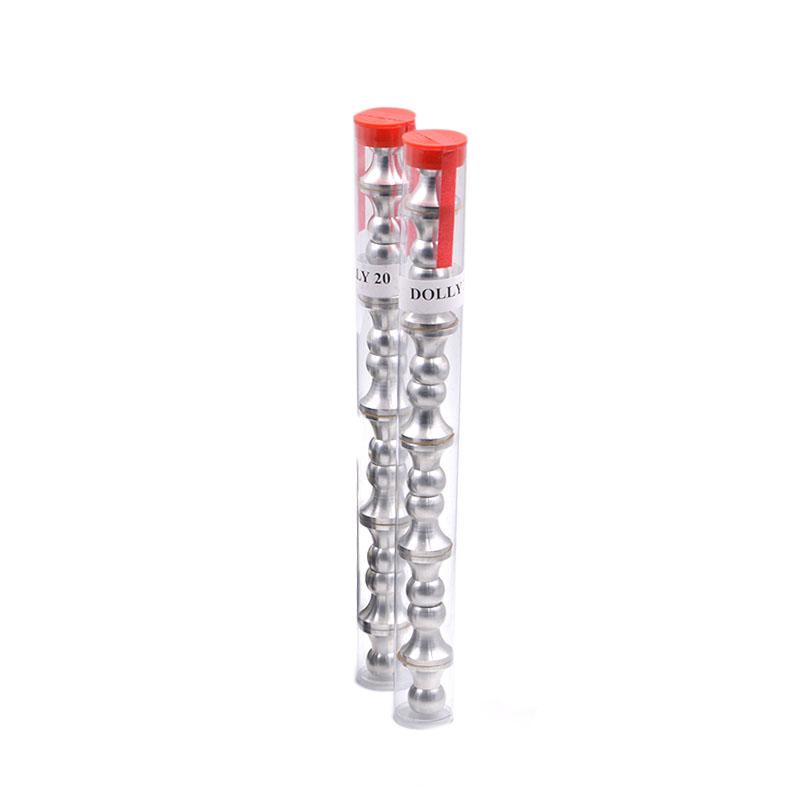

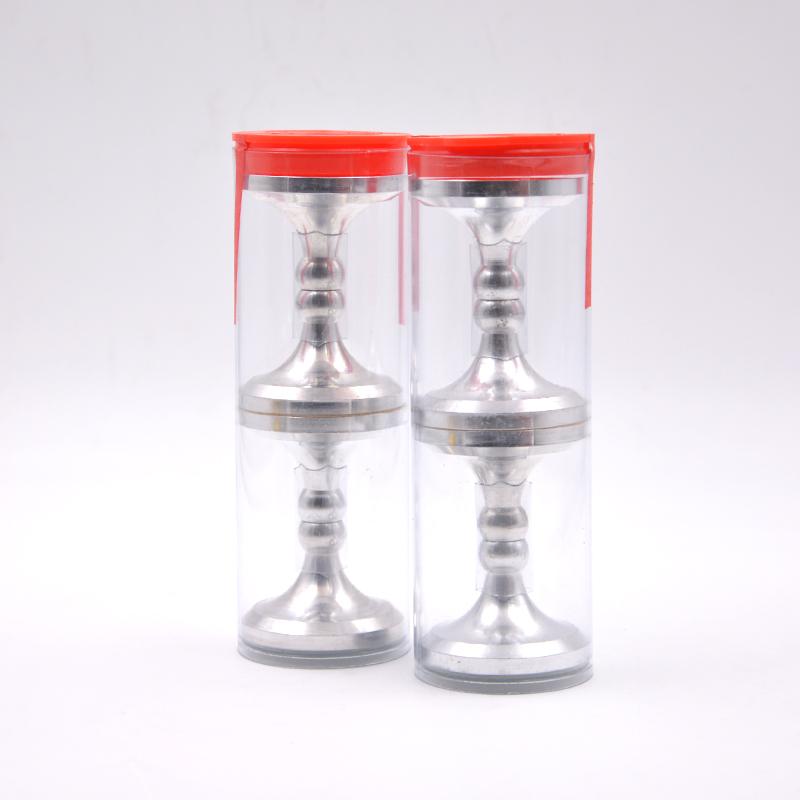

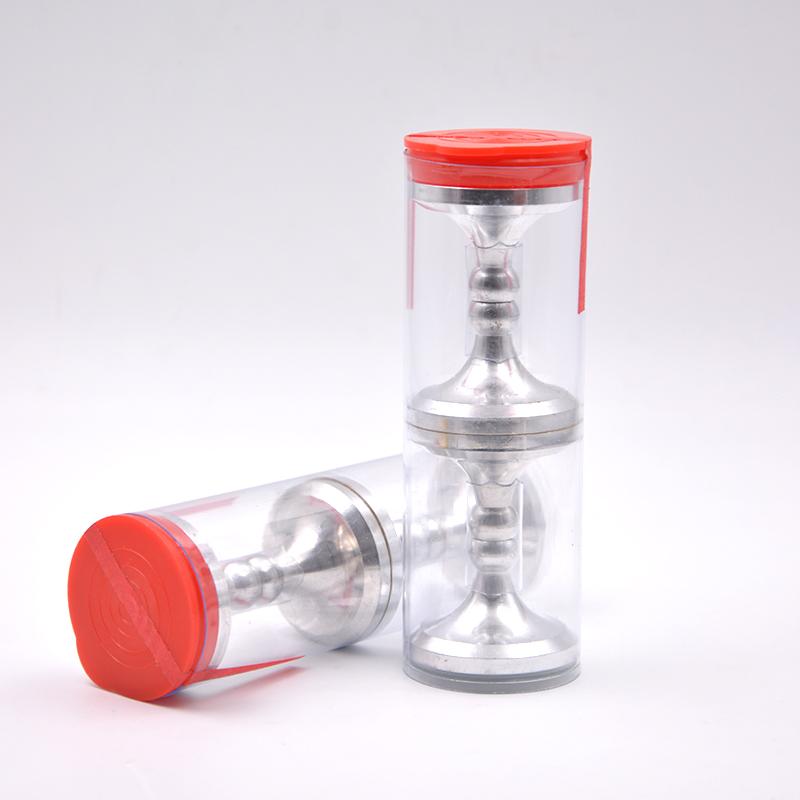

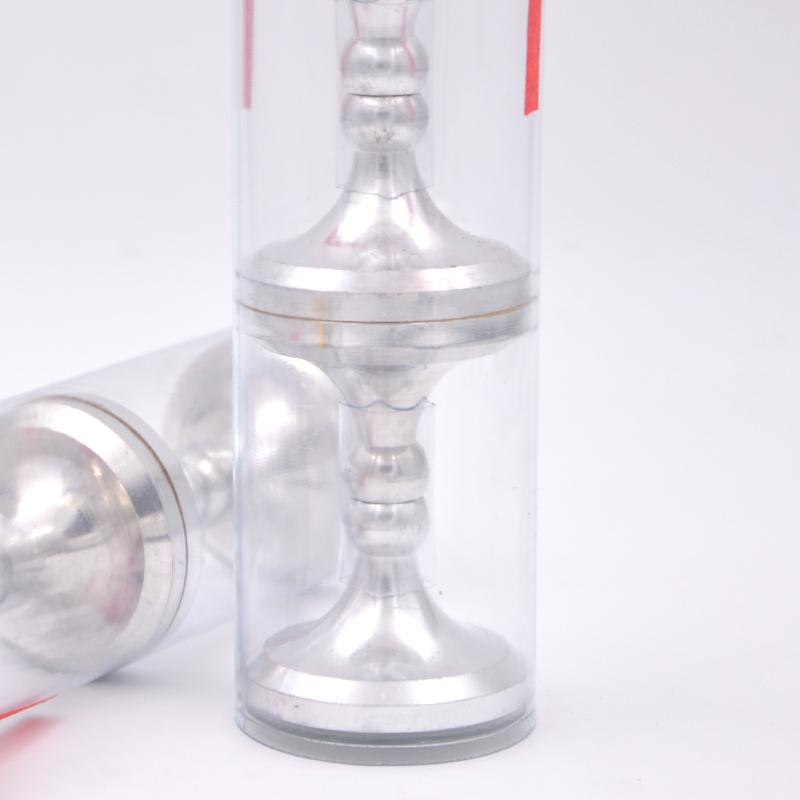

Defelsko DOLLY50 kit 50mm PosiTestAT 4 pcs Picture

Introduction

The spindle isAn essential accessory to the PosiTestAT Pull-Off Adhesion Tester, it is available in a variety of different sizes, each with different pull-out strengths.

The size of the Defelsko DOLLY50 spindle is 50mm, and the starting pressure is 0.4MPa.

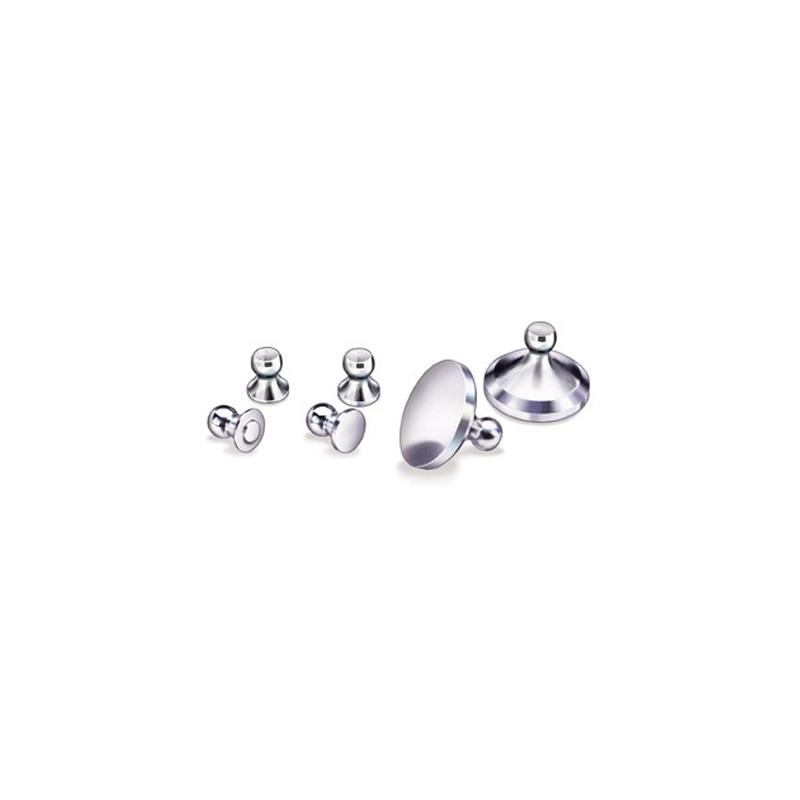

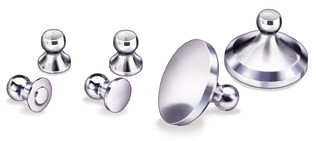

Defelsko DOLLY50 spindle display in the United States

Tablet pull-out strength

Spindle size(mm)Start-up pressureMaximum pull-out pressure (AT-M)Maximum pull-out pressure (AT-A)
10mm400psi（2.8MPa）10000psi（70 MPa）14000psi（96 MPa）
14mm200psi（1.4MPa）6000psi（40 MPa）7000psi（50 MPa）
20mm100psi（0.7MPa）3000psi（20 MPa）3500psi（24 MPa）
50mm50psi（0.4MPa）500psi（3.5 MPa）560psi（3.8 MPa）
FAQ
QDo you have the spindles involved in GB/T5210?
A The DOLLY50 spindle will do.
