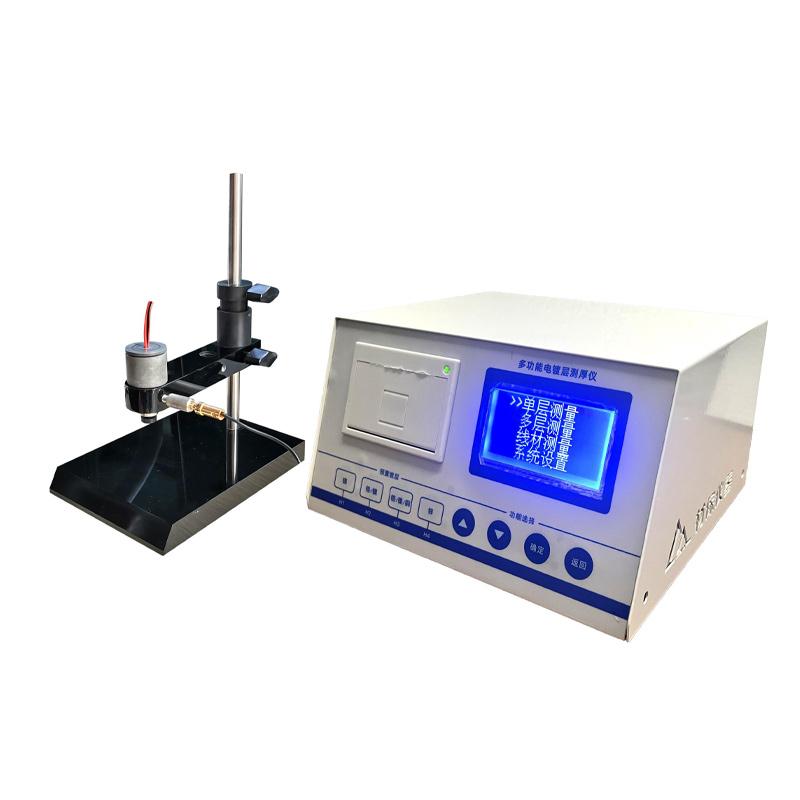

COATTEST INSTRUMENT DJH-E Electrolytic Thickness Gauge platings Thickness measurement instrument

SE
Can measure 0-300μm platings Film thickness, resolution up to 0.01μm, support composite multi-layer measurement, standard micro printer automatic recording test information, the minimum measurable φ 1.7mm small size workpiece.
$1335.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT

COATTEST INSTRUMENT DJH-E Electrolytic Thickness GaugeSPEC

COATTEST INSTRUMENT DJH-E Electrolytic Thickness GaugeDetails

COATTEST INSTRUMENT DJH-E Electrolytic Thickness GaugePacking list

SKU
NB018408
Measurement of plating
Standard configuration: chromium, nickel, copper, zinc, tin, silver, gold and other metal platings, composite platings (such as Cr/Ni/Cu), if you need to measure Miscellaneous platings, please ask in advance
Platings substrate
Metal, plastic, brass, zinc alloy, NdFeB, Pottery and porcelain (basically not limited by the substrate)
Number of coating layers
Single layer and composite multi-layer
Minimum measurable size
φ 2.4mm and φ 1.7mm two sizes are standard, the plane is more than 3mm * 3mm, and the diameter of the circular shaft is more than 6mm. If you measure a smaller size workpiece, please submit it in advance.
data processing
DJH-E type has a micro printer, which can automatically print the tested plating type, Film thickness value and test time and other information, DJH-D does not have this function
measurement range
0~ 300μm (the use range is 0.03~ 50um, beyond 50um, the error will gradually increase)
Indication Error
≤±10%
reproducibility
≤5%
resolution
0.01μm
power supply
AC 220V +/- 10%, 50/60Hz, 30W
DJH-E
Electrolytic Thickness Gauge
Can measure 0-300μm platings Film thickness, resolution up to 0.01μm, support composite multi-layer measurement, standard micro printer automatic recording test information, the minimum measurable φ 1.7mm small size workpiece.
COATTEST INSTRUMENT DJH-E Electrolytic Thickness Gauge platings Thickness measurement instrument Picture

Application

Applicable fields: automobile and motorcycle industry, aerospace and navigation industry, bicycle industry, electronic appliance industry, daily hardware industry, sanitary ware industry, plastic electroplating industry, neodymium-iron-boron industry, standard parts industry, technical supervision departments and scientific research institutions.

Product use: electroplating layer thickness and multi-layer nickel potential difference measurement

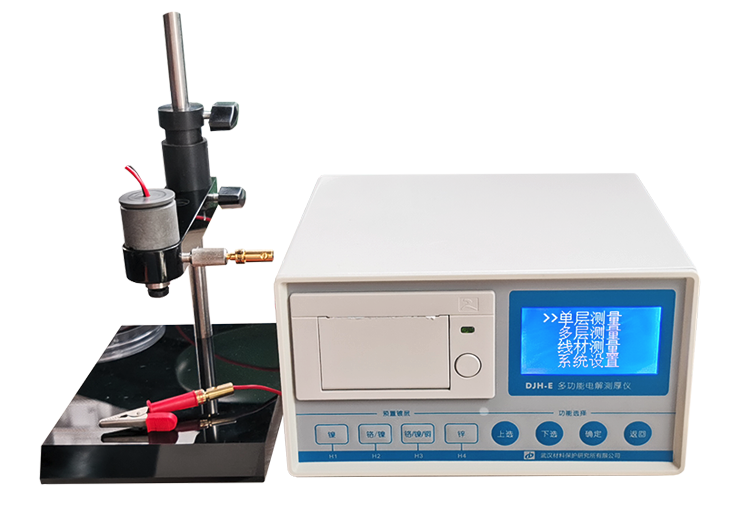

Material protection instrument DJH-E electrolytic Thickness Gauge display


Additional information

The Thickness Gauge has been calibrated before leaving the factory. If you need a coating calibration plate (made in the United States), you need to purchase it separately.

FAQ
QIt needs to be suitable for flat or large diameters. Do you want to change the wire function and wire test rack?
A Flat and large diameter are conventional, and no wire test rack is required. The wire test rack is to test products such as wire and thread. Conventional products and wire are two separate products, and no customer makes wire and does regular ones, unless it is a third-party testing agency.
QIs it possible to measure the thickness of silver on a round wire?
A Yes, a wire distribution test rack is recommended.
QFor flat or large diameters, do you need a wire test rack?
A No need, just use a conventional one. The wire test rack is to test products such as wire and wire. Conventional products and wire are two independent products. No customer makes wire and does conventional ones, unless it is a third-party testing agency.
QOnly chromium is measured, mainly chromium is measured, and Ti and chromium are plated on the nickel bottom.
A Recommended DJH-E low price, small space DJH-G high price, larger space
QCan you measure the thickness of platings? Plated with 3 layers, the bottom layer is copper, nickel on copper, and chromium on nickel.
A Sure.
QNickel alloy on carbon steel, Coating thickness of nickel can be measured?
A Can't measure it.
QDoes this Electrolytic Thickness Gauge have any requirements for the size of the sample to be tested?
A It is recommended to be larger than 6mm for easy testing.
QWhat is the difference between the DJH-D and DJH-E thickness gauges?
A DJH-D no printing function, no clock display, other performance is exactly the same (Instrument Appearance is different, the function is the same)
QAsk what kind of thickness gauge is used for the outermost chrome plating of iron copper? Measurement of the thickness of the outermost chrome layer
A Equivalent to testing the chrome plating on copper, it can be tested with the DJH-E Electrolytic Thickness Gauge.
QCan this COATTEST INSTRUMENT Electrolytic Thickness Gauge correspond to GB/T12305.1?
A If it is used to test the thickness of the Eletroplating pure gold layer, it can correspond to the GB/T12305.1 standard.
