UK ION SCIENCE ION MVI-DL Portable Data Mercury Vapor Detector

The United Kingdom ION SCIENCE MVI-DL portable data mercury vapor Detector has a U12 four-channel data storage device that can store 43,000 readings, and the MVI-DL portable data mercury vapor Detector has a measurement range of 0.1-200 and 1.0-2000 µg/m3.
Model：
Certificate
Contact
Details SPEC

Ion Science MVI-DL Portable data mercury vapor DetectorSPEC

Ion Science MVI-DL Portable data mercury vapor DetectorDetails

Ion Science MVI-DL Portable data mercury vapor DetectorPacking list

SKU
NB018413
principle
Double beam of light UV absorption technology
Response time
3s
dual range
0.1 - 200µg/m3、1.0 - 2000 µg/m3
resolution
0.001mg/m3
Display
Large LCD screen
detection Accuracy
+/- 5% per microgram or +/- 10% of the reading
Alarm mode
Factory preset to 25µg/m3 and optional alarm value in Measurement range
temperature
+10℃~+50℃
Repeatability
±5%FSD@1µg/m3
operation
Real-time monitoring of mercury vapor concentration
operating time
It can last for 8 hours after a full charge.
Power Supply
NIMH
Weight
3.0 kg
Dimension
145*295*80mm
MVI-DL
Portable data mercury vapor Detector

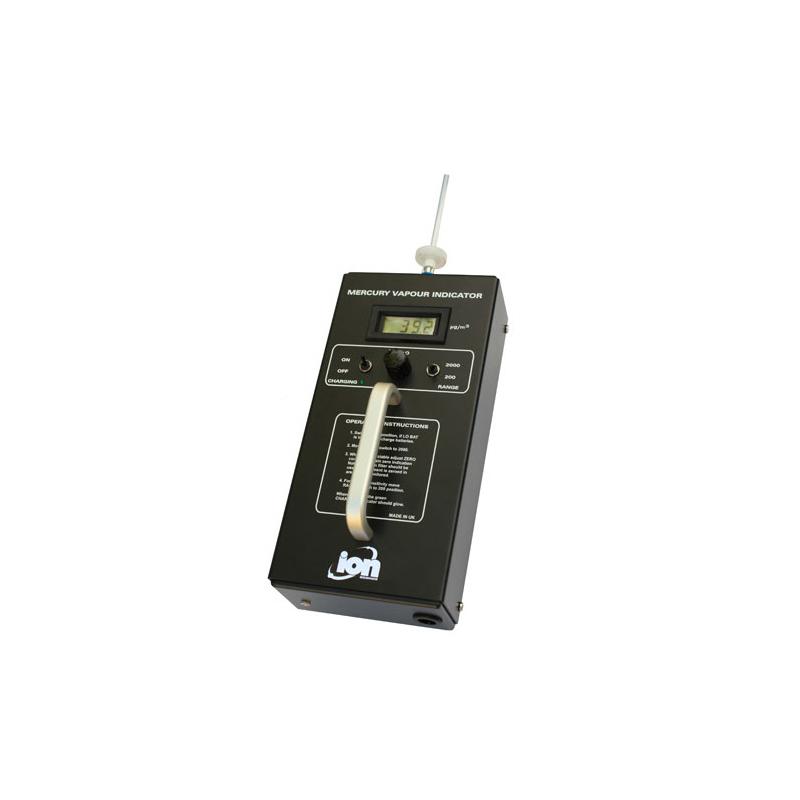

UK ION SCIENCE ION MVI-DL Portable Data Mercury Vapor Detector Picture

Introduction

The revolutionary dual-beam UV wave absorption technology ensures accurate qualitative and quantitative detection of mercury by MVI without toxic saturation.

Features

  • Dual-beam UV absorption technology

  • There is no poisoning saturation – no need to stop for maintenance

  • Rapid detection: response time 3 seconds

  • Dual range: 0.1 -200 μg/m3 and 1.0 -2000 μg/m3 (1 μg/m3 = 0.001 mg/m3)

  • High precision measurement (resolution: 0.001mg/m3 )

  • Continuous readings

  • The high-performance built-in pump ensures fast display of the sample and repeated measurements

  • PTFE probe with moisture-resistant filter

  • Large screen readout display

  • It is easy to operate with one hand

  • The audible alarm can be set to any concentration level alarm value or turn off the alarm

  • Rugged portable or stationary models are available

The MVI enables rapid detection and continuous measurement of mercury (mercury) vapor. The revolutionary dual beam means that the instrument is not absorbed or regenerated between readings, ensuring that the instrument returns to zero quickly.

MVI has a built-in high-performance pump that can be displayed and zeroed out quickly. An audible alarm and a large number provide a clear indication of the concentration level of mercury vapor.

With its simple design and one-handed operation, the MVI is the perfect instrument for fast and accurate detection of mercury vapor. Durable, portable or stationary options are available.

Application

  • Manufacturing, recycling, and recycling

  • Fluorescent lamp treatment plant

  • Refineries / oleochemical plants

  • Mining / Petrochemical Industry

  • CDC / Surveillance

  • Occupational Defense Institute,

  • Universities / Research Institutes

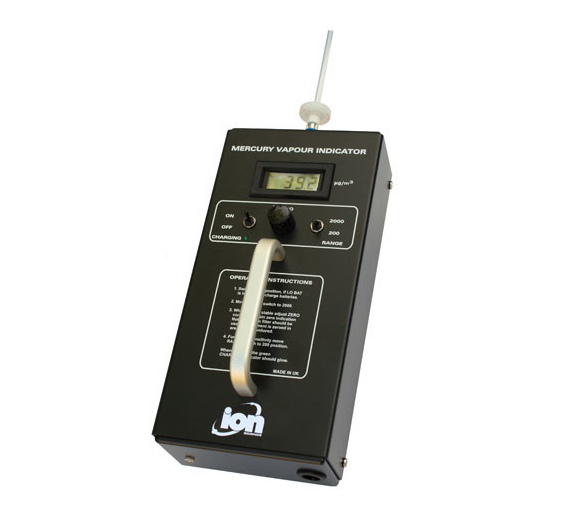

Presentation diagram

Ion Science MVI-DL Portable Data Mercury Vapor Detector
