TQC SHEEN SH705 (Ref. 705) Mechanical scratch resistance Tester

TQC SHEEN SH705 mechanical scratch resistance Tester conforms to ISO 1518 standard, using tungsten carbide hemispherical stylus, SH705 mechanical scratch resistance Tester has a scratch speed of 1.35mm/s.
Model：
Certificate
Contact
Details SPEC

TQC sheen SH705 Resistance to scratch TesterSPEC

TQC sheen SH705 Resistance to scratch TesterDetails

TQC sheen SH705 Resistance to scratch TesterPacking list

SKU
NB018446
SH705
Resistance to scratch Tester

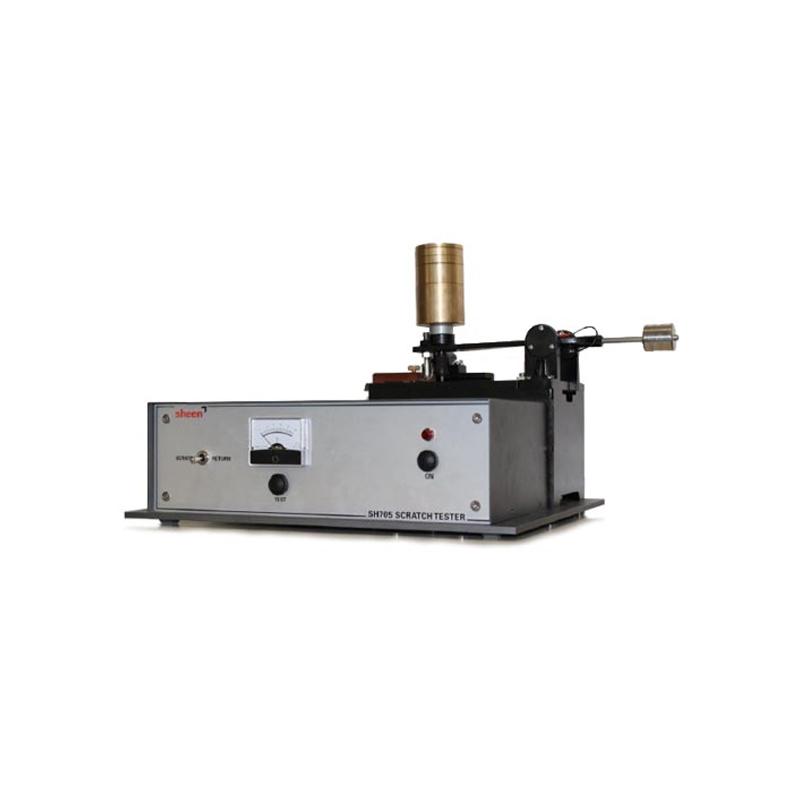

TQC SHEEN SH705 (Ref. 705) Mechanical scratch resistance Tester Picture

Introduction

This scratch Tester is designed for coating hardness evaluation based on scratch resistance. Clamp the test plate tightly and move it slowly while scraping the surface with a stylus or alternative tool. Depending on the test procedure, specified or variable loads can be applied to obtain varying degrees of failure, from traces to destruction. The voltmeter indicates the contact between the tool and the metal sample substrate. Utmost. Panel size: 100x150x1.6mm (0.3mm coating). Alternatively, a simple manual version can be used.

Product Features

● Robust construction, reliable and reproducible results

● Simple maintenance and easy tool replacement

● 220-240V / 50Hz

TQC SHEEN SH705 Mechanical Scratch Resistance Tester

FAQ
QSH705 I want this one.
A SH705 is the current SH0530. The 705 is the old model before SHEEN. After it was acquired by TQC, it was called SH0530, and the machine has not changed.
QCan we normally use 220V voltage?
A The information says 230V, and it can work normally at the domestic voltage of 220V, don't worry.
QDo you have the scratch resistance tester involved in GB/T17657?
A The SH705 scratch resistance tester will do
