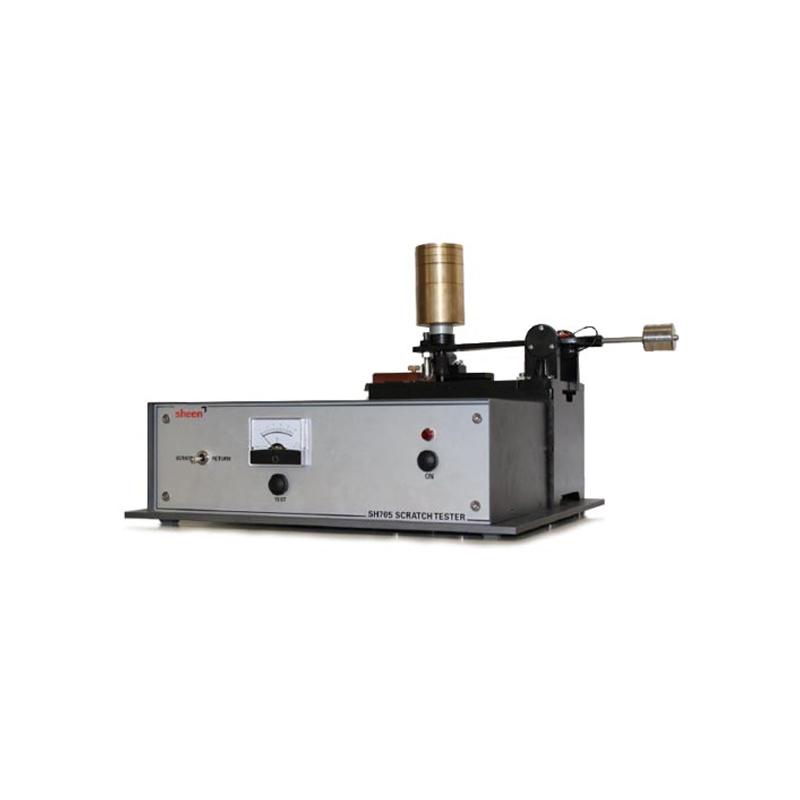

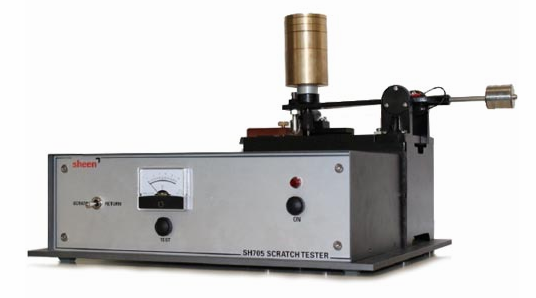

TQC SHEEN SH705/1 (Ref. 705/1) Mechanical scratch resistance Tester

SH705/1

Resistance to scratch Tester

Introduction

This scratch Tester is designed for coating hardness evaluation based on scratch resistance. Clamp the test plate tightly and move it slowly while scraping the surface with a stylus or alternative tool. Depending on the test procedure, specified or variable loads can be applied to obtain varying degrees of failure, from traces to destruction. The voltmeter indicates the contact between the tool and the metal sample substrate. Utmost. Panel size: 100x150x1.6mm (0.3mm coating). Alternatively, a simple manual version can be used.

SH705/1 Mechanized Abrasion Resistance Tester - ASTM D5178: 6mm/s. Displacement, Ø 1.6 mm ring tool, weight 2 kg (above) + 4×2 kg = 10 kg.

Product Features

● Robust construction, reliable and reproducible results

● Simple maintenance and easy tool replacement

● 220-240V / 50Hz

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
