German Nix Fe 2mm Thickness Gauge probe QNix7500 Thickness Gauge special

QNix Fe2mm Thickness Gauge probe is dedicated to QNix7500 Thickness Gauge, with a thickness measurement range of 2000 microns. This Thickness Gauge probe is a Thickness Gauge probe based on the principle of magnetic Induction.
Model：
Contact
Details SPEC

Qnix 7500 Fe 2mm probeSPEC

Qnix 7500 Fe 2mm probeDetails

Qnix 7500 Fe 2mm probePacking list

SKU
NB018497
Measurement principle
Magnetic Induction
Measurement range
0~2000μm
margin of error
±2％
Minimum measurement surface
Φ25mm
Minimum radius of curvature
Convex: 5mm; Concave: 25mm
thinnest substrate
200μm
Interface
USB or RS232
7500 Fe 2mm
probe

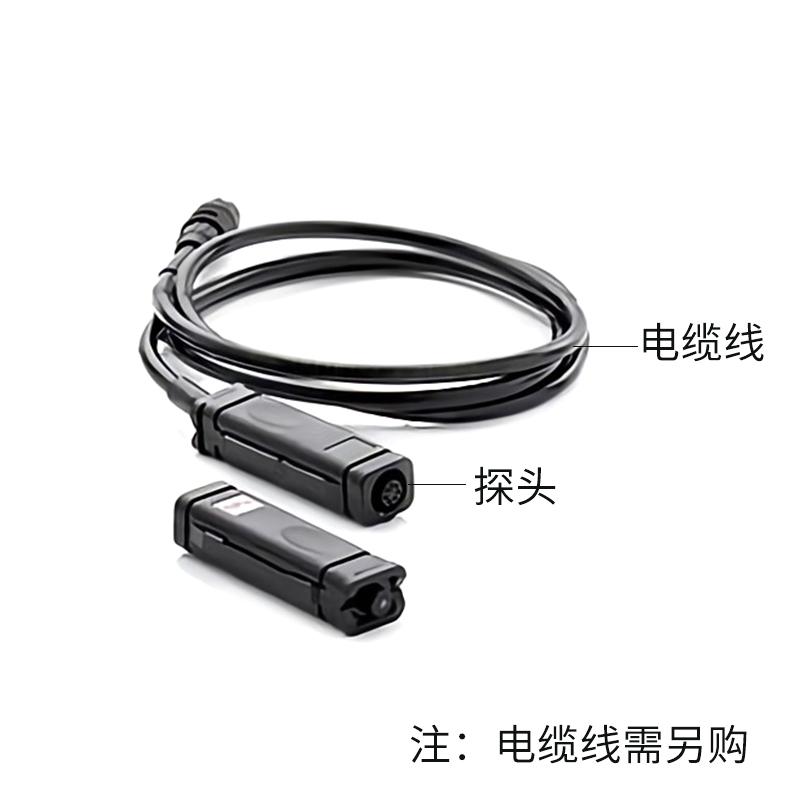

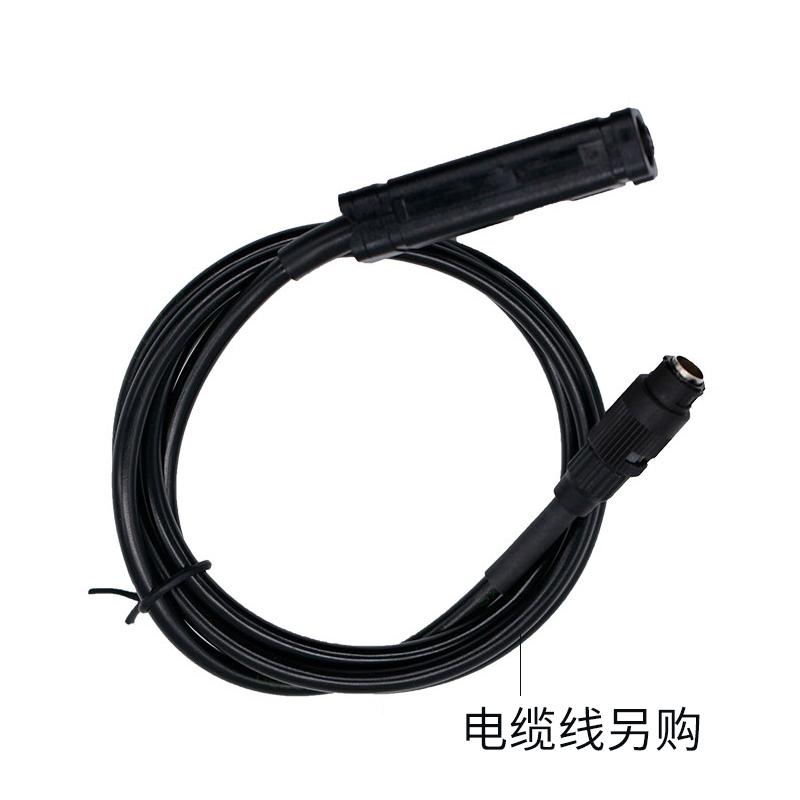

German Nix Fe 2mm Thickness Gauge probe QNix7500 Thickness Gauge special Picture

Introduction

The German QNix Nix Fe2mm Thickness Gauge probe is a magnetic induction coating Thickness Gauge, the thickness measurement range is 0~2000 microns, and the Fe2mm Thickness Gauge probe is the supporting probe of QNix7500 anti-corrosion layer Thickness Gauge, with a measurement accuracy of 0-50μm: ≤±1μm, 50-1000μm: ≤±1.5%, 1000-2000μm: ≤±2%.

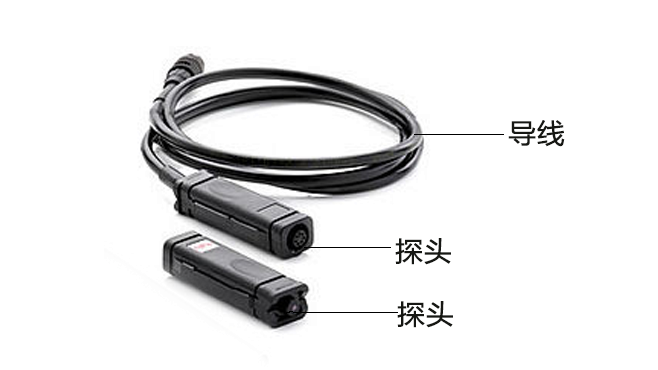

Detail Figure 1 of the QNIX 7500 FE 2mm probe

Qnix 7500 Probe Model Chart

ModelFe-2000Fe-5000Nfe-2000Nfe-5000Fe/Nfe-2000Fe/Nfe-5000
matrixironironNon-ironNon-ironIron/non-ferrousIron/non-ferrous
Probe formOne/SplitOne/SplitOne/SplitOne/SplitOne/SplitOne/Split
Measuring range0~2000μm0~5000μm0~2000μm0~5000μm0~2000μm0~5000μm
Measurement accuracy0~1999μm：±(1μm+2％)

0~1999μm：±(1μm+2％);

2000~5000μm：±3.5％

0~1999μm：±(1μm+2％)

0~1999μm：±(1μm+2％);

2000~5000μm：±3.5％

0~1999μm：±(1μm+2％)

0~1999μm：±(1μm+2％);

2000~5000μm：±3.5％

Minimum measuring surfaceFe：φ25mm；NFe：φ25mm
Minimum radius of curvatureConvex φ5mm, concave φ25mm
Minimum substrate thicknessFe：200μm；NFe：50μm
