DONGRU DR320 Coating Thickness Gauge electromagnetic induction principle for magnetic metal substrate surface platings measurement

DR320

Coating Thickness Gauge

Magnetic Induction measurement, built-in probe, thickness measurement range 0~1250μm, error accuracy +/- 3%, with statistical function, single and continuous measurement, can store 116 data, can be connected to computer printing data.

product description

Dongru DR320 coating Thickness Gauge is a small-volume integrated coating Thickness Gauge, which adopts the principle of magnetic thickness measurement and a built-in high-sensitivity probe to achieve accurate coating thickness measurement. Although the DR320 coating Thickness Gauge is small in size, it has powerful functions and has a data storage function. It can store 116 test data and has a data statistics function. It can also be connected to a computer to operate and print data. The measurement is stable and reliable. The shell of the DR320 coating Thickness Gauge is an impact-resistant hard plastic shell, which is suitable for thickness measurement in powder paint coating environments.

Dongru DR320 Portable Coating Thickness Gauge integrates portable, integrated, intelligent digital display and other features. DR320 Coating Thickness Gauge is mainly used for coating measurement on the surface of magnetic metal substrates.

Application

DR320 coating Thickness Gauge can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

The DR320 coating Thickness Gauge adopts the principle of electromagnetic induction, which can quickly, without damage, and accurately measure the thickness of the coating on the magnetic metal surface. It can nondestructively measure the thickness of non-magnetic coatings (such as: paint, electrophoresis, enamel, rubber, powder, enamel, anti-corrosion layer, galvanized, chrome, etc.) on magnetic metal substrates (such as: steel, iron, nickel);

Advantages

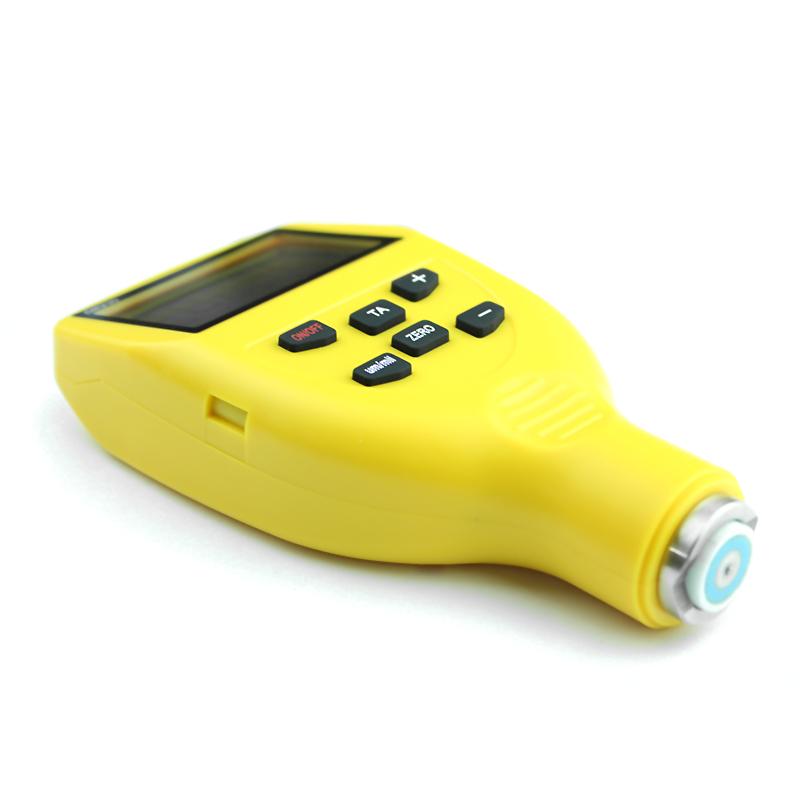

1. Beautiful appearance, one-piece design:

Metal probe, strong, wear-resistant, more stable

Exquisite integral design, easy to carry

Ergonomically designed for comfortable handling and precise placement on smooth, flat surfaces

2. Accurate measurement, fast counting:

Fast test speed and accurate reading

There are two measurement methods: continuous test and single measurement; continuous test reduces human error and makes the measured value more accurate and reliable

DR320 coating Thickness Gauge has storage function, which can store 116 measurement data

3. Intelligent operation:

There is a buzzer prompt during the operation (single measurement mode)

low Voltage indication

Manual/automatic shutdown function

4. Multiple functions, easy to operate:

Four statistical functions: maximum value, minimum value, average value, measurement times, press the TA key to view

It can be connected to a computer for communication and read out stored data for saving or printing

Two calibration methods: zero point calibration and two point calibration

5. Special application:

Made of high-impact ABS plastic housing, the DR320 Coating Thickness Gauge is ideal for paint and powder-coated environments.

Standards

Dongru DR320 coating Thickness Gauge complies with the national industry standard: GB/T 4956-1985 standard.

Packing list：Thickness gauge x1, calibrated diaphragm (50, 100, 250, 370 μm) x4, iron matrix x1, ABS instrument Encasement box x1, battery x1, manual x1, certificate x1, cleaning cloth x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
