German EPK MiniTest 440 Ultrasonic Thickness Gauge Penetration coating thickness measurement

SE
Germany EPK MiniTest 440 Ultrasonic Thickness Gauge thickness range of 0.8~ 300mm, can penetrate the coating measurement substrate thickness, MiniTest 440 Ultrasonic Thickness Gauge with emission - echo, echo - echo, fast scan three measurement modes.
$2026.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con CAT
Similar products

ElektroPhysik MiniTest 440 Ultrasonic Thickness GaugeSPEC

ElektroPhysik MiniTest 440 Ultrasonic Thickness GaugeDetails

ElektroPhysik MiniTest 440 Ultrasonic Thickness GaugePacking list

SKU
NB001850
Measurement range
Emission-echo mode: 0.8~ 300mm; echo-echo mode: 3~ 25mm
Probe style
Split probe
Probe diameter
Φ8mm
Speed of sound
1000~9999m/s
Measurement error
±0.04mm(0.65-9.99mm)；±(0.1%H+0.04)mm(10.00-99.99mm)；±0.3%(100.0-500.0mm)
Display resolution
0.1/0.01mm
Lower limit of pipe measurement
20mm
Probe contact temperature
-12~60℃
Measurement mode
Emission-Echo Mode, Echo-Echo Mode, Quick Scan Mode
Data storage
10 sets of 5000 data, dynamically allocated
statistical function
MAX Maximum, MIN Minimum
Operating Time
80h
Operating language
Chinese
Display
128 × 64 Backlight
Host size
130*73*24mm
Weight
Approx. 190g
Application
It is suitable for testing the wall thickness of various plates, pipes, oil tanks, oil pipelines, boiler vessels and their local corrosion and rust
Power
2 * 5 battery
Ambient Temperature
-20~50℃
shutdown mode
You can choose 2 minutes, 5 minutes to automatically shut down or choose not to automatically shut down
probe recognition
Automatic identification probe
Speed of sound measurement
Determine the Speed of sound of unknown materials, and preset the Speed of sound value of 9 common materials
Gain range
Automatic; manually adjustable
unit system
mm/inch
display content
Measured value, Speed of sound, Probe model, Battery level, Current data set
Interface
USB
MiniTest 440
Ultrasonic Thickness Gauge

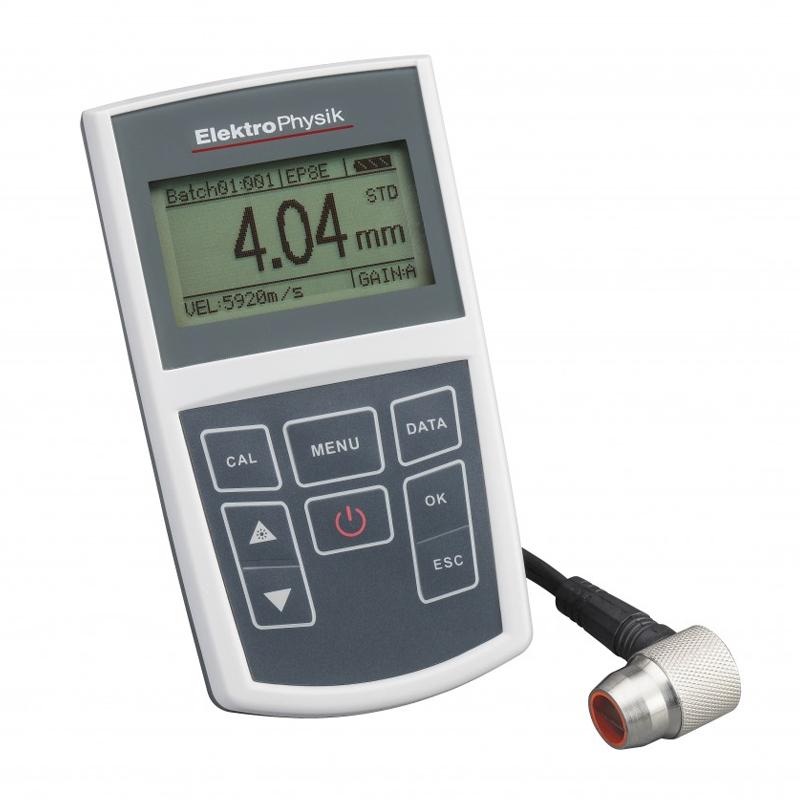

German EPK MiniTest 440 Ultrasonic Thickness Gauge Penetration coating thickness measurement Picture

Introduction

1. High impedance dual element probe;

2. Pulse-echo mode, measuring range is 0.65~500mm (standard probe is 0.8~300mm)

3. Echo-echo mode (measurement through coating), measuring range 3-25mm (available in MiniTest 440 model)

4. Solid anti-static and fire-proof plastic shell.

5. Quickly measure the thickness of metal, plastic, glass, ceramics and other materials.

6. Suitable for use in laboratories and industrial sites.

Applications

● Suitable for detecting wall thickness and local corrosion and rust of various plates, pipes, oil tanks, oil pipelines, and boiler containers.

●  Suitable for product inspection in various industrial sectors such as oil refining, steel, metallurgy, shipbuilding, machinery, chemical industry, electric power, and atomic energy.

plan

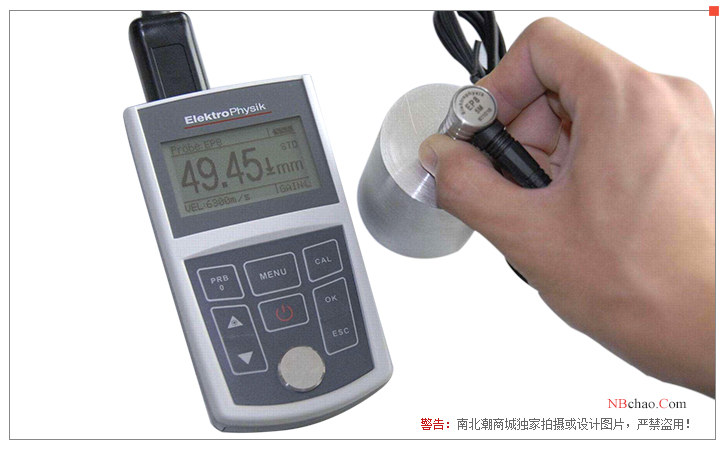

German EPK MiniTest 440 ultrasonic Thickness Gauge display diagram

Optional probe

modelCrystal diameterfrequencyMeasuring rangeOperating temperatureIntroduction
U5.0E8MM5.0MHZ3-25MM(EE); 0.8-300MM(TE)-12~+60℃The 440 comes standard with a probe. The 440 probe has a through-coating measurement mode.
U10.04MM10.0MHZ0.65-20MM-12~+60℃Small diameter probe. Minimum measuring tube outer diameter 10mm
U7.56MM7.5MHZ0.65-50MM-12~+60℃Mainly used for measuring thin walls and small arc surfaces. The minimum outer diameter of the measuring tube is 15mm.
U5.08MM5.0MHZ0.8-300MM-12~+60℃420 and 430 come standard with probes, which are mainly used to measure materials with flat surfaces or large arcs. Minimum measuring tube outer diameter 20mm
U2.012MM2.0MHZ2.0-500MM-12~+60℃Coarse grain probe, mainly used for measurement of coarse grain materials such as cast iron. Minimum measuring tube outer diameter 30mm
U5.0HT13mm5.0MHZ3.0-100MM-12~+350℃High-temperature probes are mainly used to measure materials with temperatures below 350℃. Note: During measurement, the contact time between the crystal and the high-temperature object being measured shall not exceed 5 seconds. The minimum outer diameter of the measuring tube is 25mm.
FAQ
QI want to do a test on the GB/T11344 standard, is this Ultrasonic Thickness Gauge okay?
A Sure
QWhich Ultrasonic Thickness Gauge of EPK minitest series can penetrate the coating thickness measurement?
A Hello, this is the MiniTest 440 model, which can penetrate the Coating thickness gauge, can store 5000 measurements, and has a USB port.
QWhat is the range of the probe standard on the epk Ultrasonic Thickness Gauge 440?
A Hello, the standard probe range is 0.8~ 300mm.
