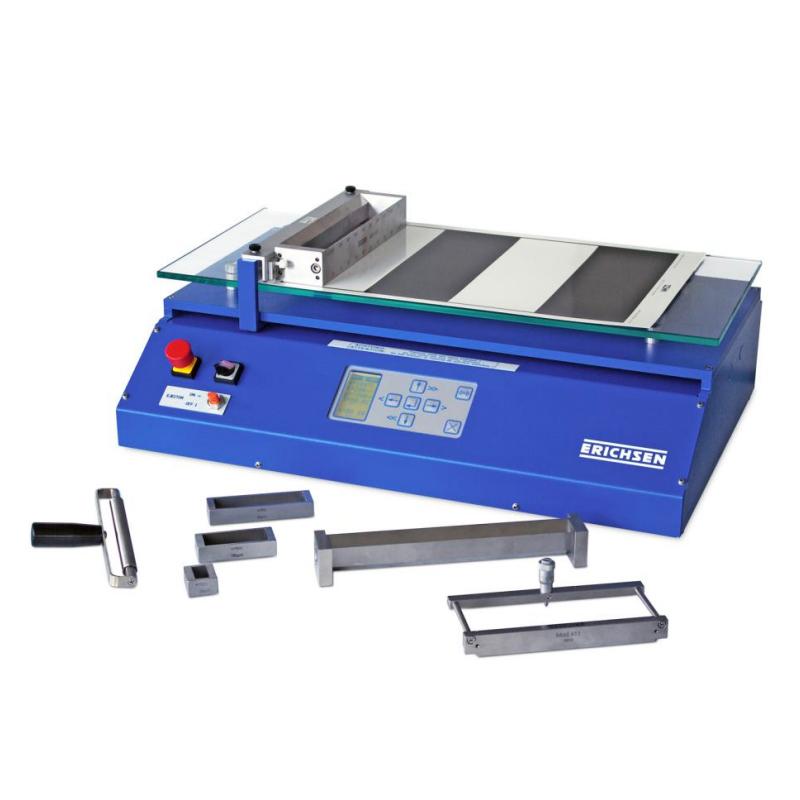

Erichsen510MC Film Applicator
erichsen510MC
Erichsen erichsen510MC Electric Film ApplicatorSPEC
Erichsen erichsen510MC Electric Film ApplicatorDetails
Erichsen erichsen510MC Electric Film ApplicatorPacking list
- SKU
- NB001851
- Spreader trip
- 400mm
- Coating speed
- 0.1 to 19.9 (adjusted at 0.1 mm/s)/20 to 100 (adjusted at 1 mm/s) mm/s
- Temperature range
- RT+~140℃
- Drying time
- 0.1 - 19.9/20 - 108 min/cm. (Up to 3 days)
Features of erichsen510MC electric film coating machine:
● The thickness of the coating is determined by the applicator.
● This machine uses a corrosion-resistant membrane switch control panel to control the required working parameters.
● With the use of stepper motor, the uniformity of the coating film and the reproducibility of the result are extremely high.
● The replaceable platform can be used as a drying time Recorder.
● It can be used with all ERICHSEN applicators.
erichsen510MC specifications:
● The maximum coating stroke is 400mm.
● Coating speed of pole subdivision: 0.1 – 19.9 (adjusted at 0.1 mm/s) / 20 - 100 (adjusted at 1 mm/s) mm/s., the test strip can be clamped to the glass plate or purchased separately with a heated platform.
● Replaceable working planes are: glass plate, groove vacuum cup, hole vacuum cup, and professional film vacuum cup.
● The controllable temperature of the heating platform is from room temperature to the maximum 140C, and the adjustment interval is 0.1C.
● The recorded speed of drying time is: 0.1 – 19.9 / 20 - 108 min/cm. (Up to 3 days)
● Built-in vacuum breaker kit.
Optional
|
|
|
