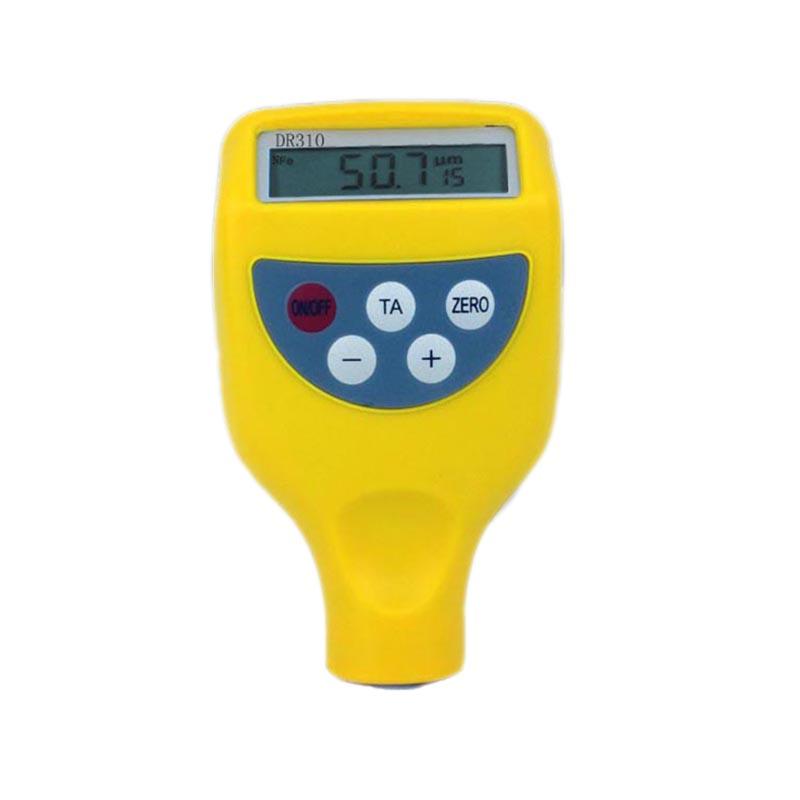

DONGRU DR310 Coating Thickness Gauge for nondestructive measurement of nonconductive coatings on nonmagnetic metal substrates

DR310

Coating Thickness Gauge

Measurement range 0~1000μm, error range +/- 3%, resolution 0.1μm | 1μm, minimum curvature radius convex 5mm; concave 25mm, the thinnest substrate 0.4mm, integrated portable, integrated, handheld, intelligent digital display and other characteristics, fast, non-destructive Coating thickness measurement of nonmagnetic metal surface.

Description

Dongru DR310 coating Thickness Gauge is a portable coating Thickness Gauge with built-in probe type, which uses eddy current thickness measurement method to measure the thickness of non-conductive coating on non-magnetic metal substrates, with a measurement range of 0~1000 microns, and the thinnest substrate that can be measured is 0.4mm.Due to its small size and battery-powered capacity, the DR310 coating Thickness Gauge is ideal for use in the field and other thickness measurement work, is easy to carry, and can also store measured thickness data.

Dongru DR310 Coating Thickness Gauge is an all-in-one eddy current Thickness Gauge, which integrates the characteristics of portable, all-in-one, handheld, intelligent digital display, etc., to quickly and non-damaging measurement of the thickness of non-magnetic metal surface coatings.

Features

Compact integrated design, easy to carry

The operation is simple and the test speed is fast

There are two types of testing: continuous testing (CONT INUE) and single measurement methods

Four statistical functions: maximum (MAX), minimum (MIN), average (MEA), number of measurements

DR310 Coating Thickness GaugeUp to 116 measurements can be stored

It can be connected to a computer for communication, reading out and storing data, saving or printing

There are two types of calibration: zero calibration and two-point calibration

DR310Coating Thickness GaugeBeep indication during operation (single measurement method)

Automatic identification of ferrous and non-ferrous substrates

Low Voltage indication

Manual/automatic shutdown function

Applications

DR310 coating Thickness Gauge is used in manufacturing, metal processing, chemical, commodity inspection and other testing fieldsWidely used.

DR310 Coating Thickness GaugeThe eddy current thickness measurement method can non-destructively measure the thickness of non-conductive cladding (e.g., paint, powder, plastic, rubber, enamel, enamel, anti-corrosion layer, etc.) on non-magnetic metal substrates (e.g., aluminum, copper, stainless steel).

Packing list：instrument case x1, host x1, standard piece x4, aluminum base x1, battery x2, cleaning cloth x1, warranty card x1 attached to the manual, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
