Pushen 0-25/50/100um triple-channel Fineness of Ground Gauge 0-25/0 - 50/0-100
SETriple-channel, range 0~25~ 50~100μm, Applicable standards GB/T 1724, 6753.1, 13217.5 ISO 1524 ASTM D 333, D 1210.
$413.00/piece
PromotionLoading...
Coupon
Model：
0-25/50/100um
Similar products
-
CHINA QXD-100 double-channel Fineness gauge Zirconia ceramic material 0~100μm$ 459.00SE -
TQC VF2107 single-channe grinding Fineness of Grinding Gauge 0~100μm with calibrated certificate$ 1044.00SE -
TQC VF2106 single-channe grinding Grindometer 0~50μm with calibrated certificate$ 1044.00SE -
TQC VF2105 single-channe grinding Fineness of Grinding Gauge 0~25μm with calibrated certificate$ 1044.00SE
Pushen 0-25/50/100um Triple-Channel Fineness of Ground GaugeSPEC
Pushen 0-25/50/100um Triple-Channel Fineness of Ground GaugeDetails
Pushen 0-25/50/100um Triple-Channel Fineness of Ground GaugePacking list
- SKU
- NB018641
- range
- 0-25-50-100µm
- Number of grooves
- 3
- Scale unit
- mm
- Scraper size
- 175*65*15mm
- Groove size
- 12mm
- Applicable standard
- GB/T 1724, 6753.1, 13217.5 ISO 1524 ASTM D 333, D 1210
0-25/50/100um
Triple-Channel Fineness of Ground Gauge
Triple-channel, range 0~25~ 50~100μm, Applicable standards GB/T 1724, 6753.1, 13217.5 ISO 1524 ASTM D 333, D 1210.
use
Widely used in paint, coating, ink, food, medicine and other industries.

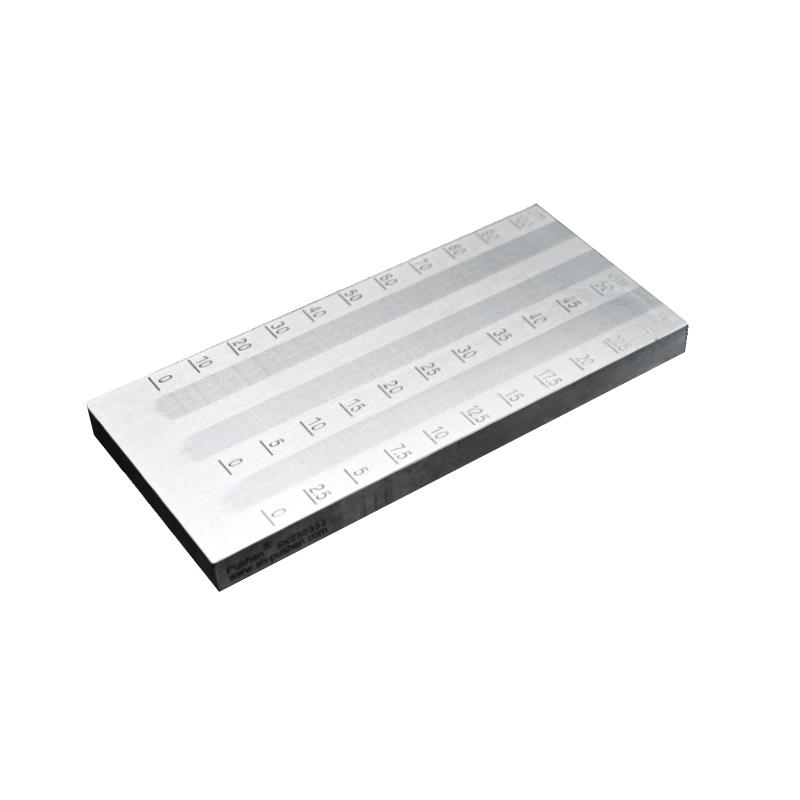

The fineness plate is a flat steel block with grooves on the surface. The depth of the grooves ranges from a maximum value at one end to a zero value at one end. The scale unit indicating the depth of the groove is engraved on the steel block to read the size of the particle value.
The scale unit H is the Hegman scale:
0 Hegman = 100 m
4 Hegman = 50m
8 Hegman = 0 m
Scale unit MIL mil:
1 MIL= 25.4 m
Series Specifications
| model | Number of grooves | groove width | Scale unit | scale range | Dimensions |
| PS 2423 | 2 | 12mm | μm/H/MIL | 0-15/8-6.8/0-0.6 | 175×65×15mm |
| PS 2420 | 0-25/8-6/0-1 | ||||
| PS 2421 | 0-50/8-4/0-2 | ||||
| PS 2422 | 0-100/8-0/0-4 | ||||
| PS 2426 | 3 | μm | 0-25/0-50/0-100 |
Standards
GB/T 1724, 6753.1, 13217.5
ISO 1524
ASTM D 333, D 1210
FAQ
QConform to the detection of fineness of coatings in GB/T 1724.
A
compliant
QThis Fineness gauge that can measure the Fineness of battery paste?
QCan all triple-channel Fineness of Ground Gauge be used for detection in the JT/T821.3 standard?
A
Not necessarily, but this 0-25/50/100um triple-channel Fineness of Ground Gauge can be considered.
QI want to measure the cleanliness of emulsion paint. Is this Fineness Meter suitable?
A
The number of particles in the emulsion paint above the Fineness meter reading is suitable for indicating the cleanliness of the emulsion paint and is therefore appropriate.
