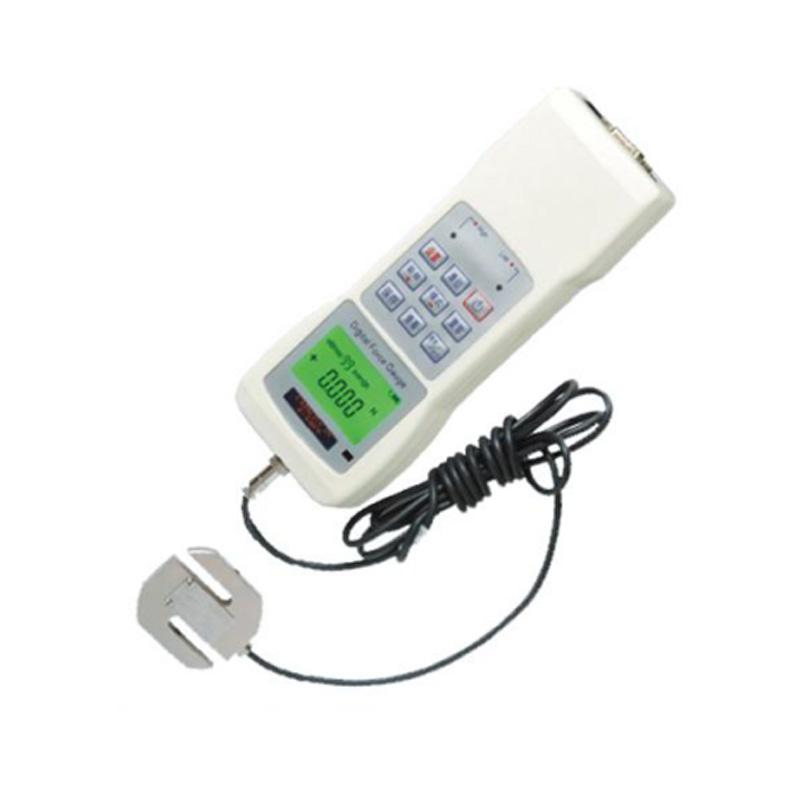

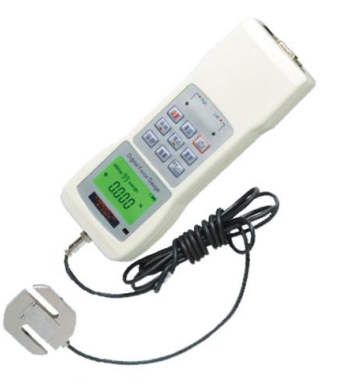

Hypertherm HG-1000 (15111902) Digital Display Force Gauge Portable Load Tester

HG-1000（15111902）

Force Gauge (Digital Display)

Measured value 1000N 100kg 220lb, load Graduation 0.5N, 0.05kg, 0.1lb, Sensors structure Sensors external, error of indication +/- 0.5%, power supply NiMH battery 6V/1500mAh, unit Kgf, N, Lbf.

Introduction

HG series digital display push-pull force gauge is a general-purpose portable push-pull load test instrument, which is suitable for push-pull force load test, insertion force test, destruction test, etc. of various products, and can be combined with various machines and fixtures to form different purposes. Small experimental machine.

main feature

◆High precision and high resolution, high stability, sampling speed up to 120HZ

◆Free setting of upper and lower limit deviation value, automatic sound alarm and level signal output

◆Test direction display (pull+, push-)

◆Segment LCD display with green backlight

◆Store 99 sets of test data, and automatically calculate the average value, maximum value and minimum value of the stored data

◆The three units N, kgf, lbf are automatically interchangeable

◆Peak hold, peak automatic release function (can be set from 0 to 99 seconds)

◆Gravity acceleration value can be set

◆Automatic shutdown without operation (time can be set freely from 0 to 99 minutes)

◆External intelligent charger is used, which can be charged safely and prolong battery life

◆Serial port output (baud rate 9600), which can print 10 sets of stored test data and maximum, minimum, average, pass or fail judgments.

◆It can be connected to the host computer to read, print, delete, analyze and other operations on the stored data

◆Combined with the company's electric testing machine, it can realize various new and practical functions such as stopping immediately after breaking, force value maintenance, applied force limit, fatigue test, etc.

Packing list：Force Gauge x1, 15111902 Sensors X1, Certificate x1, Warranty card x1, Manual x1, Instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
