DLAB MS-H-S Standard Heating Magnetic Stirrer

DLAB MS-H-S Standard Heating Magnetic Stirrer Max. Stirring Capacity 20L, stirring speed 0~1500rpm, Temperature range RT +~ 340 ℃
Model：
Contact
Details SPEC CAT

DLAB MS-H-S Magnetic StirrerSPEC

DLAB MS-H-S Magnetic StirrerDetails

DLAB MS-H-S Magnetic StirrerPacking list

SKU
NB001869
Max. Capacity of stirring
20L
Stirring speed
0~1500rpm
Temperature range
RT+~340℃
Temperature control Accuracy
-
Timer Range
~
Stir size
80mm
Pan size
Φ135mm
Dimensions
160*280*85mm
Panel Material
Pottery and porcelain coatings
Motor type
DC brushless motor
input power
18W
output power
10W
Heating power
530W
Power Supply
100~120/200~240V
Rated frequency
50/60Hz
station number
1 station
display mode
Scale
RPM display resolution
-
Heating power
500w
Temperature control Accuracy
-
Safety protection temperature
350℃
Temperature display
Scale
Temperature transducer
N/A
External temperature transducer temperature control Accuracy
-
Waste heat warning function
N/A
Data Interface
N/A
Protection level
IP42
Allowable environment temperature
5~40℃
Allowable Relative Humidity
80%
MS-H-S
Magnetic Stirrer

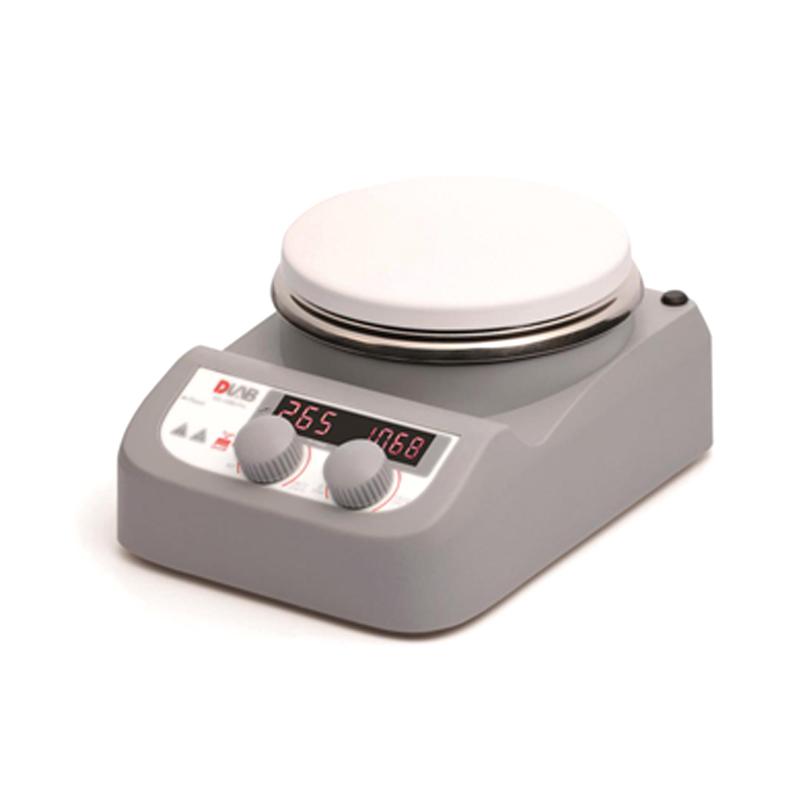

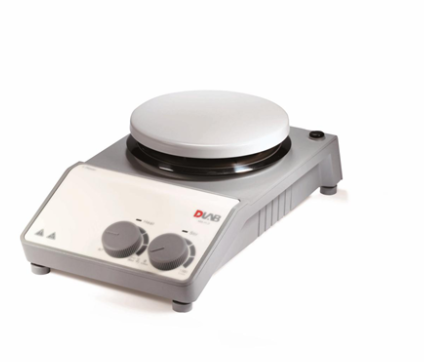

DLAB MS-H-S Standard Heating Magnetic Stirrer Picture

MS-H-S

The maximum heating temperature is 340°C;

Stainless steel ceramic coated working disc is resistant to high temperature and corrosion;

Independent safety circuit, automatically stop heating when the safety temperature is exceeded;

The brushless DC motor is maintenance-free, and the speed is stable and precise and controllable;

Strong magnetic magnet to effectively prevent the stir bar from escaping;

IP42 protection class to ensure longevity and safety
