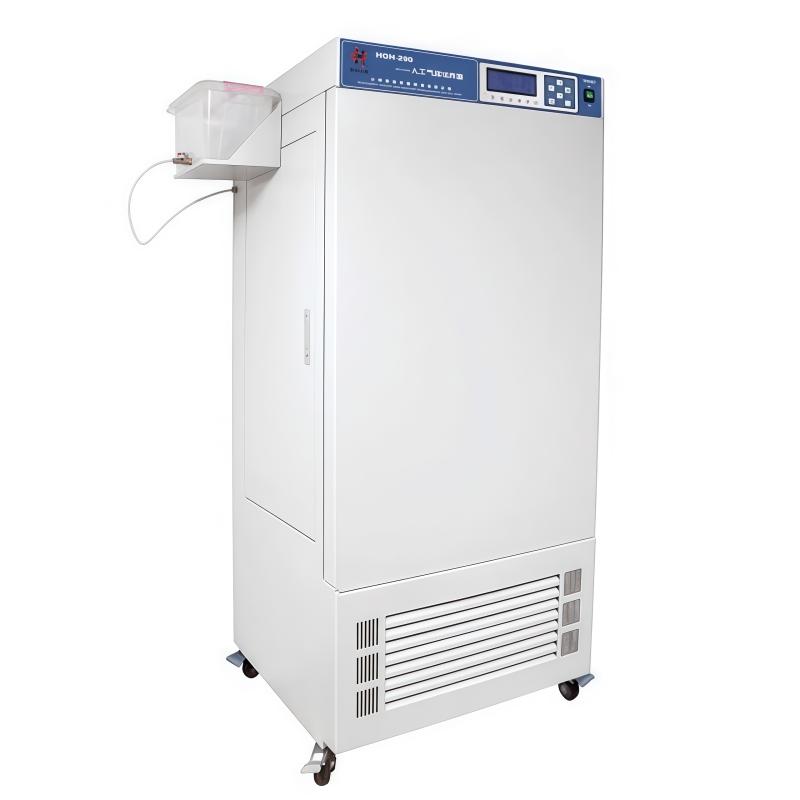

HUITAI HQH-800 Environmental Chamber lighting chamber 800L fluorine-free refrigeration, three-sided lighting

HQH-800

Environmental Chamber

Using stainless steel liner without fluorine refrigerant and mirror, temperature control fluctuation +/- 1 ℃, with three-sided lighting system, light intensity adjustable six levels, support 99 cycles program control, can run continuously for no less than 360 hours.

Overview

It is widely used in microbial tissue cell culture, seed germination, seedling breeding test, plant cultivation, insect and small animal breeding, etc. It can accurately simulate different environmental and climatic conditions.

Features

1) Humanized design

⊕Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

⊕ Use 134a fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!

⊕Mirror stainless steel liner is adopted, the semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box is adjustable.

⊕Double-layer door structure is adopted, which has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

2) Quality Assurance

⊕Adopt international brand compressors, self-developed compressor cooling system, which can effectively prolong the service life of the compressor.

⊕Using JAKEL pipe flow circulation fan, coupled with a uniquely designed air duct structure, creates a good air circulation system and effectively ensures the temperature uniformity in the box.

⊕Adopt the international good brand humidity sensor, self-designed built-in Water Tank electric heating tube humidification system, effectively guarantee the humidity deviation.

⊕Three-side lighting design, special lamp tube for T4 Incubator, effectively guarantee the light intensity in the box, no dead angle, no omission.

⊕Microcomputer controls temperature, humidity, and illuminance. The temperature can be set according to the presence or absence of light, and it can be set differently day and night.

⊕PID control method, accurate control with little fluctuation, menu-style operation page, easy to understand and easy to operate.

⊕The program has 99 cycles, each cycle is divided into 30 sections, and each section has 99 hours and 99 minutes of cycle steps, which can meet almost all complicated experimental processes.

◆Continuous operation technology

⊕ Continuous operation for a long time, the continuous working time is not less than 360 hours

◆Independent temperature limit alarm system (optional)

⊕If the temperature exceeds the limit, the operation will be automatically interrupted, and the operator will be prompted by an audible and visual alarm. Ensure the safe operation of the experiment without accidents.

◆Convenient data processing (optional)

⊕Has a USB or RS485 interface, can be connected to a printer or a computer, and can record changes in temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

Packing list：Host X1, shelf X3, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
