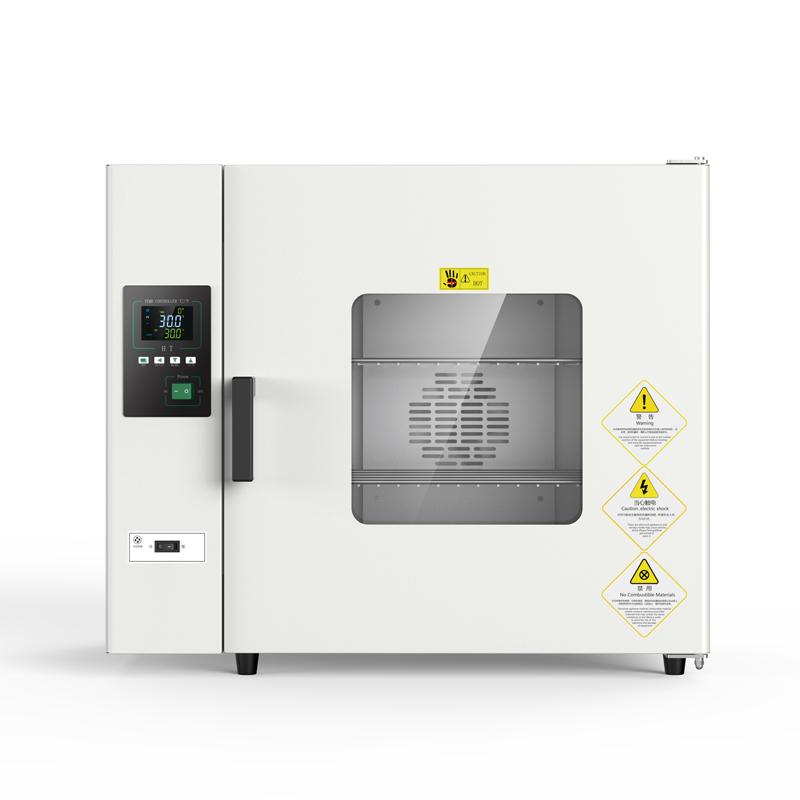

HUITAI PH-030A dry culture dual-use box, volume 30L

PH-030A

Dry culture dual-use box

Temperature range foster: RT + 5~ 82 ℃; drying: 80~ 250 ℃, Temperature Fluctuation for incubator: +/- 0.5 ℃/for drying oven: +/- 1 ℃, Temperature resolution 0.1 ℃, Volume 30L, Inner chamber dimensions 340 * 330 * 320mm, shelf (std.) 2pcs, Timer Range 1~ 9999min, Power supply voltage AC220V 50Hz, Input Power 850W, Ambient Temperature RT + 5~ 35 ℃, Dimension 625 * 540 * 500mm.

Introduction

The new generation of PH series drying/cultivation dual-purpose box has the characteristics of high quality, reliability and safety. The new type of drying/cultivation dual-purpose box adopts fan for forced air convection, which is directly helpful to universities, scientific research and production, and Provides a reliable guarantee.

Features

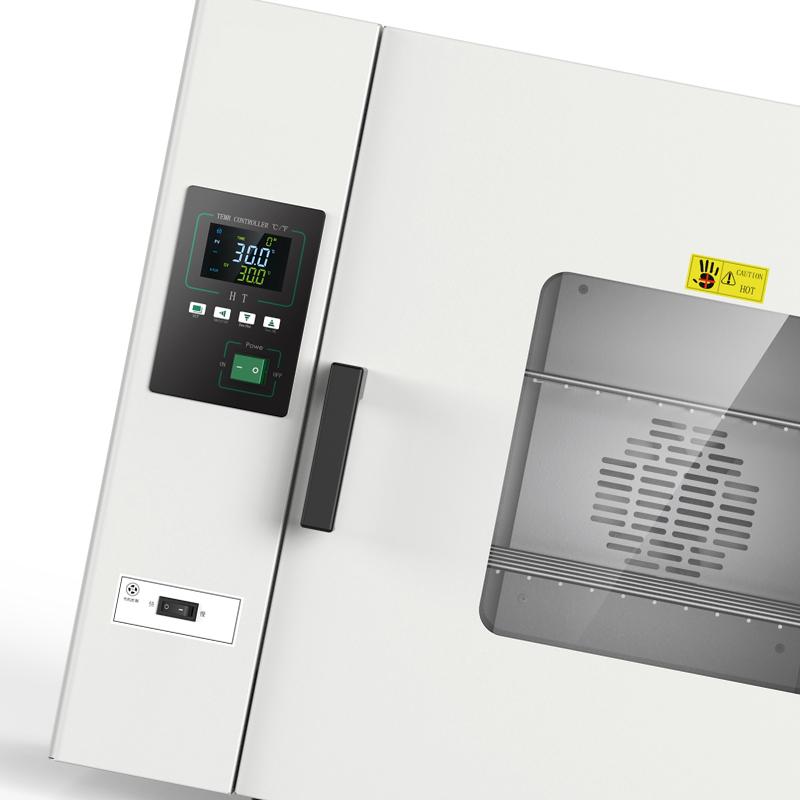

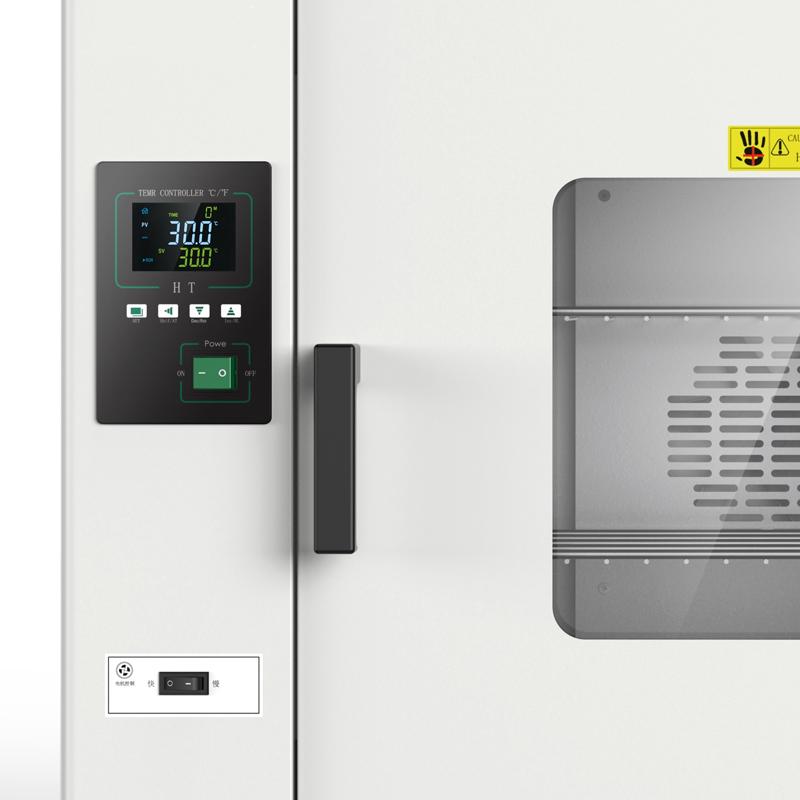

• The screen is liquid crystal display, multiple sets of data are displayed on one screen, and the menu-style operation interface is easy to understand and easy to operate.

• The fan speed control method is adopted to improve the temperature uniformity of the studio.

• The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box , and there is no need for manual adjustment.

• The dry cultivation mode is automatically switched , and it will switch to the dry mode when the temperature is higher than 80 degrees , and the conversion temperature can also be set according to user needs.

• It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display , with timing function , and the temperature control is accurate and reliable.

• The inner tank is made of mirror stainless steel, the shelf bracket can be freely loaded and disassembled, and the semi-square corner design makes cleaning more convenient.

• The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

• The self-designed conversion method of weak control and strong avoids the impact on the system during high current conversion, thereby improving the reliability of the product.

• The double-door structure has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

• Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, ensuring the safe operation of the experiment without accidents. (optional)

• With RS485 interface, it can be connected to the Recorder and computer , and can record the changes of temperature parameters. (optional)

Packing list：Host X1, shelf X2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
