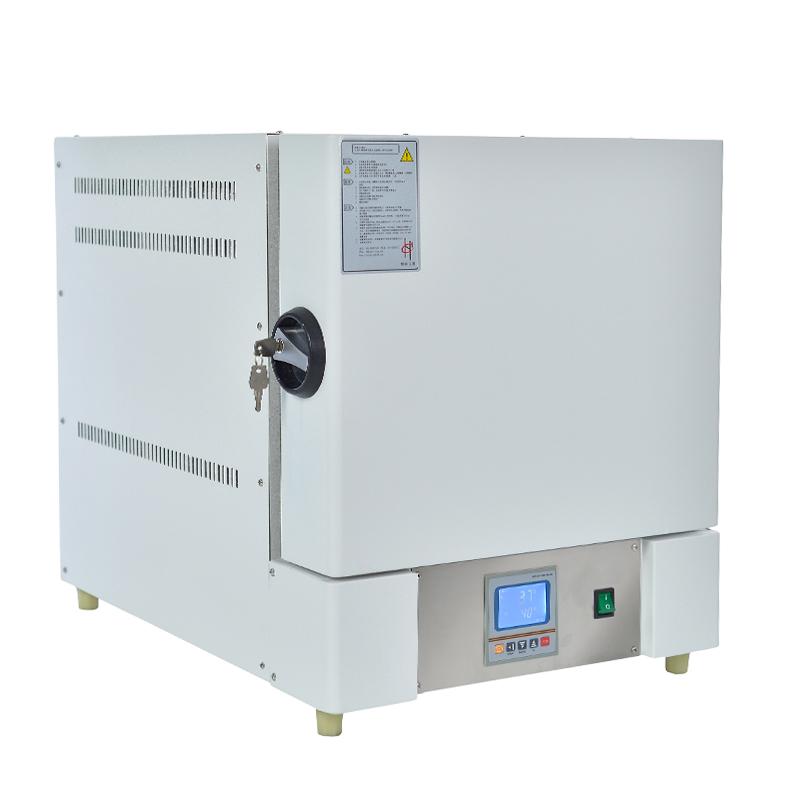

HUITAI 8-12T ceramic fiber muffle furnace temperature 1200 ℃ volume 36L

8-12T

Ceramic fiber muffle furnace

Maximum temperature 1200 ℃, heating workpiece resistance wire, furnace material ceramic fiber, furnace volume 36L, Heating power 8KW, temperature control accuracy +/- 1 ℃, furnace size 300 * 400 * 300mm

Introduction

Muffle furnace is used for dry pretreatment of samples in analysis laboratories, melting experiments in metallurgical laboratories, annealing, quenching and other experiments in heat treatment departments, and heating auxiliary equipment required for other occasions that require high temperature. It is widely used.

The integrated muffle furnace is a new high-end product developed and produced by Huitai Company. This product integrates the furnace body and the control part better, greatly reducing the occupied space.

Features

The integrated design of the whole machine, large-screen LCD display, multiple sets of data can be displayed on one screen, beautiful and elegant, and easy to operate.

Intelligent PID high-precision temperature control realizes no power loss.

Imported HRE ultra-high temperature alloy heating elements have long service life and effective energy saving.

The heating speed is fast, and it takes less than 25 minutes to rise from room temperature to 1200 °C.

Less heat pollution, new ceramic fiber heat insulation material is used, and the furnace body and shell adopt air heat insulation structure, so the surface temperature rises and falls. After raising the temperature to 1000°C and maintaining it for 1 hour, the surface of the shell will not be hot (about 50°C).

Precise temperature control, with a variety of thermostats to choose from, after entering the holding state, the temperature fluctuation is small (temperature control accuracy ±1°C, temperature uniformity ±5°C), using P-type multi-step thermostat, each working Step temperature rise and fall slopes can be preset.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
