DLAB OS40-Pro LCD numerical control overhead electronic Stirrer 40L

The DLAB OS40-Pro overhead electronic Stirrer uses an LCD display Rotation speed with overload protection. The OS40-Pro has a Speed range of 50 to 2200rpm and a maximum stirring viscosity of 50000mPa · s.

DLAB OS40-Pro (set) Numerical control overhead electronic StirrerSPEC

DLAB OS40-Pro (set) Numerical control overhead electronic StirrerDetails

DLAB OS40-Pro (set) Numerical control overhead electronic StirrerPacking list

SKU
NB001879
Processing Capacity
40L
Input Power
120W
Input Power
100W
Rated Voltage
100~240V
Rated Frequency
50/60Hz
Power
130W
Speed range
50~2200rpm
Decoration control precision
±3rpm
Rotation speed display
LCD
Rotation speed Display resolution
±1rpm
Max Torque
60N.cm
Torque display
LCD
Safety protection
Overload protection LED light is on
Safety protection
The LED is on.
maximum viscosity
50000mPa·s
Rotary collet clamping range
Φ0.5~10mm
Dimensions
186*83*220mm
Machine Weight
2.8kg
Protection level
IP21
Environmental temperature
5~40℃
Relative Humidity
80%
Interface
RS232
OS40-Pro (set)
Numerical control overhead electronic Stirrer

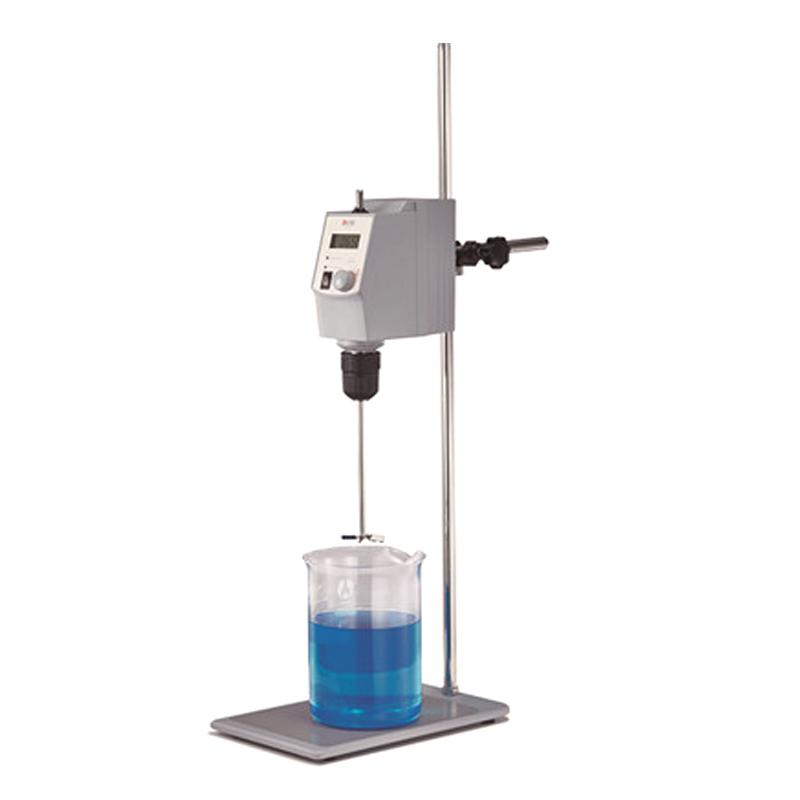

DLAB OS40-Pro LCD numerical control overhead electronic Stirrer 40L Picture

Advantages:

  • Capable of high-load, ultra-long continuous work, outstanding performance.

  • The speed range is wide from 50 to 2200rpm, which can be used at a constant speed, and the high-low speeds can be accurately controlled.

  • Brushless DC motor, low noise, maintenance-free.

  • The LCD displays the set value and actual value of the rotational speed, and can monitor the rotational speed and torque in real time.

  • The torque can be automatically adjusted according to the change in the viscosity of the sample.

  • Overload protection: overload automatically stops to ensure safe operation.

  • Sample spillage prevention: Smooth start-up, effectively preventing sample spillage.

  • Safety loop setting: the circuit will be automatically cut off in case of abnormality to ensure the safety of users.

  • Abundant extended applications: It can be connected to an external PC through the RS232 data transmission port to control the instrument and record the speed and torque data.

Product display

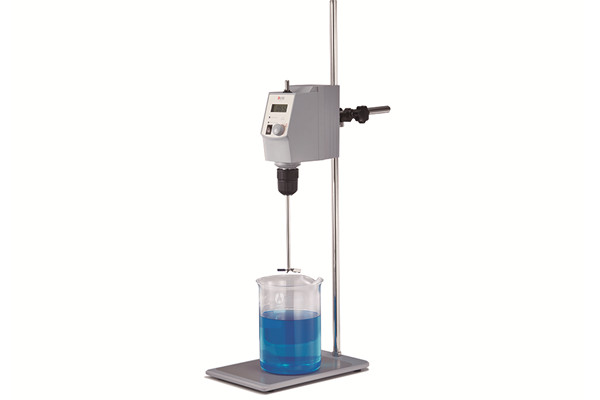

Dalong Xingchuang OS40-Pro overhead electronic stirrer display diagram
