DONGRU DR60A Glossmeter with automatic continuous test function, easy to meet the national standard measurement

SE
Measurement angle 60 °, Measurement range 0~199.9GS, error of indication < 1.2GU, Graduation 0.1GU, measurement port size 14 * 28mm, measurement port shape oval, meet the standards ISO2813, ASTMD523, DIN67530, GB9754, GB9966, GB/T13891, JJG696-2002
$183.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

DongRu DR60A GlossmeterSPEC

DongRu DR60A GlossmeterDetails

DongRu DR60A GlossmeterPacking list

SKU
NB000188
Geometry
60°
Measurement range
0~199.9GS
Error of indication
<1.2GU
Division Value
0.1GU
Measurement port size
14*28mm
Measurement port shape
ellipse
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Operating language
Chinese
Dimensions
110*38*70mm
Weight
300g
Power
Two AA dry batteries (AA)
light source
Domestic (CN) LED long life light source
Stability
±0.4GU
DR60A
Glossmeter
Measurement angle 60 °, Measurement range 0~199.9GS, error of indication < 1.2GU, Graduation 0.1GU, measurement port size 14 * 28mm, measurement port shape oval, meet the standards ISO2813, ASTMD523, DIN67530, GB9754, GB9966, GB/T13891, JJG696-2002
DONGRU DR60A Glossmeter with automatic continuous test function, easy to meet the national standard measurement Picture

Product Description

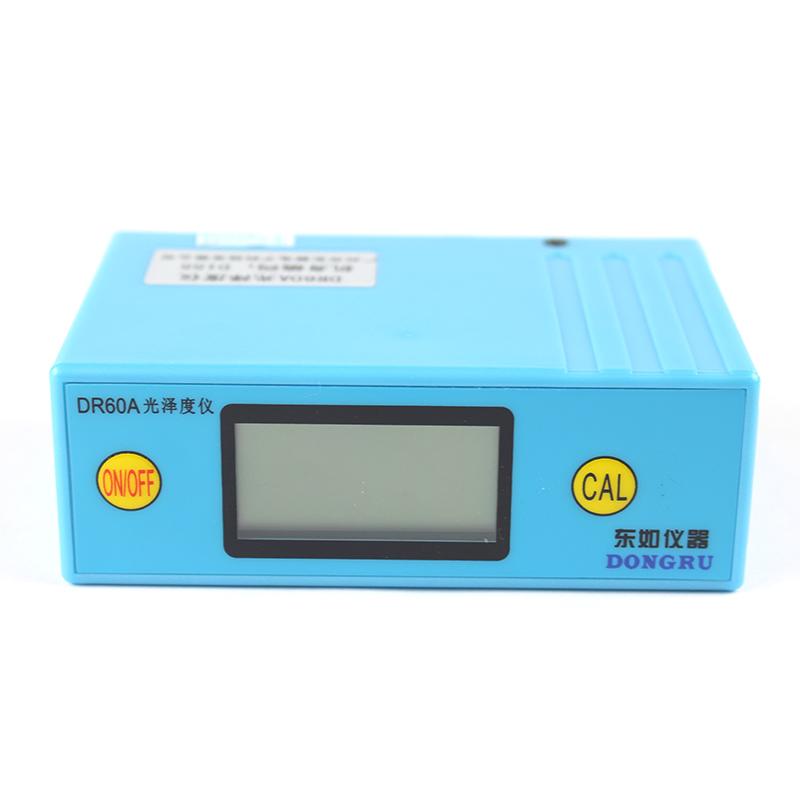

The model of Dongru gloss meter is DR60, which is a small portable gloss meter. It is a portable 60-degree specular gloss meter produced in accordance with the national standard. It has automatic continuous testing function, and the measurement is convenient and accurate.

Features and advantages

Truly portable: small size and light weight.

Large screen operation: large font size, backlight display.

Intelligent Auto: With automatic calibration function.

Fool-like operation: with automatic continuous testing function, it is a real intelligent machine.

Easy adjustment: Built-in adjustment function.

Accurate measurement: high stability, high precision.

Long life: LED long life light source.

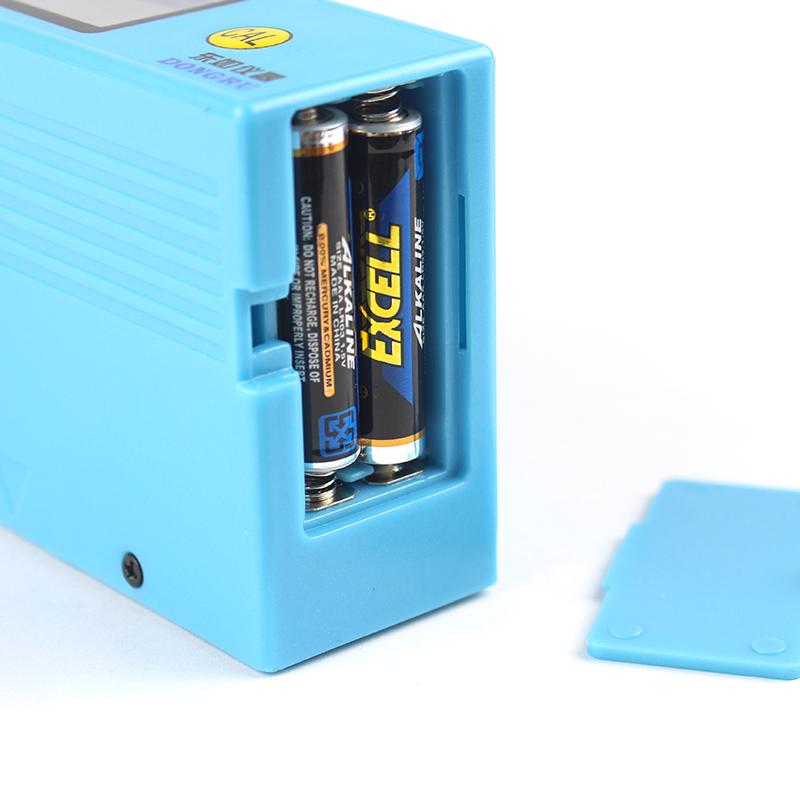

Energy-saving and power-saving: worry-free and effective, two AAA batteries can be used continuously for nearly 60 hours to measure nearly 10,000 data.

Application

Dongru Gloss Meter DR60A and DR61 measure the surface gloss of plastics, paints and coatings, and are suitable for automobiles, musical instruments, home appliances, furniture and other industries.

Used for floor, granite, marble, ceramic tile, ceramic surface gloss measurement, suitable for decoration, construction and other industries.

It is used to measure the surface gloss of ink and paper, and is suitable for printing, packaging and other industries. It is also suitable for the measurement of surface gloss in many other industries.


201406282150275688.jpg 201406282150445110.jpg 201406282150544872.jpg

                                                    Packaging Printing Automobile Home Improvement

201406282151052530.jpg 201406282151128289.jpg 201406282151201004.jpg

                                                       Construction Electronic appliances Coating ink

Attachment list

Outer box

One host of gloss meter

One standard board

A certificate

a cleaning cloth

A copy of the instrument instruction manual

FAQ
QWhat Applications is Glossmeter for?
A Glossiness measurement for plastics, paints, Coating surface, widely used in automotive, musical instruments, home appliances, furniture and other industries, as well as floor, granite, marble, ceramic tile, ceramic surface gloss measurement.
QDoes Glossmeter have Automatic calibration function?
A Yes, the glossmeter has an Intelligent Automatic calibration function that helps maintain measurement accuracy.
QIs there a built-in adjustment function?
A Yes, the glossmeter has a built-in adjustment function to help optimize the measurement effect.
QBattery life of this glossmeter?
A Two AA batteries can last for nearly 60 hours and can measure nearly 10,000 data.
QWhat technology does Glossmeter's Light source use?
A It uses LED Long Life Light source and has a long service life.
QDoes Glossmeter support automated continuous testing?
A Yes, it has automatic continuous testing function, which makes measurement more convenient and intelligent.
QCan this be used to measure furniture paint Gloss?
A Hello, it's OK.
QCan this glossmeter be applied to GB/T1766?
A OK
QDoes this DR60A have any requirements for the area of the tested surface?
A Hello, yes, the measurement window size of DR60A is 14x28mm.
QWhat is the difference between Dongru's DR60A and DR61 models, and is the measurement range the same?
A Hello, the measurement range is the same, the difference between the two models is different in the light source, DR60A uses domestic (CN) light source, while DR61 uses imported light source.
