DLAB OS40-S LED numerical control overhead electronic Stirrer 40L

DLAB OS40-S top-mounted electronic Stirrer uses brushless DC motor, LED display Rotation speed, OS40-S electronic Stirrer Max. stirring Capacity is 40L, with overload automatic stop function, high safety.
Contact
Details SPEC CAT

DLAB OS40-S (set) Numerical control overhead electronic StirrerSPEC

DLAB OS40-S (set) Numerical control overhead electronic StirrerDetails

DLAB OS40-S (set) Numerical control overhead electronic StirrerPacking list

SKU
NB001880
Processing Capacity
40L
Input Power
120W
Input Power
100W
Rated Voltage
100~240V
Rated Frequency
50/60Hz
Power
130W
Speed range
50~2200rpm
Rotation speed control Accuracy
±3rpm
Rotation speed display
LED
Rotation speed Display resolution
±1rpm
Max Torque
60N.cm
Torque display
-
Safety protection
Overload protection LED light is on
maximum viscosity
50000mPa·s
Rotary collet clamping range
Φ0.5~10mm
Dimensions
220*83*186mm
Machine Weight
2.8kg
Protection level
IP21
Environmental temperature
5~40℃
Relative Humidity
80%
Interface
without
OS40-S (set)
Numerical control overhead electronic Stirrer

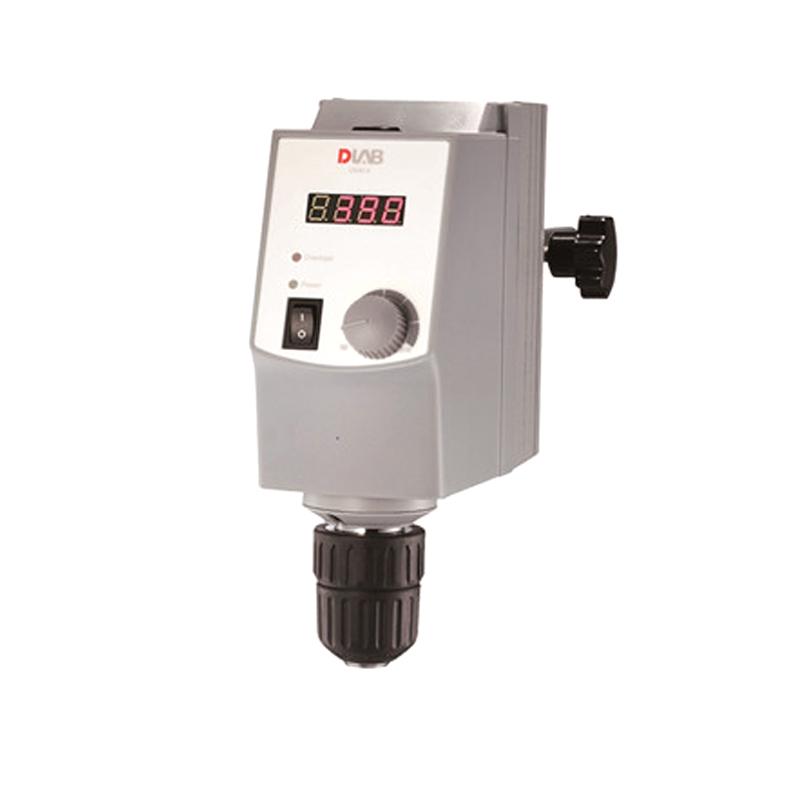

DLAB OS40-S LED numerical control overhead electronic Stirrer 40L Picture

Features

  • Capable of high-load, ultra-long continuous work, outstanding performance.

  • The speed range is wide from 0 to 2200 rpm, and the high-low speeds are accurate and controllable.

  • Brushless DC motor, low noise, maintenance-free.

  • The speed LED display allows for real-time data reading.

  • Overload protection: overload automatically stops to ensure safe operation.

  • Sample spillage prevention: Smooth start-up, effectively preventing sample spillage.

  • Safety loop setting: the circuit will be automatically cut off in case of abnormality to ensure the safety of users.

Product display

Dalong Xingchuang OS40-S overhead electronic stirrer display diagram

FAQ
QHelp me find a numerical control electronic Stirrer that meets the HG/T20569 standard
A This OS40-S numerical control overhead electronic Stirrer is fine!
