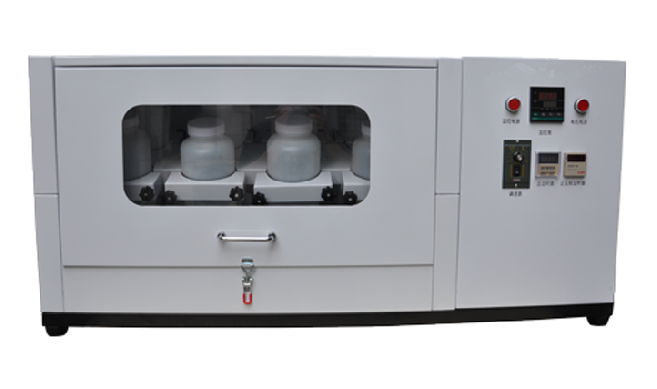

JIECHENG TS-1012W Temperature Control Flip Shaker

TS-1012W

Temperature Control Flip Shaker

Description

The temperature-controlled flip oscillator is a liquid-liquid extraction device used in chemical laboratories. At present, in domestic (CN) laboratories, oscillating extraction or hand-cranked extraction with a separating funnel is commonly used for liquid-liquid chemical extraction. These two methods are cumbersome, the extraction efficiency is low, the manual labor is also high, and the organic solvents used in the extraction will also bring physical harm to the experimenter. To this end, our unit has developed a fully automatic rotary oscillator.

This product is fully automatic Operating Mode, which is composed of three parts: extraction bottle, adjustable frequency motor and time control system. Its working principle is to rotate the extractant from top to bottom and then from bottom to top in the extraction bottle through the adjustable frequency motor, so that the extractant and the water sample are fully combined and collide violently, oscillating while rotating to achieve the purpose of complete extraction.

The automatic rotary oscillator can be widely used in the extraction of surface water, tap water, industrial wastewater and domestic (CN) sewage, mainly for petroleum in water bodies.

Instrument selling point

1. The box body is made of stainless steel and sprayed with plastic, no rust

2. The speed is stable and the temperature control effect is good; A large number of exports to European countries

3. LCD one-screen display, speed, time and other parameters

4. Manufactured by honest enterprises, the products are durable, and the parameters are presented without reservation.

5. After-sales service is guaranteed, and there is after-sales service all over the country (except for townships)

User-friendly design

★ Tilted humanized control panel, large screen backlit LCD screen, more good visual effect.

★ The whole machine has a silent design, electrostatic spraying box, and the shape is luxurious and beautiful.

★ AC induction long-life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance-free.

★ Stainless steel flask clamps. The instrument is never in danger of corrosion.

★ High-performance thermostatic function to avoid evaporation and drying of samples

★ The new synthetic silicon sealing strip is adopted, which can operate at high temperature for a long time, has a long service life and is easy to replace.

★ The hot air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct to improve the temperature uniformity in the working room.

★ Closed extraction, completely simulating artificial hand cranking, 360 degree rotation, making the extraction results more realistic and reliable.

★ The extraction efficiency is greater than 95%. It is fundamentally different from ordinary oscillators, making the extraction data more authentic and credible.

★ The extraction is highly automated, and the extraction speed is fast, and multiple samples can be extracted at the same time in 2 minutes.

Introduction to the control system

★ Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection, overspeed protection, and liquid crystal display, with timing function,

★ Temperature control range: room temperature -65°C, accuracy is not greater than ±0.5°C

★ The line that controls the speed ensures that the shaker starts slowly and accelerates smoothly, ensuring the safety of the experimental samples and the accurate and reliable speed control.

★ Speed: 0-200 revolutions per minute digital display adjustable Rotation mode: forward or reverse

★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions

★ The timing is set for up to 500 hours, and the end point will automatically stop oscillating and give an audible and visual alarm

★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again

Security features

★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment

★ Safety functions: sensor fault alarm, over-current trip protection, etc

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
