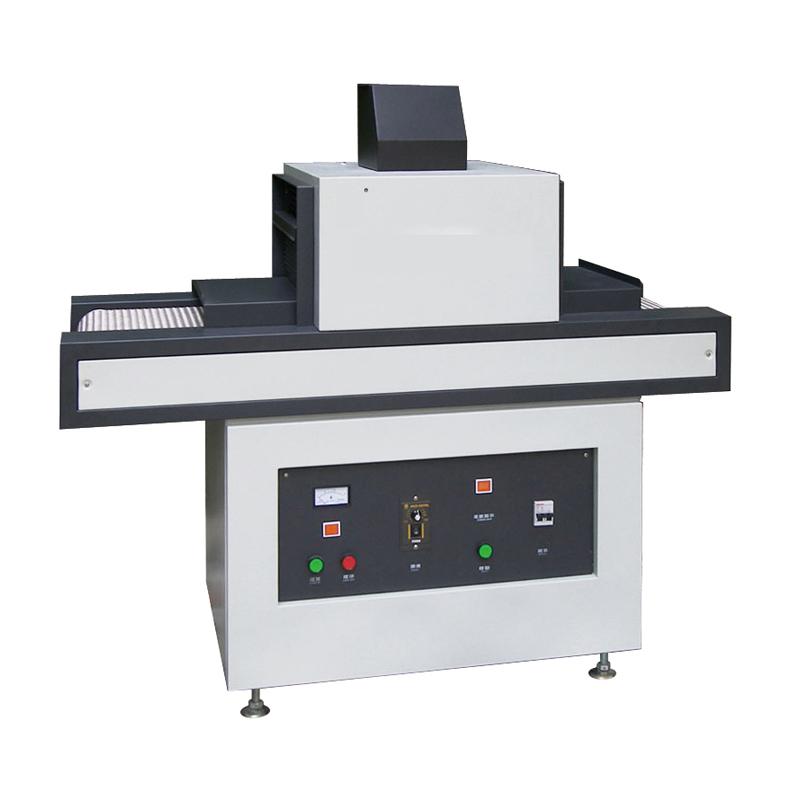

MODERNER CB300 UV curing machine

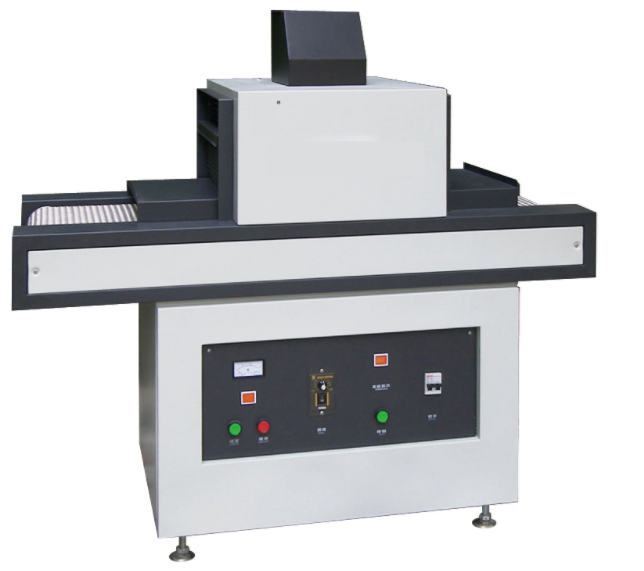

MODERNER CB300UV curing machine is suitable for UV photosensitive Coating, inks, adhesive curing drying, CB300UV curing machine uses a 2KW Light source, mesh belt material is Teflon.
Model：
CB300
Moderner CB300 Curing machineSPEC
Moderner CB300 Curing machineDetails
Moderner CB300 Curing machinePacking list
- SKU
- NB018873
- Instrument Power
- AC220V 50Hz 250W
- Dimensions
- 1250*540*1100mm
- Light source power
- 2kW (1 pcs)
- Conveying speed
- 0-10 meters/minute
- Mesh belt material
- Teflon
- Network bandwidth
- 300mm
- entrance height
- 100mm
- Cooling mode
- Forced air-cooled
CB300
Curing machine
Overview
The curing machine is suitable for instant curing and drying of UV photosensitive coatings, inks, adhesives, coating, injection molding or printing surfaces of various materials. The Principle of the curing machine is a device that uses light sources to cure UV coatings, such as UV ink, UV paint, UV glue, etc. It is characterized by fast curing speed, can achieve instant curing effect, and is environmentally friendly and pollution-free. Compared with the old-fashioned oven drying, it does not volatilize harmful substances such as methanol.
FAQ
QHow long is the lifespan of a UV lamp?
A
China's theoretical lifespan is 600-800 hours, but it is affected by the number of switches, so it should be replaced regularly according to the actual usage.
QWhat is the reason for the poor curing effect?
A
UV lamp aging or UV lamp and the workpiece distance is too large, inks and printing fit too low.
