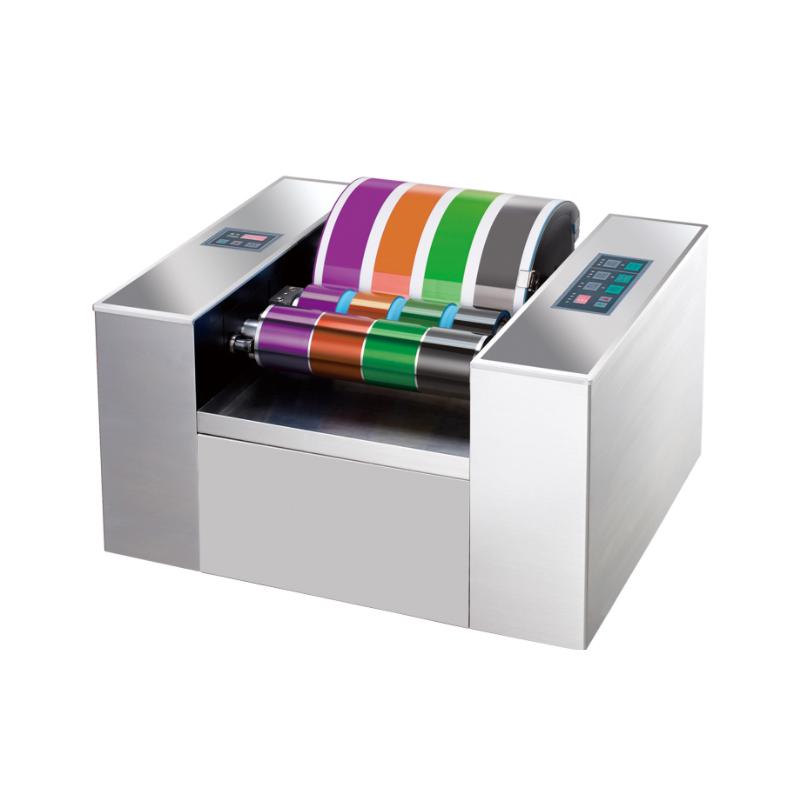

MODERNER NB229T automatic color display machine, display material size 290X250mm
NB229T
Moderner NB229T Automatic color display machineSPEC
Moderner NB229T Automatic color display machineDetails
Moderner NB229T Automatic color display machinePacking list
- SKU
- NB018874
- Input Voltage:
- AC220V 50Hz
- Instrument Power
- 350W
- Effective area of inks color bar:
- 40X220mm (4 bars) 60X220mm (3) 100X220mm (2 bars), optional
- Exhibit size
- 290X250 mm
- Instrument Dimensions
- 555x440x320mm
- uniform ink rate
- Three direct speed regulation, respectively 400, 550, 700 rpm, gear speed variable frequency speed regulation: 0-1000 rpm.
- color development speed
- Three direct speed regulation, respectively 10, 15, 20 rpm, gear speed variable frequency speed regulation: 0-30 rpm.
- ink leveling time
- 1 to 800 seconds, adjustable.
- Net Weight
- About 90Kg
Overview
The color development machine can print on different materials (including book paper, copper paper, matte pink paper, gray board paper, film and tinplate); it is used with ink refilling and has high repeatability; the color development machine is safe and simple to operate.
Features
Ink leveling mode:
1. The ink distribution speed can be switched between automatic and manual, which is suitable for different operating habits and special situations;
2. The soft start mode of the intermediate positioning and non-crossing operation can be set to reduce the uneven color development and the phenomenon of ink flying, and improve the accuracy of color development;
3. Four-stage ink distribution mode time setting (each stage can be set from 0 to 200 seconds), which can be used to set any ink distribution method: serial positioning, intermittent close, fixed close and automatic speed change, more accurate and humane ;
Ink distribution pressure (automatic): can be automatically adjusted according to the wear condition of the rubber roller or the error between the old and new rubber rollers.
Color development pressure (automatic): Automatically adjusts according to the thickness of the color development material (-1~+1 mm), which is more accurate and convenient.
Color development effect: There is a 10mm secondary color development light area, which can more accurately and intuitively compare the differences between two colors when comparing inks (see the appearance diagram of NB229T)
Cleaning: The metal roller does not move in cleaning mode, which is safe and convenient.
Rubber roller: standard configuration of ordinary and UV dual-purpose rollers.
