WENHAO WH-HP-01 glue baking machine, room temperature~ 300 ℃

SE
WENHAO WH-HP-01 glue baking machine normal temperature room temperature~ 300 ℃, limit temperature 350 ℃, continuous baking time is appropriate within 15min, temperature control accuracy +/- 1 ℃, Temperature uniformity ＜ +/- 3%, baking sheet specification φ200, parameter setting Touch screen setting parameters, temperature control form PID temperature control system
$1439.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

Wenhao WH-HP-01 Glue Baking MachineSPEC

Wenhao WH-HP-01 Glue Baking MachineDetails

Wenhao WH-HP-01 Glue Baking MachinePacking list

SKU
NB018942
Temperature range
RT+~300°C
Limit temperature
350℃
Continuous baking time
Within 15min is appropriate
Temperature control Accuracy
±1℃
Temperature Uniformity
<±3%
Heating panel size
f200mm
parameter setting
Touch screen settings parameters
Temperature control form
PID temperature Control system
Power input
AC220V±10V，50HZ
Power
650W
Weight
16KG
Dimensions
365*280*156mm
WH-HP-01
Glue Baking Machine

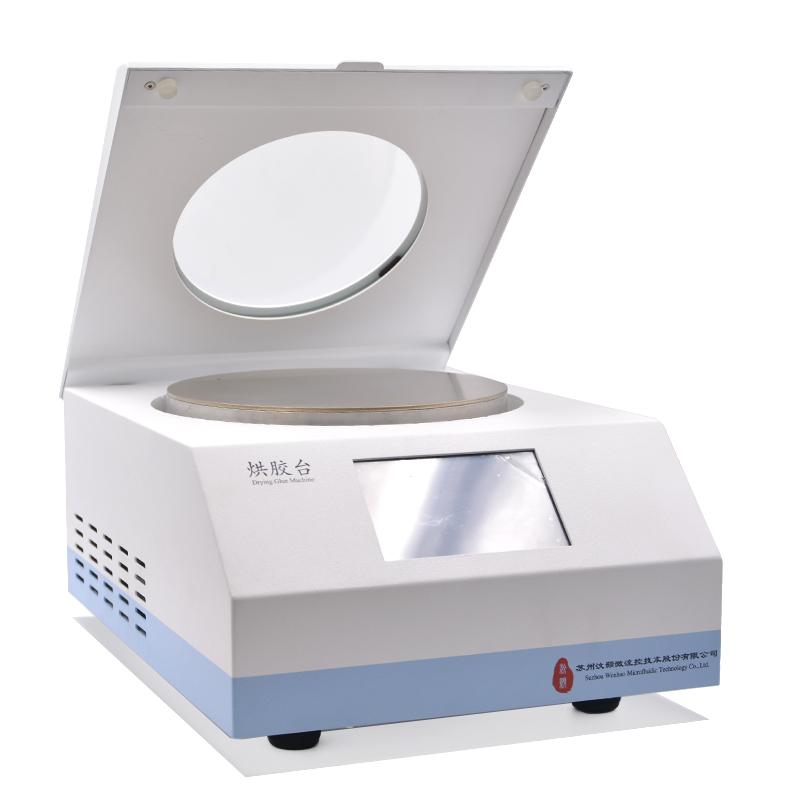

WENHAO WH-HP-01 glue baking machine, room temperature~ 300 ℃ Picture

Introduction of rubber baking table/coking machine

WH-HP-01 baking paste can be used for pre-baking, middle-baking and post-baking in photolithography process. The equipment adopts PID temperature control system to automatically measure and control temperature, and has the characteristics of two-stage automatic temperature rise, fast and uniform drying speed, high temperature control accuracy, etc., and can work continuously and stably for a long time.

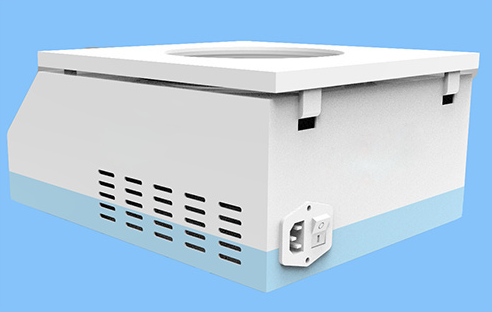

Wenhao WH-HP-01 glue baker display

FAQ
QHow big is the tray of the WH-HP-01 machine?
A Diameter 200mm
QDo you have the glue baking machine involved in ASTMD 4217?
A The WH-HP-01 glue grill will do.
