JFL QND-4 coated four cups

QND-4

Apply four cups

Outflow time 10~150s, flow hole diameter 4mm, capacity 100ml, cup width φ 49.5 + 0.2mm, Environmental temperature 0-50 ℃.

Introduction

QND-Tu 4 viscometer is manufactured according to the relevant regulations in the national standard GB/T1723-93 "Method for measuring the viscosity of paint" and combined with the actual production conditions. This Viscosity Cup is used to measure the conditional viscosity of paint, and is suitable for measuring paint products with a viscosity below 150 seconds. Similar products include QND-1 type viscometer, QND-4A type (bakelite), QND-4B type (aluminum), QND-4D type portable viscometer.

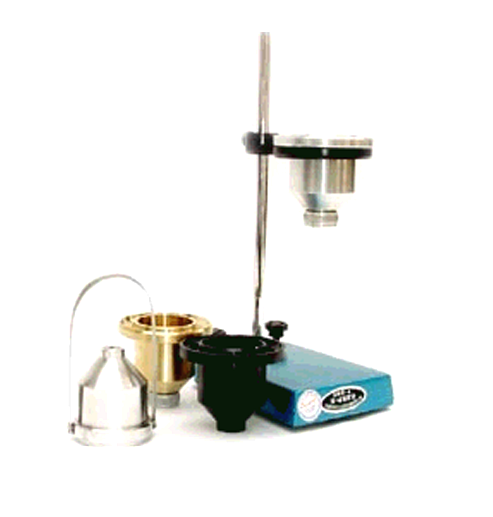

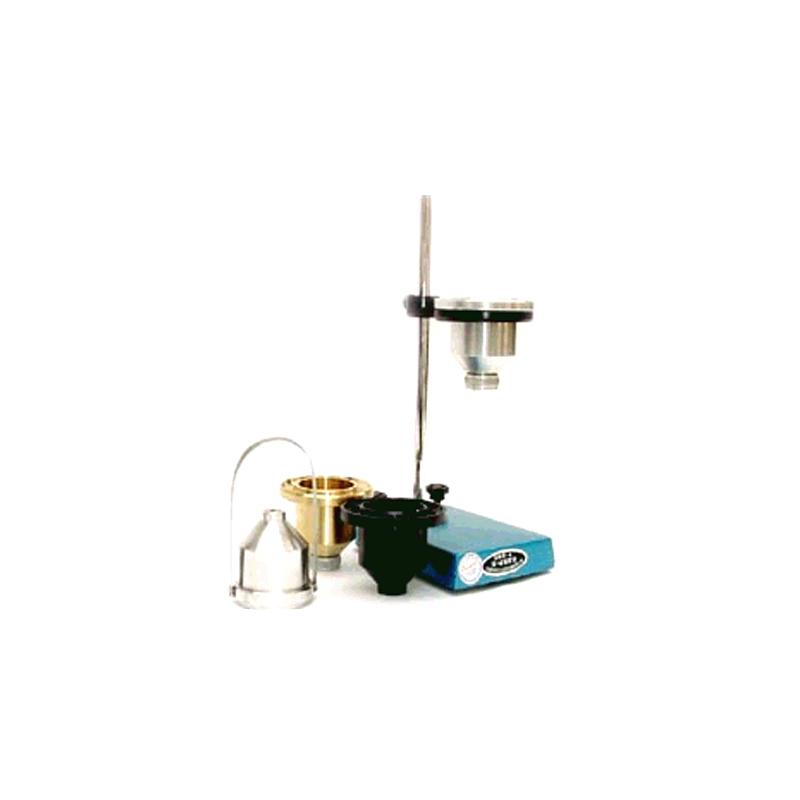

The upper part of the QND-4 viscometer is cylindrical, and the lower part is a conical container. There are three different cups: bakelite, aluminum and copper. But the metal cup shall prevail. Measuring range 10-150s viscosity.

equipment

(1) The capacity of the Viscosity Cup is 100+1ml, the inner diameter is Ø49.5+0.2mm, and the inner cone angle is 81°±15´.

(2) Leakage nozzle: length 4±0.02mm, inner diameter of nozzle hole Ø4+0.02mm.

(3) Thermometer: range 0-50°C, graduation 0.1°C, 0.5°C.

(4) Stopwatch: the scale is 0.2 seconds.

(5) spirit level

*(3), (4), (5) bring your own

The portable viscometer does not use a level, and it is required to pour the sample into the Viscosity Cup with a steady hand. The equipment is the same as that of QND-4.

The viscosity measured by the Tusi viscometer is the conditional viscosity, which is the time for a certain amount of sample to flow out of the aperture with a specified diameter at a certain temperature, expressed in seconds (s), and the flow time of the sample can be expressed by the following formula Seconds (s) converted to centistokes of kinematic viscosity (mm2/S):

When t<23s: t = 0.154v +11 t: Outflow time (s) v: Kinematic viscosity (mm./ s)

23s=<t<150s: t = 0.223v + 6.0 t: outflow time (s) v: kinematic viscosity (mm./ s)

Tu-4 viscometer is suitable for measuring coatings whose outflow time is less than 150 seconds

Packing list：bracket x1, flow cup x1, receiving cup x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
