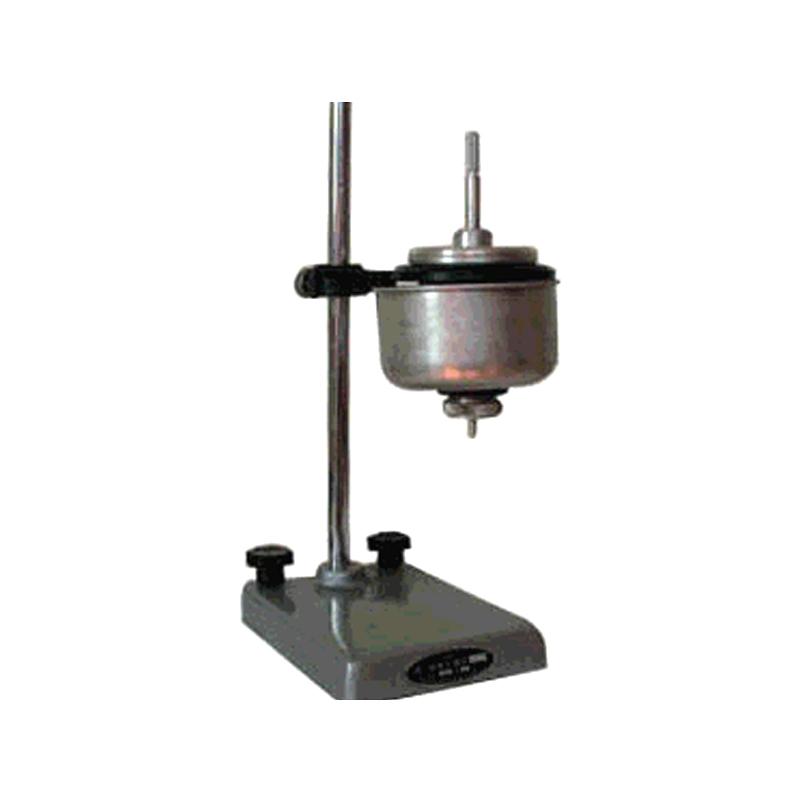

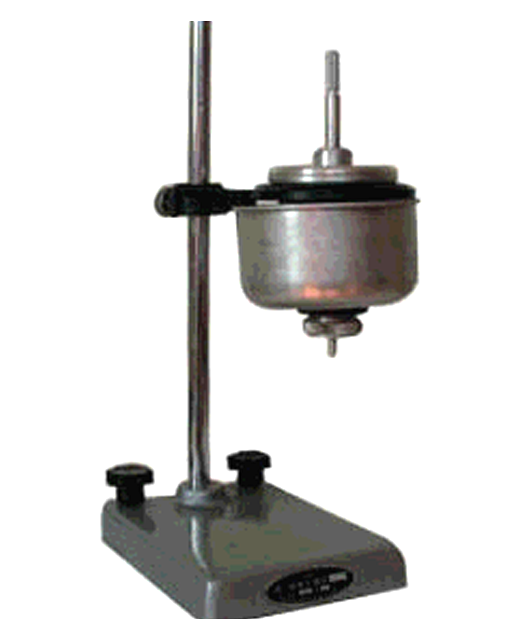

QND-1 Viscosity cup
SE QND-1 Viscosity cup GB/T 1723-93 design. Suitable for measurement Coatings and other related products Conditional Viscosity (outflow time not less than 20 seconds). Under certain temperature conditions, measurement of the time for the full outflow of a quantitative sample from a hole of a specified diameter. Expressed by S.
$161.00/set
PromotionLoading...
Coupon
Model：
QND-1
Similar products
JFL QND-1 Viscosity cupSPEC
JFL QND-1 Viscosity cupDetails
JFL QND-1 Viscosity cupPacking list
- SKU
- NB018968
- Cylinder inner diameter
- φ 51 ± 0.01mm
- Cylinder bottom line to notch height
- 46±0.2mm
- Inner cone angle
- 101°±30
- Flow hole length
- 14±0.02mm
- flow hole diameter
- 5.6mm
- Capacity
- 50ml
- material
- Aluminum Note: To convert the outflow time (s) into kinematic viscosity centimeters (m m./s), please refer to the following formula: t = 0.053v + 1.0 t: outflow time (s) v: kinematic viscosity (mm./s)
QND-1
Viscosity cup
Introduction
Designed according to GB/T 1723-93, it is suitable for measuring the conditional viscosity of coatings and other related products (outflow time is not less than 20 seconds). At a certain temperature, the total outflow of the specimen from the hole of the specified diameter is measured.
FAQ
QWhat is the capacity of the viscosity cup?
A
Hello, the capacity of this viscosity cup is 50ml.
QI want to do a test on the GB/T1723 standard. Is this viscosity cup okay?
A
Sure
Standard
