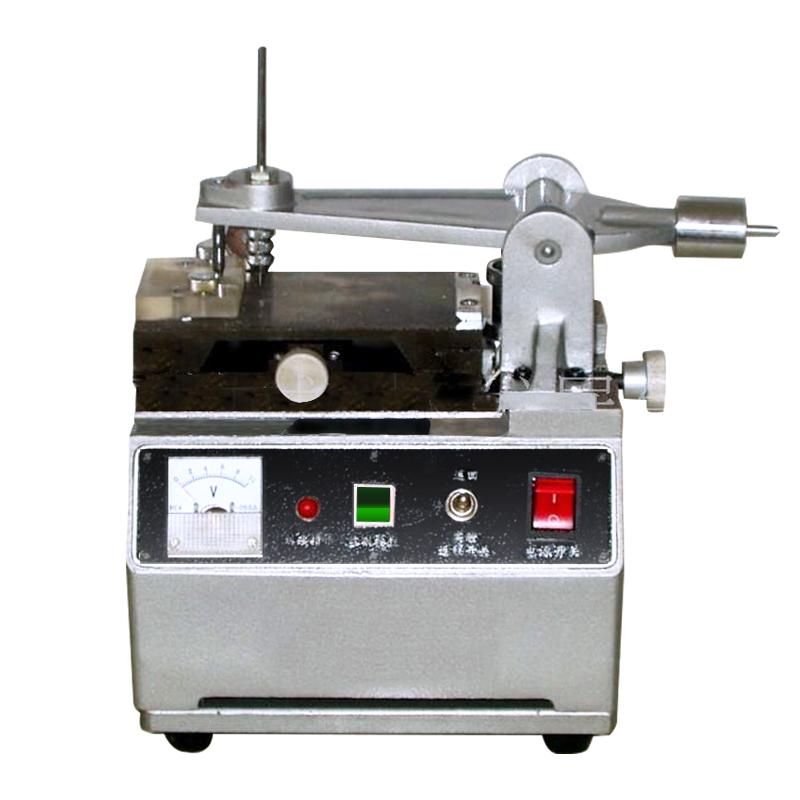

JFL QHZ film scratch test instrument
SEJFL QHZ film scratch test instrument to determine the size of the coating anti-penetration ability evaluation film Hardness, scratch length greater than or equal to 60mm, style speed 30-40mm/s, the diameter of the scribing ball 1mm, loading range 0-2000g.
$618.00/set
PromotionLoading...
Coupon
Model：
QHZ
JFL QHZ Film scratch test instrumentSPEC
JFL QHZ Film scratch test instrumentDetails
JFL QHZ Film scratch test instrumentPacking list
- SKU
- NB018985
- Scribe length
- ≥60mm
- Scribe traverse speed
- 30~40mm/s
- Scribe ball diameter
- 1mm
- Load (loading) range
- 0~2000g
- Dimensions
- 300*200*300mm

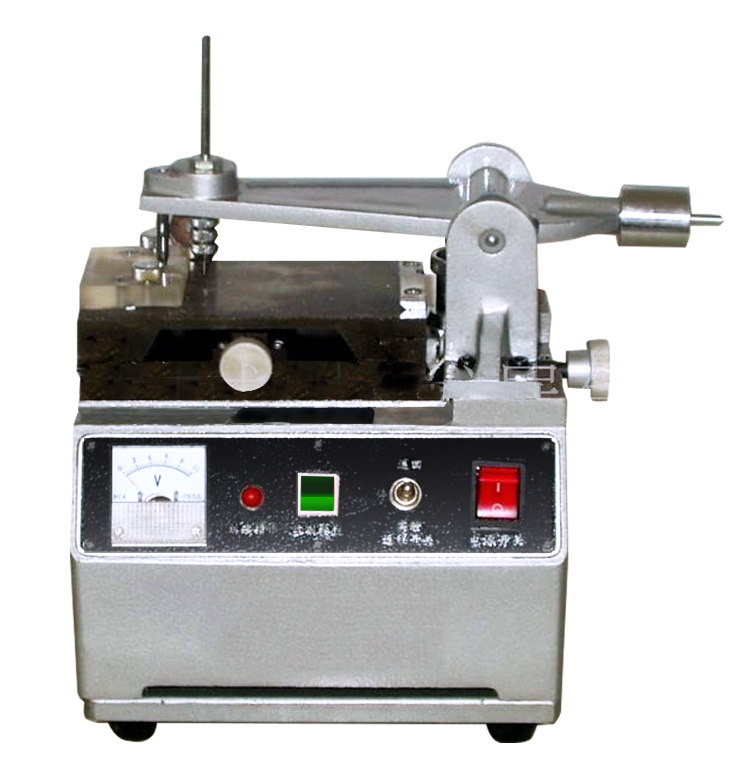

QHZ
Film scratch test instrument
Introduction
Purpose: To measure the scratch resistance of the coating and evaluate the hardness of the coating film
Technical characteristics of the test: The hardness is expressed in terms of the minimum load (anti-scratch value) of the weight when the needle cuts through the coating film
FAQ
QWhat is the sample speed of this film scratch tester?
A
Hello, the sample speed is 30~ 40mm/s.
QDoes the film scratch test instrument meet the specifications of SY/T4113?
A
Model QHZ film scratch test
Standard
- 1ISO FDIS 1518-2010《Paints and varnishes. Scratch test》
- 2 1518-2010《Paints and varnishes. Scratch test》
- 3ISO 1518-1-2023《Paints And Varnishes - Determination Of Scratch Resistance - Part 1: Constant-Loading Method》
- 4ISO 12137-2011《Paints and varnishes Determination of mar resistance》
- 5SY/T 4113-2007《Pipeline coating test method.Part 1 : Gouge resistance test》
- 6GB/T 17657-2013《Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels》
- 7GB/T 15102-2017《Surface decorated fiberboard and particleboard with paper impregnated thermosetting resins》
- 8ISO 1520-2006《Paints And Varnishes - Cupping Test》
- 9ISO 1518-2011《Paints and varnishes - Determination of scratch resistance》
- 10ISO 12137-2-1997《Paints and varnishes - Determination of scratch resistance - Part 2: Method of scribing with tip》
