JFL QBY film pendulum Hardness Gauge

JFL QBY Pendulum Hardness Tester to determine the hardness test of paints coating film, applying standard GB/T1730-93, swing rod mass 120g, Glass value 440 +/-6s, amplitude 5 degrees -2 degrees, Timer Range 999.9s
Model：
Certificate
Contact
Details SPEC
Similar products

JFL QBY Paint film pendulum Hardness GaugeSPEC

JFL QBY Paint film pendulum Hardness GaugeDetails

JFL QBY Paint film pendulum Hardness GaugePacking list

SKU
NB019002
Application standard
GB/T1730-93
Swing rod Mass
120g
Amplitude
5 degrees -2 degrees
Timer Range
999.9s
Dimensions
200*150*570
Remarks
Pendulum
QBY
Paint film pendulum Hardness Gauge

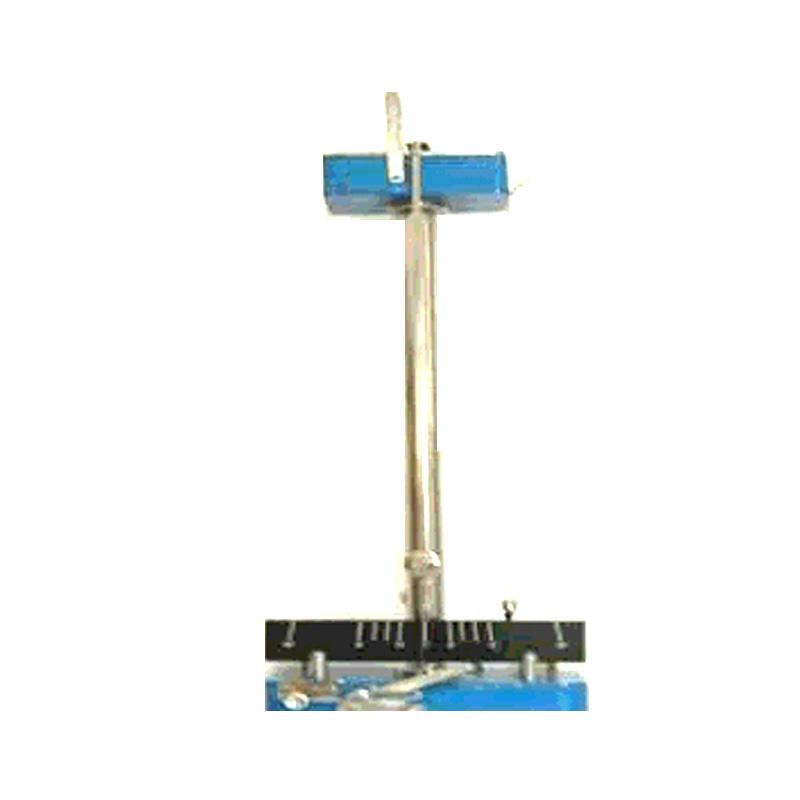

JFL QBY film pendulum Hardness Gauge Picture

Introduction

use:

Test for determining the hardness of paint coating films

Technical characteristics:

The hardness is expressed as the ratio of the time required for the pendulum bar to swing at a specified amplitude on the paint film to the time required for the same amplitude on the glass plate.

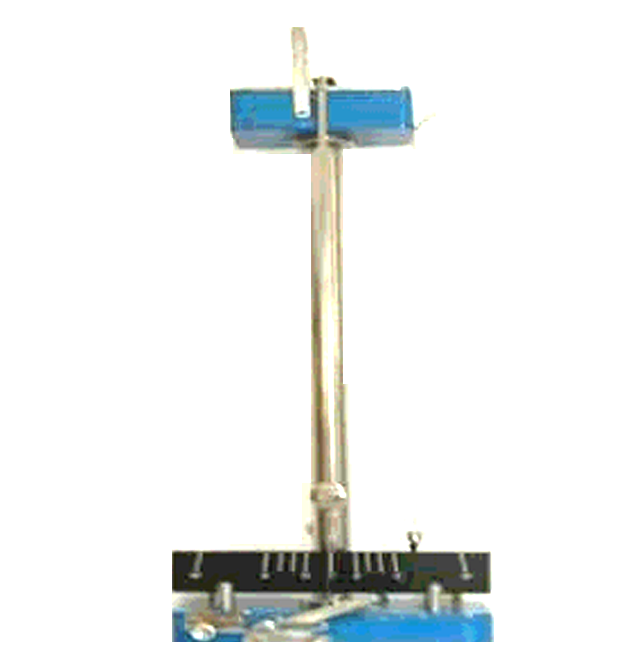

Jinfulun QBY paint film pendulum Hardness Tester

FAQ
QWhat is the amplitude of this QBY film durometer?
A Hello, the amplitude is 5 °~ 2 °.
QAre all Paint Film Pendulum Hardness Testers available for inspection in the JB/T9386 standard?
A Not necessarily, but this QBY film pendulum Hardness Tester can be considered.
