JFL QFZ film adhesion tester

SE
JFL QFZ film adhesion tester execution standard GB/T1720-88 JISK6894, tracing diameter 0-10.5 mm, table stroke 80mm, tracing pitch 1.5mm, weight weight 100-1000g, motor Rotation speed 80r/min, by the circular trajectory method Determination of paint film adhesion performance
$328.25/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

JFL QFZ Paint film adhesion testerSPEC

JFL QFZ Paint film adhesion testerDetails

JFL QFZ Paint film adhesion testerPacking list

SKU
NB019005
Execution standards
GB/T1720-88 JISK6894
trace diameter
0-10.5mm
Trace pitch
1.5mm
Weight weight
100-1000g
Motor speed
80r/min
QFZ
Paint film adhesion tester

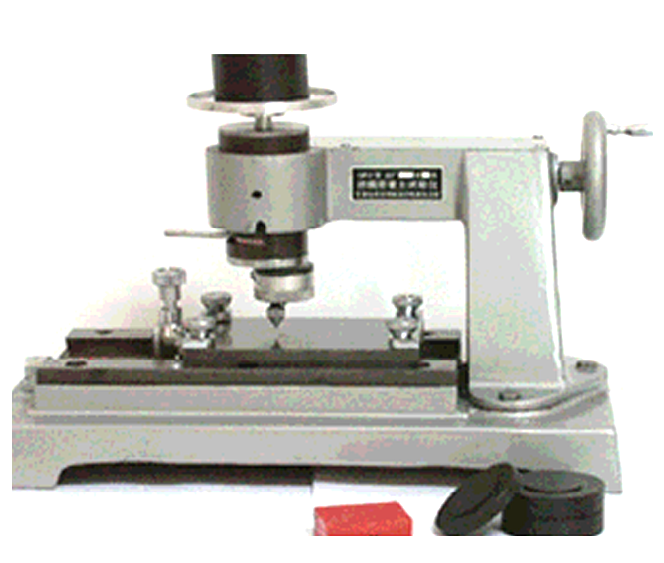

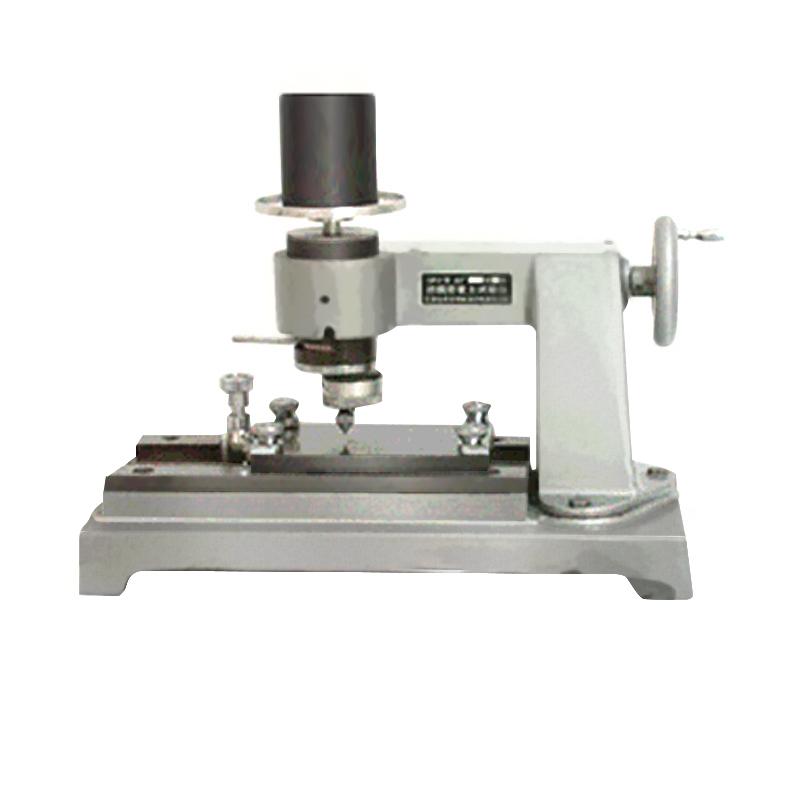

JFL QFZ film adhesion tester Picture

Introduction

Note: manual

Purpose: Determination of paint film adhesion performance by the circle track method

Test technical characteristics: The integrity of the paint film within the scratch range of the circular rolling line is used to evaluate the firmness of the paint film to the substrate according to seven grades

JFL QFZ Paint Film Adhesion Tester

FAQ
QWhat factors affect the results of adhesion testing?
A Scratch tool selection, force and speed control, sample preparation, test environment, and data recording can all affect test results.
QHow to interpret the results of adhesion testing?
A Results are typically evaluated based on scratch size, shape, and coating disbonding, with smaller scratches and less disbonding generally indicating better adhesion.
QDoes this film adhesion tester meet the JB/T5946 standard?
A This paint film adhesion tester is suitable for JB/T5946. Please consult customer service for detailed application definition
