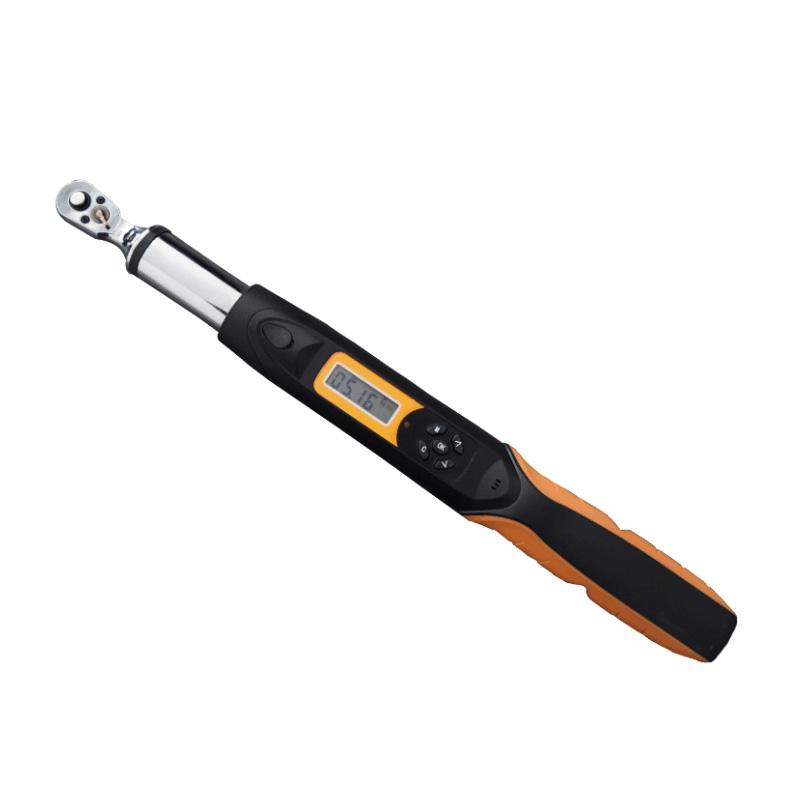

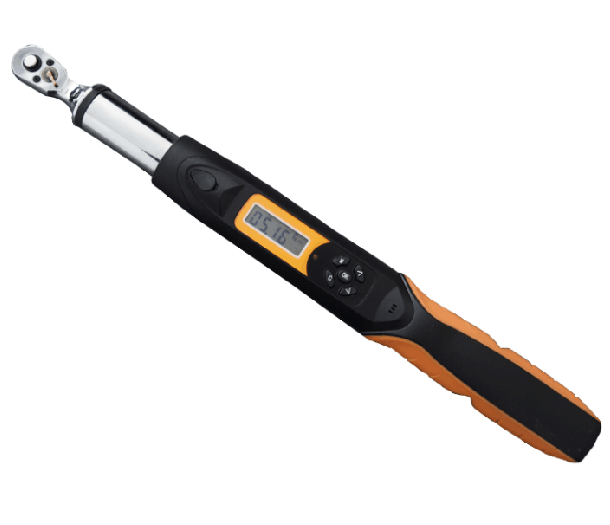

JFL AWG2-030 Digital Torque Wrench
AWG2-030
JFL AWG2-030 Digital torque wrenchSPEC
JFL AWG2-030 Digital torque wrenchDetails
JFL AWG2-030 Digital torque wrenchPacking list
- SKU
- NB019017
- length
- 390
- Communication transmission function
- without
- Data storage Capacity
- 100
- Operation mode
- Peak save (P)/real-time mode (T)
- unit
- N.m、in.lb、ft.lb、kgf.cm
- Ratchet head form
- Two-way ratchet head
- Number of teeth of ratchet head
- 36
- number of keys
- 5
- Battery
- 2 1.5V5 batteries
- operating temperature
- -10~60℃
- Storage temperature
- -20~70℃
- Humidity
- No condensation to 90%
- Drop test height
- 1 meter
- Vibration test conditions
- 10G
- Life test
- 10000 times
Introduction
Overview
Main uses and Application
Digital torque wrenches are different from ordinary torque wrenches in that they have powerful operating functions, including torque setting; unit setting; mode setting; value storage; value clearing; value output and user correction functions. Easy to operate, the requirements on the operator are reduced by installing a digital display. Suitable for bolt tightening and control in the automotive industry, machinery industry, etc.
Features
1 Digital display torque reading value
2 +/-1 or 2.5% accuracy (20~100% of maximum operating range)
3 Can be operated clockwise or counterclockwise
4 Peak hold and real-time mode
5 Buzzer and LCD indication (when the predetermined torque value is reached)
6 Four engineering units (ft.lb, in.lb, Nm, kgf.cm)
7 100 record values ââcan be stored
8 Communication function
9 Automatically shut down after 5 minutes

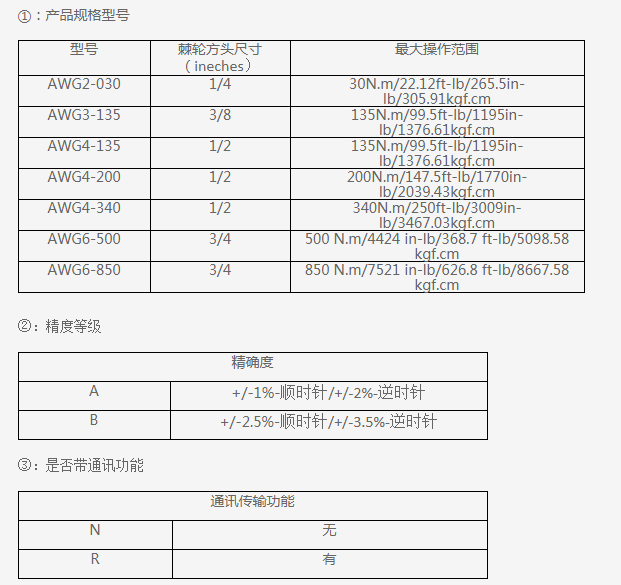

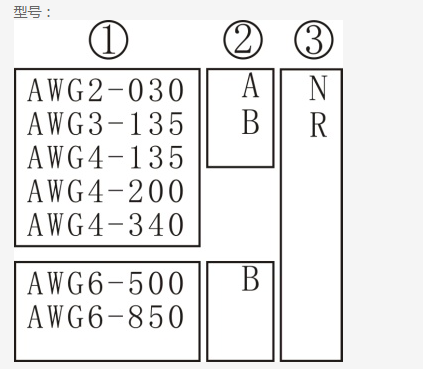

Product model selection
