PERFECT PT-6012-30 oven holding power (30 sets)

Model：
Certificate
Contact
Details SPEC

Perfect PT-6012-30 Oven holding power (30 sets)SPEC

Perfect PT-6012-30 Oven holding power (30 sets)Details

Perfect PT-6012-30 Oven holding power (30 sets)Packing list

SKU
NB019135
Temperature range
RT+~200℃
Control mode
Microcomputer P.I.D. Automatic Temperature Control Calculation
Temperature display Accuracy
0.1℃
Temperature control Accuracy
±0.3℃
Distribution Accuracy
±1%(1℃) at- room100℃
station number
30 workstations
Timer
Automatic Retention time, PLC touch Timer, a total of 30 groups
Safety protection
EGO overtemperature power failure/safety overload switch/test piece all fall automatic heat failure
Machine material
Internal SUS #304 stainless steel plate, external advanced paint treatment
Machine size
About 70 * 30 * 42cm
Machine Weight
About 130KG
Power Supply
1PH，AC220V，50/60Hz，12A
Test plate
30pcs
Connector
30pcs
Weight
1kg*30
PT-6012-30
Oven holding power (30 sets)

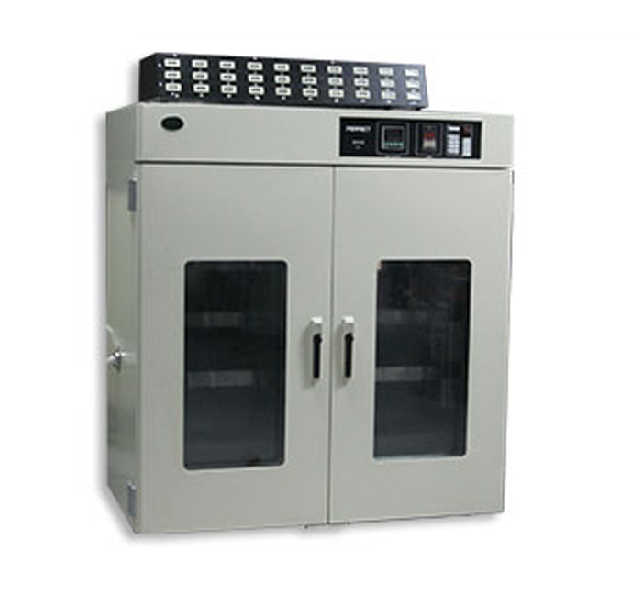

PERFECT PT-6012-30 oven holding power (30 sets) Picture

Introduction

Application: PT-6012 Oven Tape Retention Tester This product does a static load test for the adhesion of the tape, and automatically counts the time that the tape can hold under a certain load and temperature to confirm the aging of the tape adhesion. A 1-inch wide strip of tape is attached to the specified SUS#304 stainless steel plate, rolled back and forth three times by a standard roller of 2kg at a speed of 300mm per minute, the steel plate is hung on the testing machine, and the specified weight is added, and when the tape is dropped from the steel plate, the timer automatically retains the test time to evaluate the durability of the adhesive tape.

PT-6012-30 Oven Retention Force (30 sets)



FAQ
QDo you have the oven retention required by the GB/T4851 standard?
A This PT-6012-30 oven retains power.
