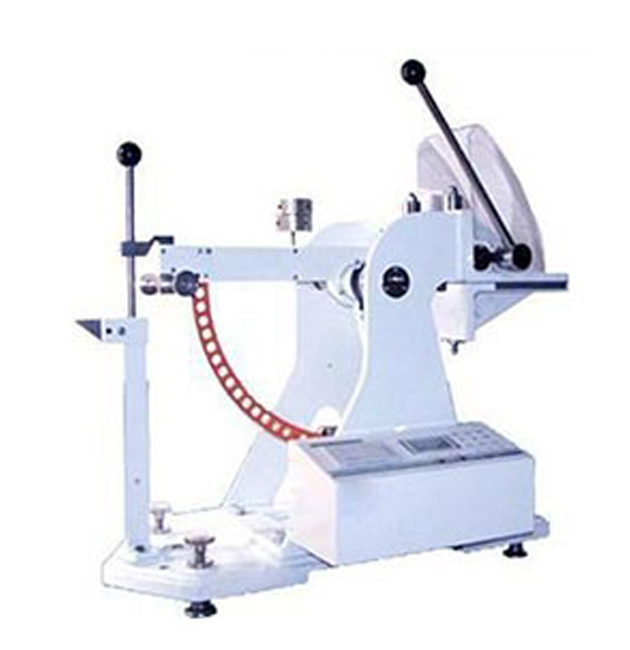

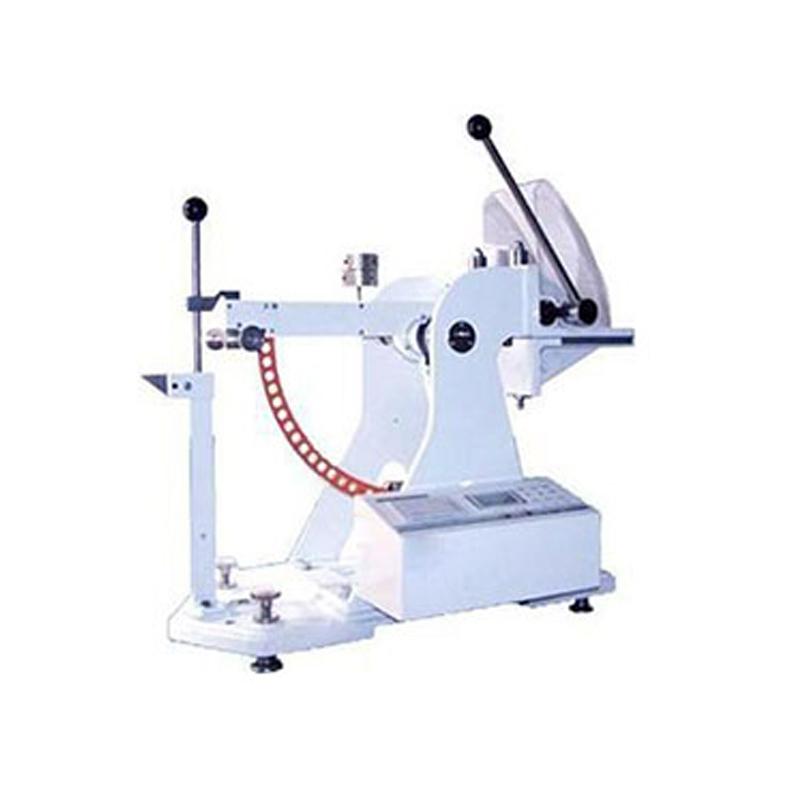

PERFECT PT-8280B Cardboard Piercing Strength Testing Machine
PT-8280B
-
CHINA NBC-8506 Microcomputer Intelligent Penetration Strength Testing Machine$ 1599.00SE -
CHINA ZY-CC Piercing Tester$ 1936.00SE -
PUYUN PY-H617 Microcomputer Piercing Strength Tester 1-48J$ 1750.00SE -
YINUO YN-CCY48 Microcomputer Penetration Strength Tester 1-48J$ 2418.00SE -
HP-CC48B Cardboard Puncture strength Tester$ 2200.00SE
Perfect PT-8280B Cardboard penetration Strength TesterSPEC
Perfect PT-8280B Cardboard penetration Strength TesterDetails
Perfect PT-8280B Cardboard penetration Strength TesterPacking list
- SKU
- NB019197
- Power supply Voltage
- AC220V±10% 2A 50HZ
- Measurement range
- 1~48J
- error of indication
- A file: +/- 0.05J; B file: +/- 0.1J; C file: +/- 0.2J; D file: +/- 0.5J (only guaranteed within 20% -80% of the upper limit of measurement of each file)
- Friction sleeve resistance
- <0.25J
- Number of swing arm swings
- > 120 times
- Angle cone characteristic size
- Three base edges length 60 * 60 * 60mm, height (25 +/- 0.7) mm
- Edge fillet radius
- R(1.5±0.1)mm
- Operating Environment
- Temperature 5~ 35 ℃, Relative Humidity does not exceed 85%.
- Dimension
- 800*500*750mm
- Weight
- 110kg
Introduction
Uses: Electronic cardboard puncture Strength Tester, computer intelligent corrugated cardboard puncture strength Tester, is a special testing instrument for corrugated cardboard puncture resistance (i.e., puncture strength). This instrument has the characteristics of fast compression, automatic reset of the operating handle and reliable safety protection, with liquid crystal display, thermal printer, etc., with a wide range of applications, is cardboard, cardboard, carton production, scientific research and commodity inspection and other enterprises and departments are indispensable common instruments. This instrument meets the following standards: the product is designed with reference to the relevant provisions of ISO3036 (cardboard - determination of puncture strength) and GB2679·7 "Determination of puncture strength of cardboard".
