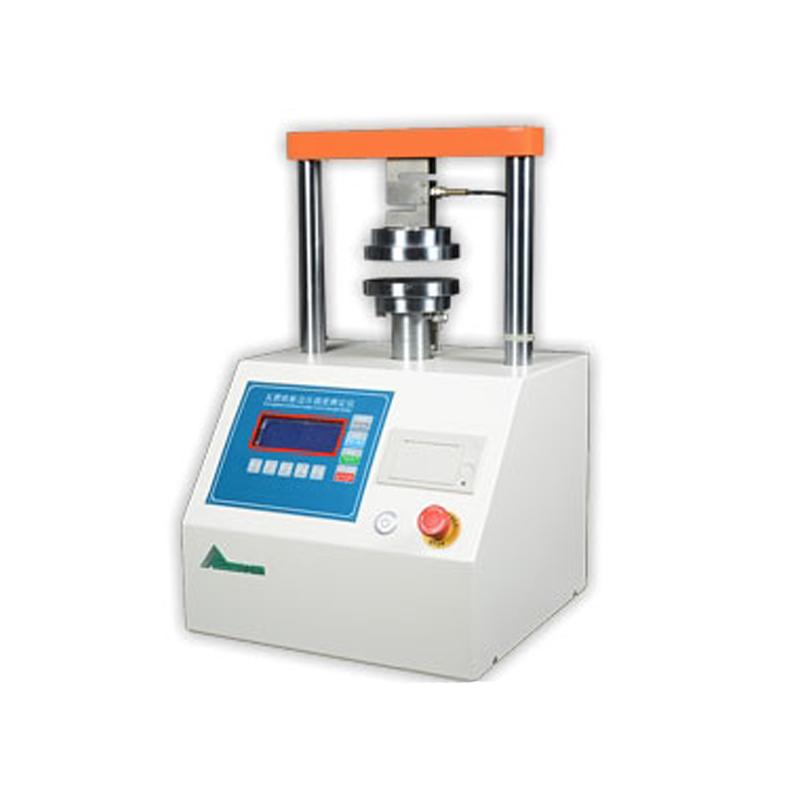

PERFECT PT-8220 Microcomputer Ring Compressive Strength Testing Machine
PT-8220

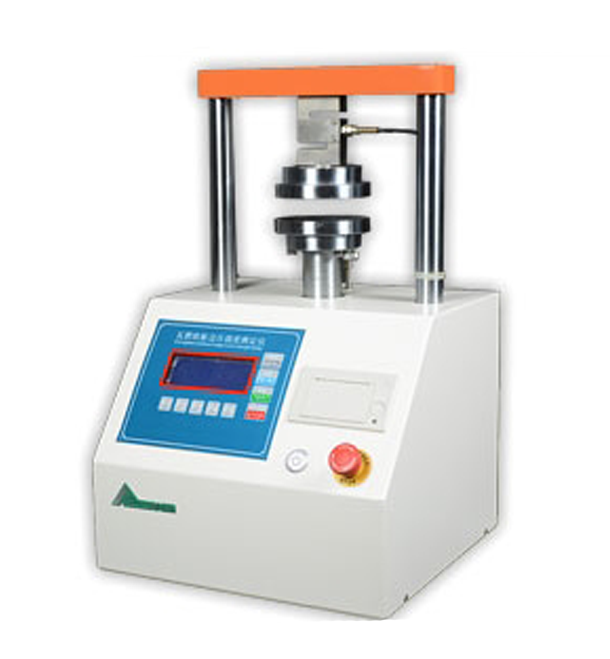

Perfect PT-8220 Microcomputer Ring Compression Strength Testing MachineSPEC
Perfect PT-8220 Microcomputer Ring Compression Strength Testing MachineDetails
Perfect PT-8220 Microcomputer Ring Compression Strength Testing MachinePacking list
- SKU
- NB019205
- Force range
- 60~3000N
- Unit switch
- N, KN, kgf, Lb (can be set arbitrarily)
- Error of indication
- Better than +/- 1.0%
- Force resolution
- 1N
- Upper and lower pressure plate size
- Φ120mm
- Test space size
- 0~100Mm (can be set arbitrarily)
- Pressurization speed
- 12.5mm/min
- return speed
- 0~30mm/min
- Dimensions
- 500*330*560mm
- Weight
- About 45kg
- Power supply Voltage
- 1PH，AC220V，50/60Hz，5A
- Standard configuration
- 1 micro printer, 1 vertical pressure fixture
Introduction
Purpose: Compressive Strength Testing Machine The purpose of this testing machine is to place the sample between the compression plates of the ring compression Strength Tester to test its compressive strength in the vertical direction. It is suitable for testing the compressive strength of paper ring with a thickness of 0.15~1.00mm, the edge compressive strength of corrugated cardboard, the flat compressive strength, the adhesive strength and the compressive strength of the paper tube with a diameter of less than 70mm, etc., and can be used as a satisfactory testing and research equipment for various paper packaging enterprises and technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.
