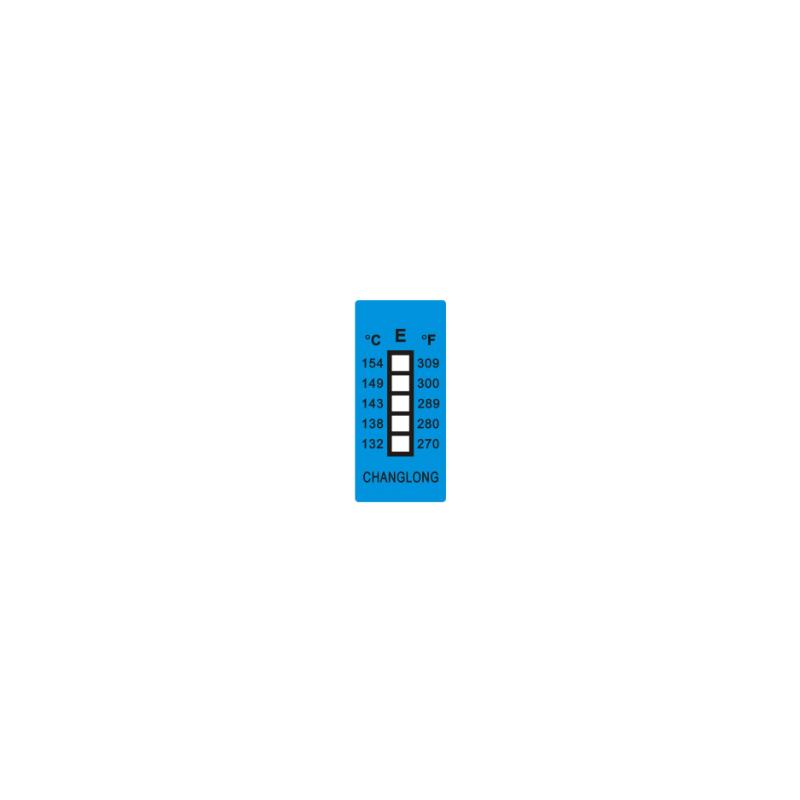

Changlong WDJ-5F temperature paper 132 ℃/138 ℃/143 ℃/149 ℃/154 ℃
SEThe color change method is irreversible, the number of temperature grids is 5, the measurement temperature is 132 ° C | 138 ° C | 143 ° C | 149 ° C | 154 ° C, the specification size is 18 * 40mm, and the shape of the temperature grids is rectangular.
$84.00/piece
PromotionLoading...
Coupon
Model：
WDJ-5E
ChangLong WDJ-5E Thermometer type temperature measuring paperSPEC
ChangLong WDJ-5E Thermometer type temperature measuring paperDetails
ChangLong WDJ-5E Thermometer type temperature measuring paperPacking list
- SKU
- NB019390
- Mode of discoloration
- Irreversible
- temperature lattice
- 5 squares
- Measuring temperature ℃
- 132℃|138℃|143℃|149℃|154℃

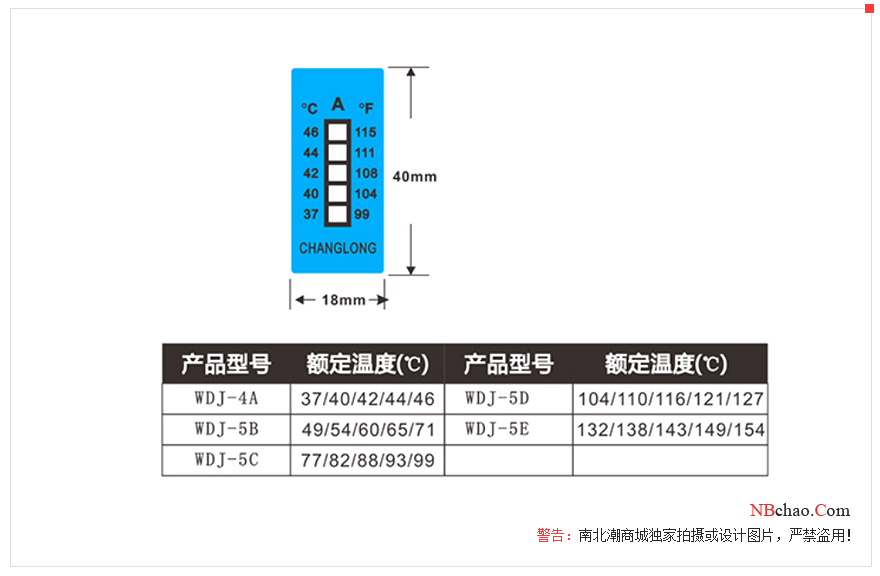

- Specifications and Dimensions
- 18*40mm
- Temperature grid shape
- rectangle
WDJ-5E
Thermometer type temperature measuring paper
The color change method is irreversible, the number of temperature grids is 5, the measurement temperature is 132 ° C | 138 ° C | 143 ° C | 149 ° C | 154 ° C, the specification size is 18 * 40mm, and the shape of the temperature grids is rectangular.
Introduction

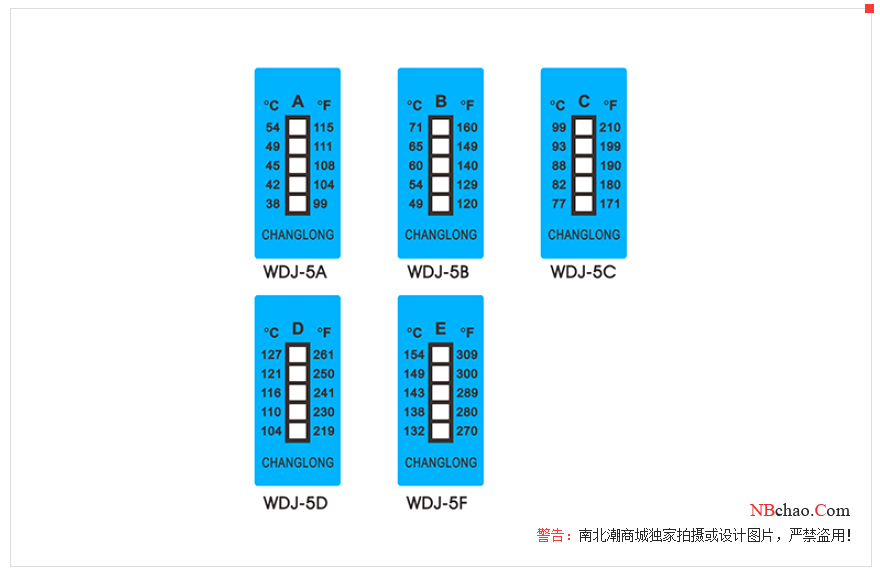

WDJ series temperature measuring paper, strong adhesiveness, easy to paste, irreversible color after over-temperature discoloration, with recording function. It is produced according to the standard of TJ/CL442-2015 "Temporary Technical Conditions for Temperature Sensing Stickers for Railway Passenger Car Wire and Cable" of CHINA Railway Corporation, and has passed the quality inspection of national credible institutions.
FAQ
QHow long does this Thermometric Paper need to be kept warm before it changes color?
A
When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.
