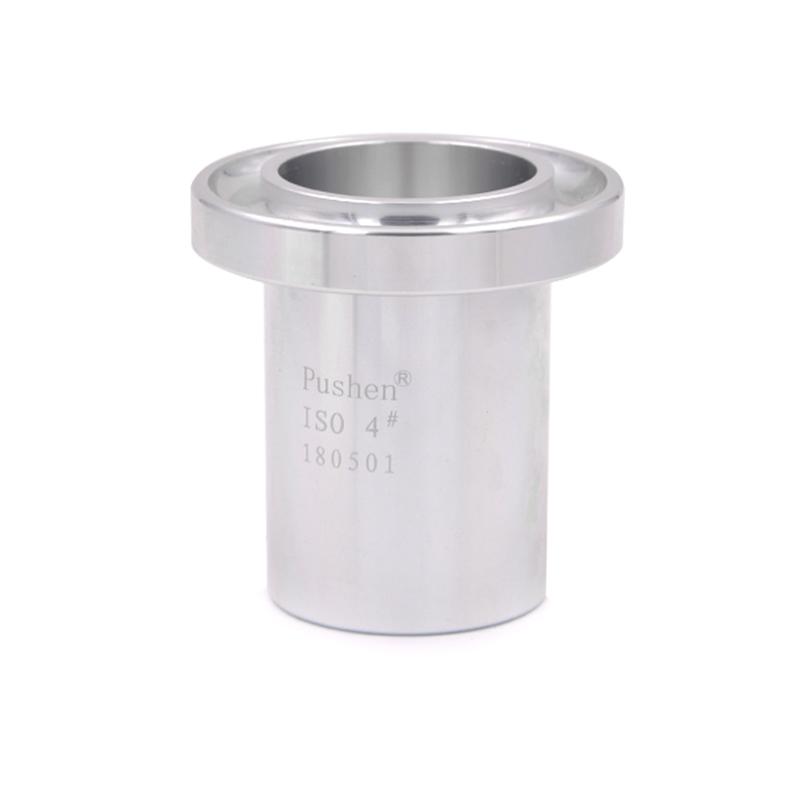

PUSHEN ISO-4 #ISO Flow Cup 4mm/aluminum single cup
SE
ISO-4#
-
Rhopoint RL-A-FC-ISO4 ISO flow cup (4mm) BS EN ISO 2431, ASTM D5125$ 385.00SE -
MODERNER DIN-4 Viscosity Cup Coating viscosity Flow Cup -
MODERNER ISO-4 ISO Flow Cup inks Viscosity Cup -
JINGKELIAN QNB No.4 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 4mm$ 138.00SE -
Ander LND-2 (4 #) No. 4 ISO cup with bracket Viscosity range 35~ 135cst$ 189.00SE
Pushen ISO-4# Flow CupSPEC
Pushen ISO-4# Flow CupDetails

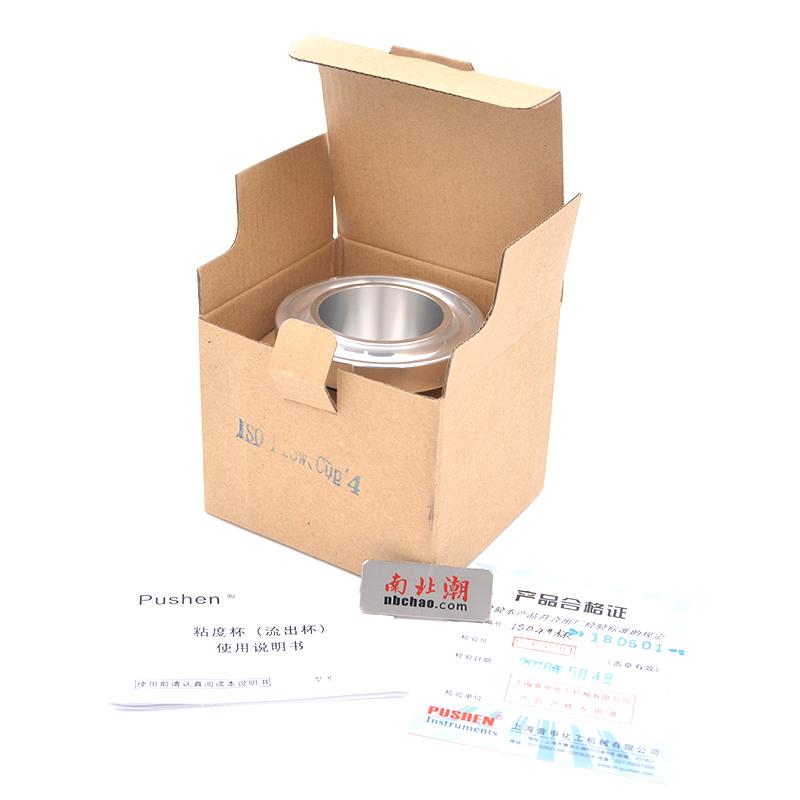

Pushen ISO-4# Flow CupPacking list
- SKU
- NB019422
- Viscosity range
- 35~135cSt
- outflow time
- 30~100s
- Flow hole diameter
- 4mm
- Correction factor
- 1.37
- C value
- 200
- Cup height
- 86mm
- Cup width
- 56mm
- Total height
- 86mm
- Cup body material
- Aluminum anode oxidation
- Filter material
- stainless steel
- Applicable standard
- ASTM D5125,ISO 2431
The ISO outFlow Cup is designed and manufactured according to the relevant provisions of the international standard ISO2431-1993 Determination of outflow time by outFlow Cup for paints and varnishes and the national standard GB/T6753.4-98 Determination of paint outflow time-ISO outFlow Cup method. This outFlow Cup is used to test the outflow time of Newtonian or near-Newtonian liquids.

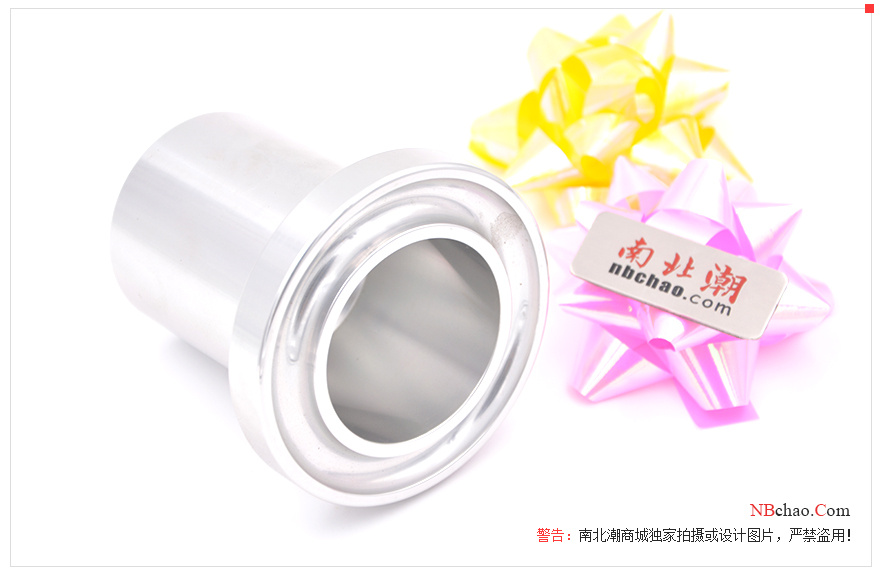

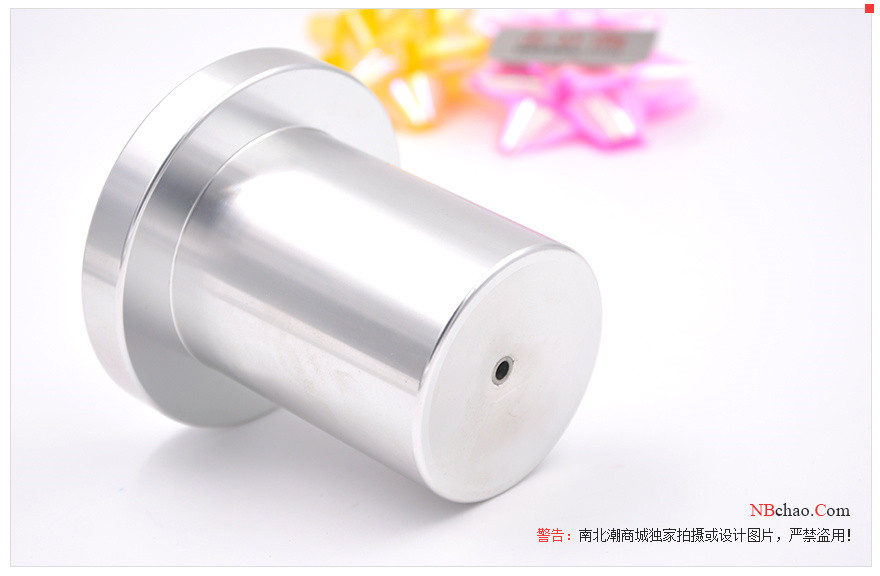

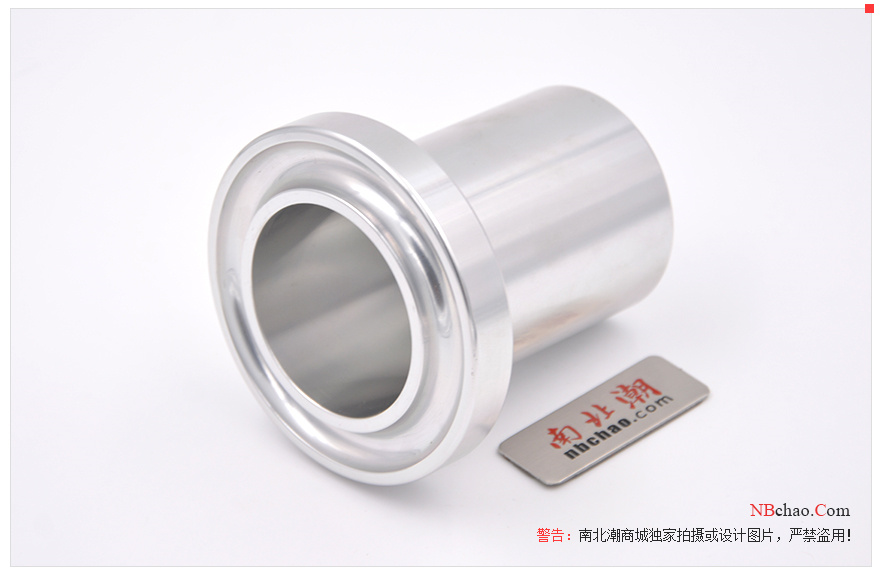

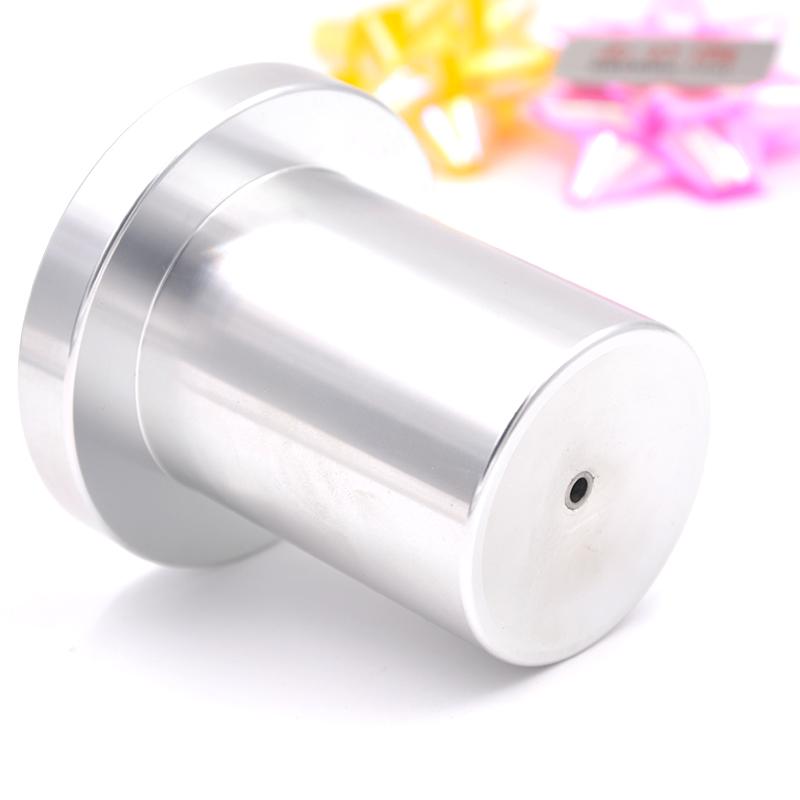

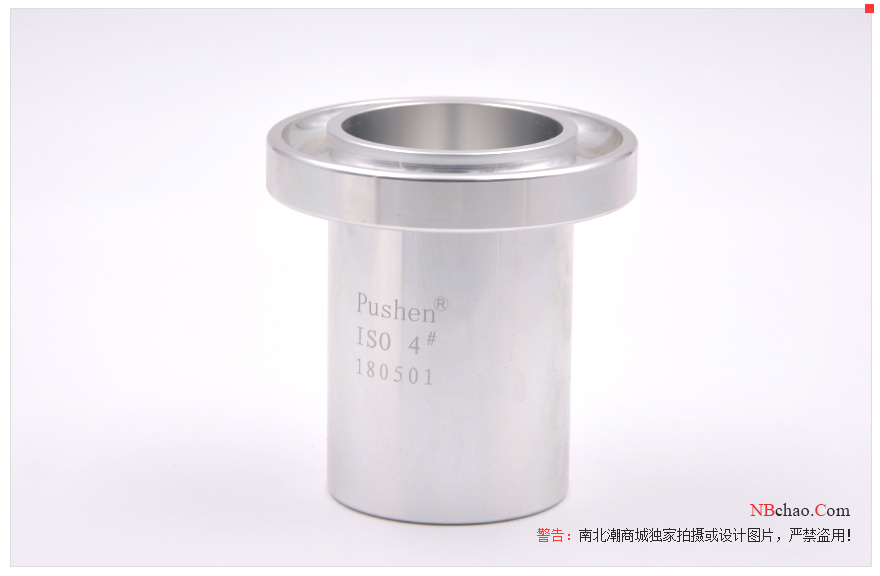

Real shot of ISO outFlow Cup
Equipment and Utensils
1. Stopwatch: Accuracy 0.1 (self-provided)
2. OutFlow Cup holder (optional)
Instructions
1. Before or after measurement, wipe the inner wall repeatedly with a gauze cloth dipped in the solution, twist it into a rope with soft paper, and pull it repeatedly at the outflow hole.
2. Put the outFlow Cup on the bracket and adjust the level of the bracket.
3. Prepare a stopwatch with an accuracy of 0.1 second, and hold the outflow hole with your hand at the same time.
4. Slowly pour the measured liquid with a controlled temperature (according to user requirements) into the outFlow Cup to avoid air bubbles. When the liquid exceeds the mouth of the cup, use a scraper or glass to scrape it flat.
5. Start the stopwatch and quickly release the finger holding the outflow hole, stop the stopwatch when the outflow of liquid is interrupted, and record the outflow time.
calculation method
The measured outflow time is calculated according to the following formula for kinematic viscosity mm/s
| cup number | ISO-3 | ISO-4 | ISO-5 | ISO-6 |
| formula | V=0.443t-200/t | V=1.37t-200/t | V=3.28t-220/t | V=6.90t-570/t |
Where: v=mm²/s
t = outflow time
Cistok = K value × outflow time - (C ÷ outflow time)
Centipoise = centistok x specific gravity
Note: In order to obtain more accurate data, the outflow time can be measured several times and the average value can be calculated.
