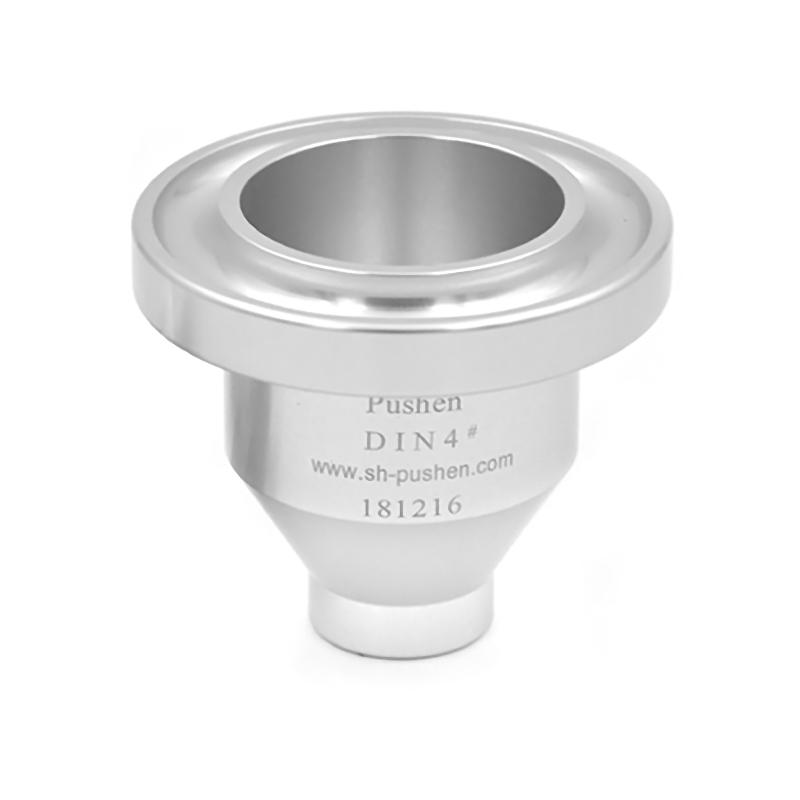

Pushen DIN4 desktop Viscosity Cup

DIN4

DIN Cup

Desktop; aperture 4mm; capacity 100ml; aluminum cup body + stainless steel nozzle; measurement range 96-683cSt; outflow time 20-110 seconds; in line with DIN53211 standard.

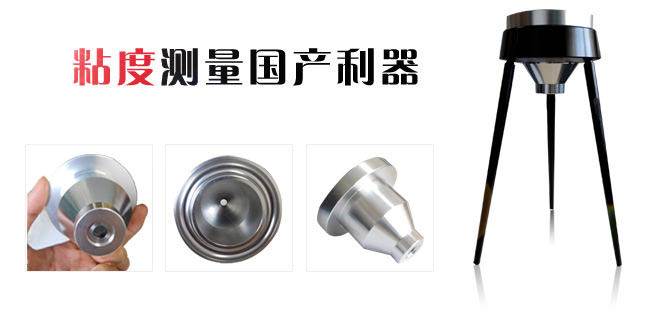

Introduction to DIN Cup

The Pushen DIN cup is a desktop Viscosity Cup, and the test is relatively simple. The production design of this DIN Viscosity Cup is based on the relevant regulations of the German Standardization Committee DIN53211 (Deutsches lnstitut fur Normung), and is used to measure the viscosity of inks, paints, paints, etc. There are four types of Pushen DIN cups : No. 2, No. 4, No. 6, and No. 8. The corresponding measuring apertures are 2 mm, 4 mm, 6 mm, and 8 mm. They are suitable for measuring different viscosity ranges. They are made of stainless steel and have good durability. corrosive.

Desktop DIN cup: Let the liquid flow through the nozzle, usually using this method to measure and grade its viscosity relatively.

Viscosity Definition: The ability of a liquid to resist its tendency to flow is called viscosity. For the coatings industry, viscosity is a critical parameter.

Viscosity unit

The kinematic viscosity value is usually expressed in seconds after the flow is completed, and can also be converted into centistokes (Centistokes) through the viscosity conversion disc.

The unit of kinematic viscosity is stokes, Stokes, when the fluid viscosity is 1P (poise), the kinematic viscosity with a density of 1g/cm3 is 1 Stokes.

cSt is the abbreviation of centistokes, called centistokes, which is one hundredth of 1 Stokes. Centistokes (cSt) is the smallest unit of kinematic viscosity.

Precautions for use

When using Pushen/Pushen No. 4 DIN cup, a stopwatch with relatively high precision is required.

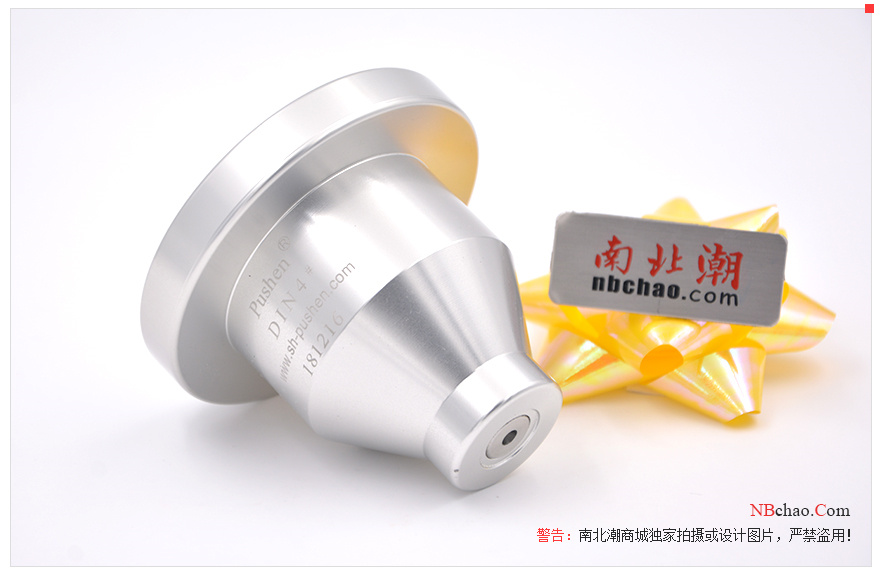

Pictures

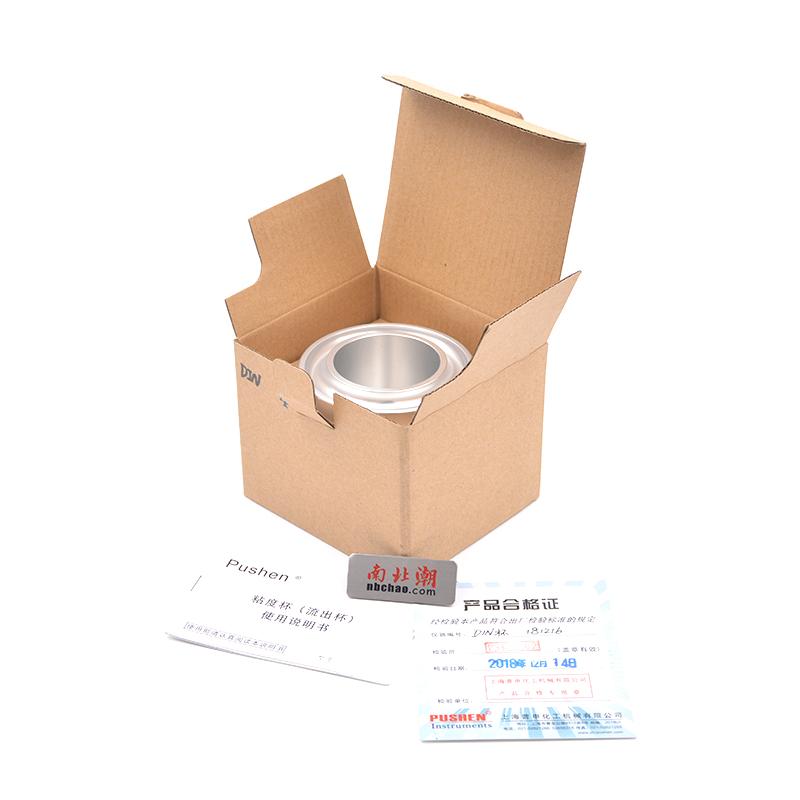

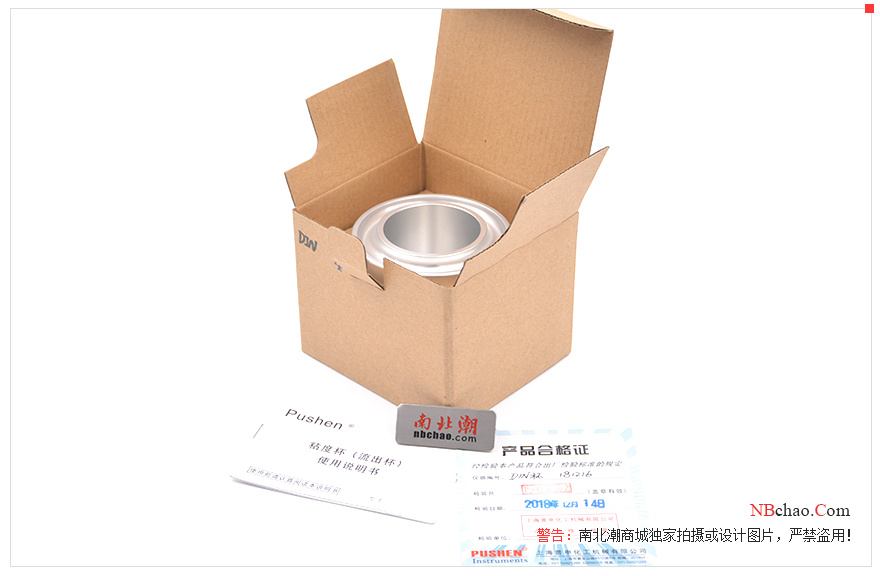

Packing list：Viscosity cup X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
