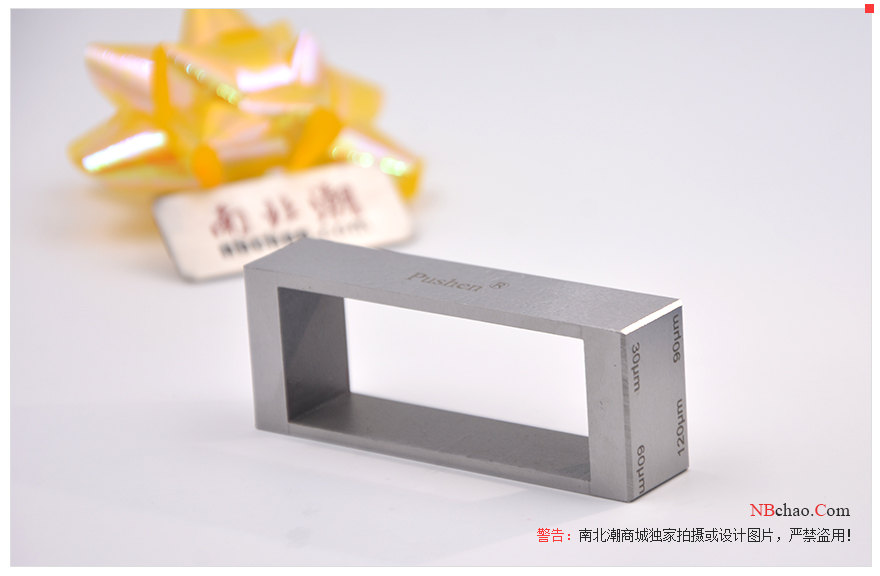

PUSHEN QTG 300-600um Frame Applicator 300/400/500/600μm

QTG 300-600um

Box Applicator

Type: Frame type, wet film thickness 300/400/500/600μm, Spreader width 60mm, accuracy +/- 4μm, material: stainless steel 1Cr17N2.

Introduction

Designed for uniform coating of paints, adhesives and similar products on flat substrates.

The Film Applicator is suitable for low viscosity water-based, acidic and alkaline products.

It can also be used in conjunction with automatic film coating machines.

Standards

ASTMD 823

use

It is used to coat a wet film with a specified thickness to measure the hiding power, color and luster of the sample or to prepare a sample, etc.

Instructions

Place the template on the platform and secure it so that it does not move as the preparer slides over it. According to the required wet film thickness, select the preparer, place it on the short side of the sample, close to parallel or at a specified position, then pour about 5ml of the sample on the front of the preparer, press its two ends with your fingers, Gliding at a constant speed per second, that is, coating into a wet film of required thickness. After use, wash and dry with solvent, and coat the surface with lubricating oil.

Packing list：Box Applicator X1, Instruction Manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
