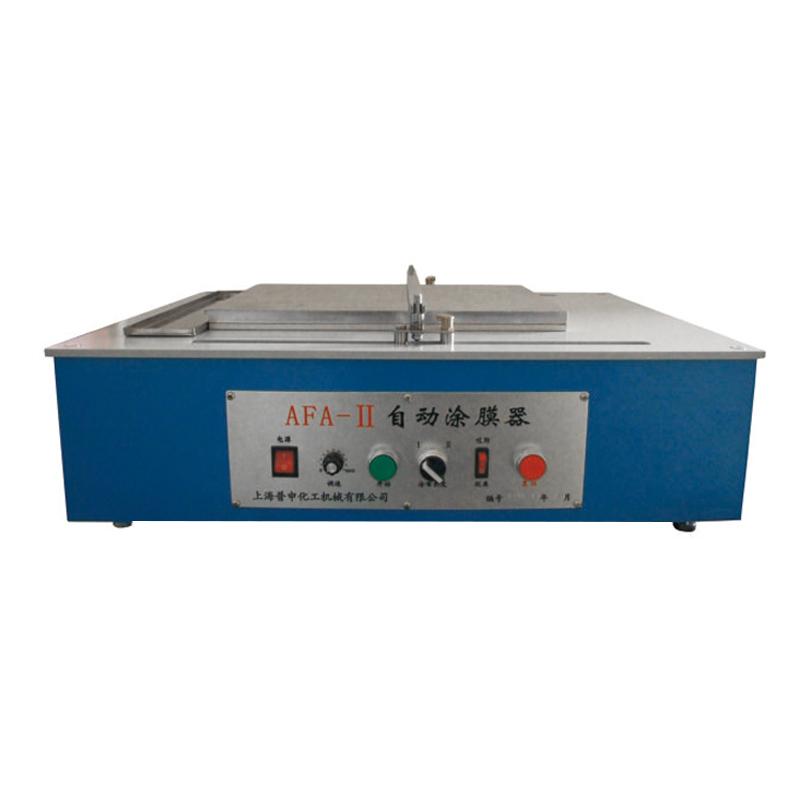

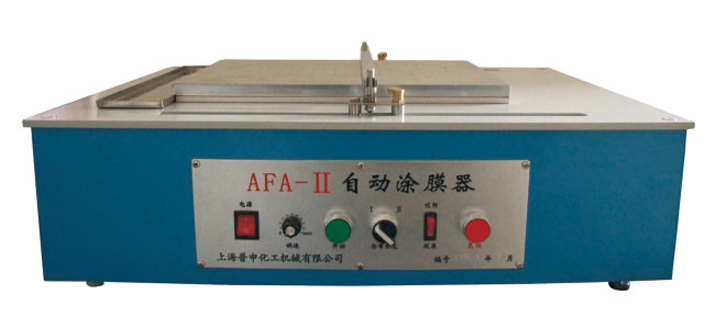

PUSHEN AFA-II automatic Film Applicator with imported vacuum suction cup
The PUSHEN AFA-II automatic Film Applicator can ensure the linear and flat motion of the Film Applicator and reduce manual errors. The AFA-II matching vacuum size is 300x200mm, and the Spreader speed can be stepless between 0 and 10cm/s.
Model：
PS 2540
Similar products
-
China bar Vacuum chuck coater TBJ-A3-XB with imported bar$ 2403.00SE -
TM3200Pro High-accuracy Wire Rod & Drawdown Blade Automatic film Coater with Vacuum Table$ 4113.00SE -
HUINUO TM1200 Wire Bar film Coater with Vacuum Table$ 2713.00SE -
China Vacuum chuck coater TBJ-X2-XB bar + Drawdown blade with imported bar$ 3102.00SE -
HuiNuo TM2200 Drawdown blade Vacuum chuck Lab Film Applicator Flat coater$ 3802.00SE
Pushen PS 2540 Automatic Film ApplicatorSPEC
Pushen PS 2540 Automatic Film ApplicatorDetails
Pushen PS 2540 Automatic Film ApplicatorPacking list
- SKU
- NB019509
- Coating method
- Spreader
- Coating size
- 400*280mm
- Spreader trip
- 230mm/285mm
- Coating speed
- 10~100mm/s
- Vacuum pump configuration
- built-in
- Vacuum Area
- 300*200mm
- Total power consumption
- 350W
- Applicable standard
- ASTM D 823
- Host Power Supply
- 220V 50Hz
- Dimension
- 705*505*270mm
- Machine Weight
- 65Kg
PS 2540
Automatic Film Applicator
Application of automatic Film Applicator
Manual coating can cause irregularities in the film layer due to the difference in speed and pressure acting on the Film Applicator.
The quality of the coating film depends on the shear forces and weight acting on the coater.
The quality of the coating film greatly influences the measurement of coating properties such as scrub resistance, hiding power and gloss.
The automatic applicator guarantees linear and flat motion of the applicator, thus guaranteeing good repeatability and high quality results.
Meets standards
ASTMD 823
Shipping list
Automatic Film Applicator
A coating rod fixture
A push rod for the Film Applicator
One material collection tray
A bottle of lubricating oil for the guide rails
Optional
|
|
|
